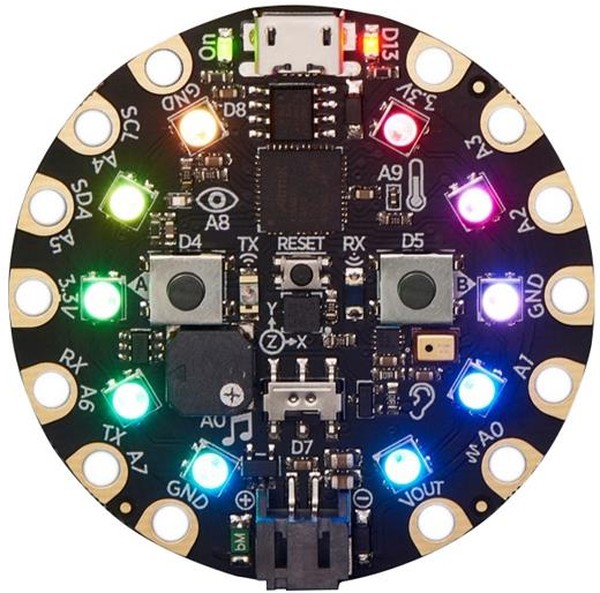

Adafruit Circuit Playground Express

Adafruit Circuit Playground Express

The Circuit Playground Express is the ultimate board for learning electronics and programming. Building on the success of the Circuit Playground Classic, the Express adds more sensors, more features, and even easier programming options. You can start coding with Microsoft MakeCode using block-based or JavaScript programming, then advance to CircuitPython with Python running directly on the board. For full hardware control, you can use the Arduino IDE. With support for three programming methods, the Express offers tremendous value and reusability, making it perfect for beginners and experts alike.
177.45 AED 177.45 AED Tax Included
177.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Its round design features alligator-clip pads for easy connections without soldering or sewing. Power it via USB, a AAA battery pack, or a LiPo battery. With built-in USB support, simply plug it in to program—no special cables or adapters needed.

Specifications

  • 10 x mini NeoPixels (individually addressable RGB LEDs)
  • Motion sensor: LIS3DH triple-axis accelerometer with tap/free-fall detection
  • Temperature sensor: thermistor
  • Light sensor: phototransistor (also acts as color and pulse sensor)
  • Sound sensor: MEMS microphone
  • Mini speaker with class D amplifier (7.5mm magnetic speaker/buzzer)
  • 2 x push buttons (A and B)
  • 1 x slide switch
  • Infrared receiver and transmitter (supports remote codes, proximity sensing, and inter-board messaging)
  • 8 x alligator-clip friendly I/O pads
  • Supports I2C, UART, 8 analog inputs, multiple PWM outputs
  • 7 capacitive touch inputs + 1 true analog output
  • Green "ON" LED and red "#13" LED
  • Reset button
  • Processor: ATSAMD21 ARM Cortex M0, 3.3V, 48MHz
  • 2MB SPI Flash (for CircuitPython code and libraries)
  • MicroUSB port for programming and debugging
  • USB can act as serial port, keyboard, mouse, joystick, or MIDI device
