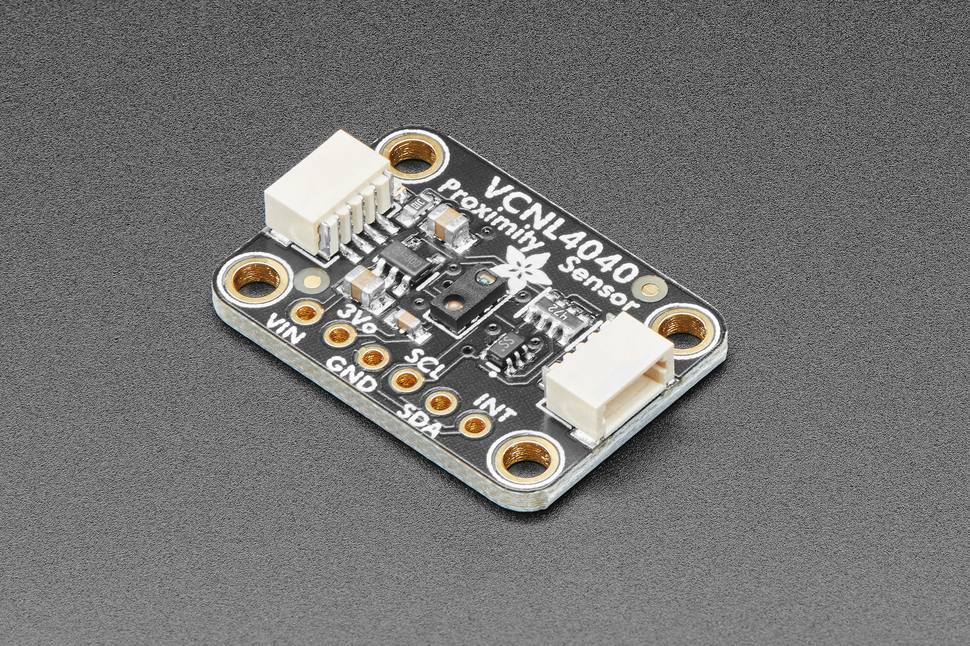

The sensor communicates via I2C, requiring only two wires plus power and ground, and features STEMMA QT connectors for quick, solder-free connections. Adjustable integration times allow you to fine-tune sensitivity for various lighting conditions, making it ideal for proximity detection, light measurement, and interactive electronics projects.
Specifications
- Proximity Detection Range: 0–200 mm
- Ambient Light Range: 0.0125 – 6553 lux
- Integration Time Options: 80 ms to 640 ms (affects sensitivity and max lux range)
- Communication: I2C interface
- Logic Level: Compatible with 3.3V and 5V systems
- STEMMA QT / Qwiic connectors for solder-free wiring
Features
- Compact two-in-one sensor for proximity and light measurement
- Breakout board with onboard support circuitry
- Adjustable integration time for customizable sensitivity
- Simple I2C communication with easy two-wire interface
- Ideal for robotics, automation, and interactive electronics projects
The sensor communicates via I2C, requiring only two wires plus power and ground, and features STEMMA QT connectors for quick, solder-free connections. Adjustable integration times allow you to fine-tune sensitivity for various lighting conditions, making it ideal for proximity detection, light measurement, and interactive electronics projects.
Specifications
- Proximity Detection Range: 0–200 mm
- Ambient Light Range: 0.0125 – 6553 lux
- Integration Time Options: 80 ms to 640 ms (affects sensitivity and max lux range)
- Communication: I2C interface
- Logic Level: Compatible with 3.3V and 5V systems
- STEMMA QT / Qwiic connectors for solder-free wiring
Features
- Compact two-in-one sensor for proximity and light measurement
- Breakout board with onboard support circuitry
- Adjustable integration time for customizable sensitivity
- Simple I2C communication with easy two-wire interface
- Ideal for robotics, automation, and interactive electronics projects
