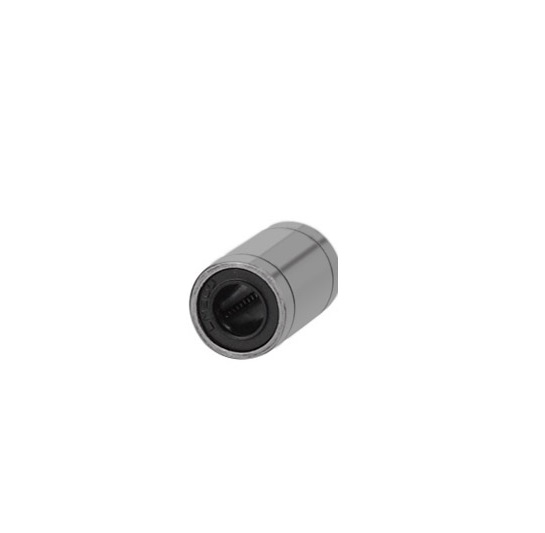

3D Printer Accessories Linear Bearings LM8UU (8x15x24)

3D Printer Accessories Linear Bearings LM8UU (8x15x24)

Enhance the precision and smooth operation of your 3D printer with the LM8UU Linear Bearings. These meticulously engineered bearings are designed to optimize the movement within your printer, ensuring accuracy and reliability in every print job.

Package Includes

  • 1 x LM8UU Linear Bearing

5.00 AED 5.00 AED Tax Included
5.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Multi-Ball Row Design: The LM8UU Linear Bearings boast a design with four ball rows, providing enhanced load-bearing capacity and stability. This design contributes to durability and longevity.
  • Optimal Dimensions: Inscribed circle diameter (Dr) of 8mm, outer diameter (D) of 15mm, and length (L) of 24mm ensure compatibility with various 3D printers for a seamless fit.
  • Tolerance Precision: Strict adherence to tolerance standards ensures consistent, reliable performance in printer operations.
  • Sturdy Construction: Built with high-quality materials, these bearings resist wear and tear for long-term smooth motion of printer components.

Technical Specifications

  • Model: LM8UU
  • Number of Ball Rows: 4
  • Inscribed Circle Diameter (Dr): 8mm
  • Outer Diameter (D): 15mm
  • Length (L): 24mm
  • Weight: 17.5g
  • B Tolerance: 0–0.2
  • W Tolerance: 0–0.2
  • D1: 14.3mm
  • Dr Tolerance: 0–0.009mm
  • D Tolerance: 0–0.11mm
