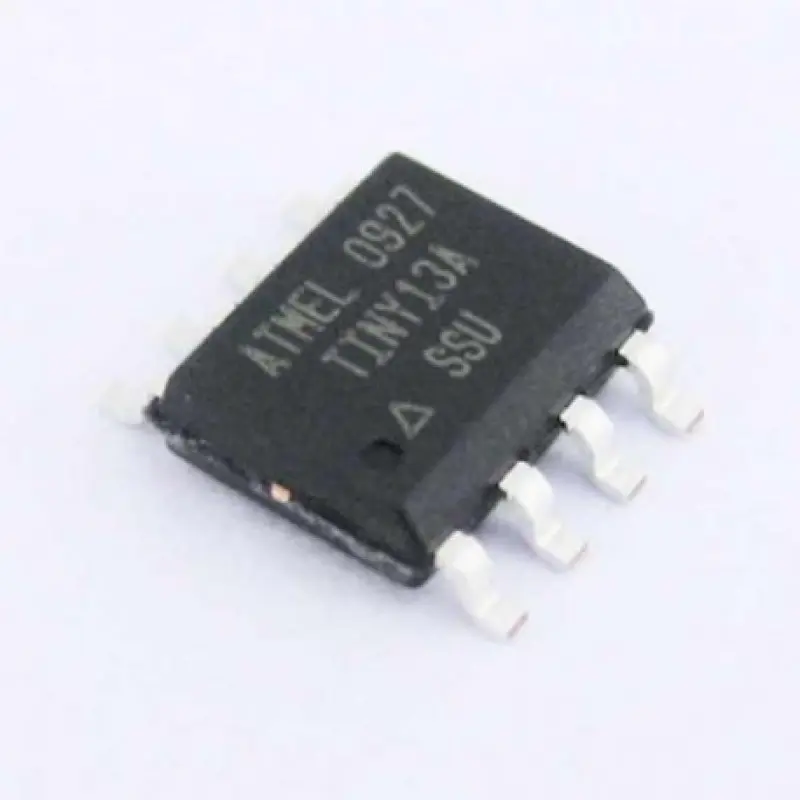

Microcontroller SMD 8-Bit SOP8 ATTINY13A-SSU

Microcontroller SMD 8-Bit SOP8 ATTINY13A-SSU

The ATtiny13A is a high-performance, low-power 8-bit AVR® RISC-based microcontroller by Microchip. Designed for efficiency and compact embedded applications, it features 1KB of Flash memory, an integrated ADC, and operates up to 20 MHz. Ideal for space-constrained, power-sensitive projects.

Package Includes:

  • 1 x ATtiny13A Microcontroller Chip

8.00 AED 8.00 AED Tax Included
8.00 AED Tax Included

Not Available For Sale

This combination does not exist.

ATTiny
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High Performance, Low Power AVR® 8-bit Microcontroller
  • Advanced RISC Architecture:
    • 120 powerful instructions (mostly single clock cycle execution)
    • 32 x 8 general-purpose working registers
    • Fully static operation
    • Up to 20 MIPS throughput at 20 MHz
  • High Endurance Non-volatile Memory:
    • 1KB In-System Self-programmable Flash
    • 64 Bytes EEPROM
    • 64 Bytes Internal SRAM
    • Write/Erase Cycles: 10,000 (Flash) / 100,000 (EEPROM)
    • Data Retention: 20 Years @ 85°C / 100 Years @ 25°C
    • Self-Programming Flash and EEPROM Security Locks
  • Peripheral Features:
    • One 8-bit Timer/Counter with Prescaler and Two PWM Channels
    • 4-channel 10-bit ADC with Internal Voltage Reference
    • Programmable Watchdog Timer with On-chip Oscillator
    • On-chip Analog Comparator
  • Microcontroller Special Features:
    • debugWIRE On-chip Debug System
    • In-System Programmable via SPI
    • External and Internal Interrupt Sources
    • Low Power Idle, ADC Noise Reduction, and Power-down Modes
    • Enhanced Power-on Reset and Programmable Brown-out Detection
    • Internal Calibrated Oscillator
  • I/O and Package Options:
    • 8-pin PDIP/SOIC/SOIJ: 6 Programmable I/O Lines
    • 10-pad VDFN: 6 Programmable I/O Lines
    • 20-pad WQFN: 6 Programmable I/O Lines
  • Operating Voltage: 1.8V – 5.5V
  • Speed Grades:
    • 0–4 MHz @ 1.8–5.5V
    • 0–10 MHz @ 2.7–5.5V
    • 0–20 MHz @ 4.5–5.5V
  • Industrial Temperature Range
  • Low Power Consumption:
    • Active Mode: 190 µA @ 1.8V and 1 MHz
    • Idle Mode: 24 µA @ 1.8V and 1 MHz
