Battery Charging Balancer for Lithium ion 18650 8.4 V-9V 10A 2S

Battery Charging Balancer for Lithium ion 18650 8.4 V-9V 10A 2S

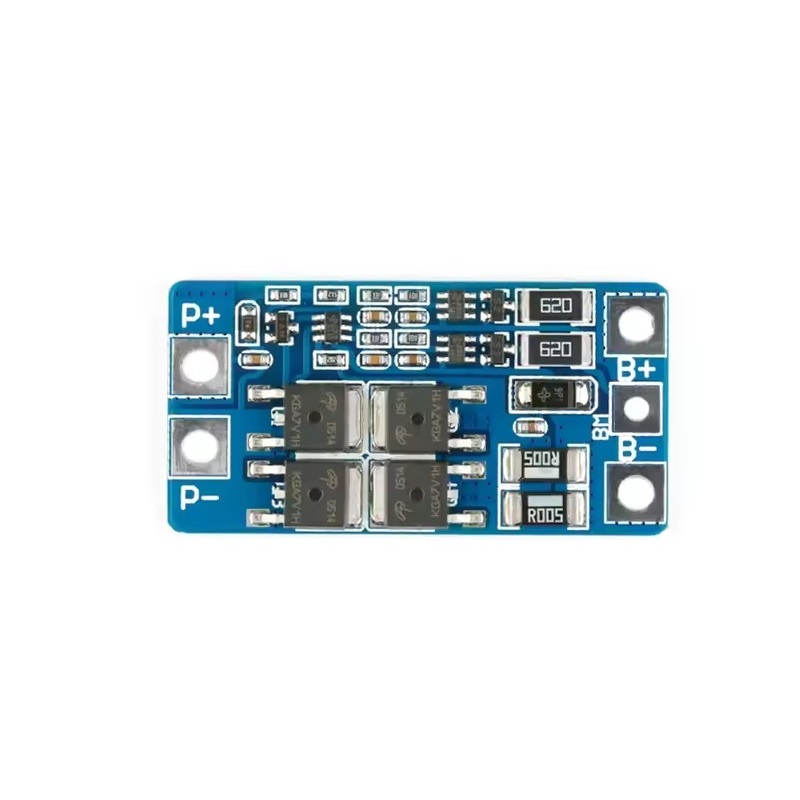

The HX-2S-JH20 is a protection board designed for lithium batteries with a charging voltage of 8.4V-9V and a current capacity of 10A. This board offers multiple protective functions, including overcharge, over-discharge, overcurrent, and short circuit protection. It features a balance function to ensure each battery cell is fully charged simultaneously, enhancing safety and prolonging battery life.

Package Includes

  • 1 x HX-2S-JH20 Protection Board

14.50 AED 14.50 AED Tax Included
14.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Overcharge Protection: Prevents battery cells from overcharging, protecting against potential hazards.
  • Over-discharge Protection: Safeguards battery cells from excessive discharge, preventing damage.
  • Overcurrent Protection: Limits the current to prevent overheating and potential fires.
  • Short Circuit Protection: Automatically interrupts the circuit in case of a short circuit to avoid damage.
  • Balance Function: Ensures each battery cell is charged evenly, improving efficiency and safety.
  • Enhanced Safety: Helps to avoid explosion, fire, and damage to your battery pack.
  • Prolongs Battery Life: Designed to extend the service life of your lithium batteries.

Specifications

  • Model: HX-2S-JH20
  • Overcharging Range: 4.25-4.35V ± 0.05V
  • Over Voltage Range: 2.5-3.0V ± 0.05V
  • Size: 46.7 x 23 x 3.15 mm
  • Maximum Working Current: 10A
  • Maximum Instantaneous Current: 20A
  • Static Current: < 10µA
  • Working Temperature: -40°C to +50°C
  • Storage Conditions: -40°C to +80°C
  • Effective Life: > 50,000 hours
  • Resistance: < 300mΩ
  • Short Circuit Protection: Protection and restoration must charge
  • Charging Voltage: 8.4V-9V

Pinout

Pin Description
B+ Battery anode
B- Connect battery negative terminal
MMB Connect battery 1 to battery 2
P+ Charging/discharge correct poles (shared end)
P- Charging/discharge terminal negative (shared end)
