LCD TFT 2.8 Inch 240 x 320 Module ILI9341 With Touch

LCD TFT 2.8 Inch 240 x 320 Module ILI9341 With Touch

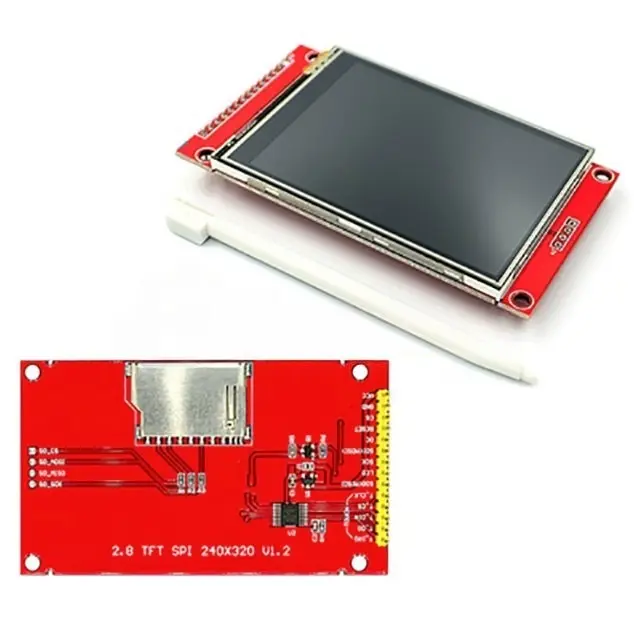

This 2.8-inch TFT LCD Touch Panel Module is a compact and full-color display designed for use with microcontroller platforms such as Arduino and STM32. Featuring an SPI serial interface and the ILI9341 driver IC, this screen delivers a resolution of 240 x 320 pixels in rich 65K/262K colors. Its resistive touch panel allows for direct interaction using the included stylus, making it perfect for DIY interface displays, instrumentation, and portable devices.

Package Includes:

  • 1 x 2.8" TFT LCD Display Touch Panel Module (ILI9341 Driver)
  • 1 x Touch Pen

99.00 AED 99.00 AED Tax Included
99.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • 2.8" TFT Display: Compact and colorful screen with touchscreen capabilities.
  • Touch Support: Resistive touch interface with included stylus for precision control.
  • SPI Interface: Requires only 4 IO pins for communication, ideal for resource-limited MCUs.
  • Wide Logic Compatibility: Operates with both 3.3V and 5V logic, suitable for various MCUs.
  • High Resolution: 240 RGB × 320 pixels with vibrant color depth of up to 262K.
  • Backlight: Bright white LED for high visibility in various lighting conditions.

Specifications:

Parameter Details
Type Touch Panel TFT LCD
Screen Size 2.8 inches
Display Area 46 mm (W) x 65 mm (H)
Module Size 86 mm x 50 mm
Driver Element a-Si TFT Active Matrix
Pixel Arrangement RGB Vertical Stripe
Driver IC ILI9341
Resolution 240 RGB x 320 dots
Color Depth 262K / 65K colors
Backlight White LED
Voltage Compatibility 3.3V / 5V Logic
Interface SPI Serial
Minimum IOs Required 4 IO Pins

Applications:

  • Arduino GUI and touch screen interfaces
  • Embedded systems and control panels
  • DIY electronics and robotics projects
  • Portable handheld devices
  • Graphical user interface testing
