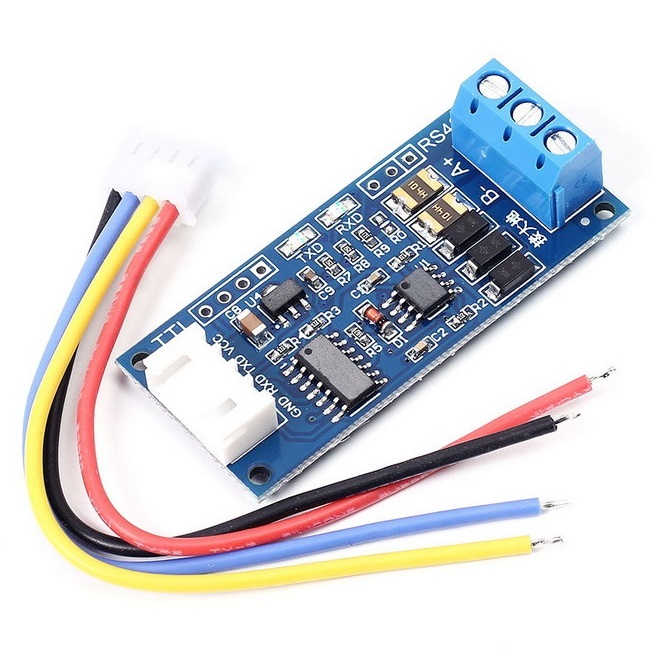

Serial Converter RS485 Levels To TTL Module

Serial Converter RS485 Levels To TTL Module

RS485, also known as EIA-485, is a physical layer standard in the OSI model. It defines only the physical characteristics of the communication interface, without prescribing message format or encoding. It serves as the foundation for popular industrial communication protocols like MODBUS and DMX.

Package Includes:

  • 1 x Serial Converter RS232 to TTL MAX3232 Breakout Module

14.00 AED 14.00 AED Tax Included
14.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



RS485 is renowned for its robustness, reliability, and ease of use. This differential communication system enables data transmission at moderate speeds over long distances, making it ideal for noisy industrial environments.

Features:

  • Supports RS485 / EIA-485 standard.
  • Designed for industrial communication standards such as MODBUS and DMX.
  • Excellent EMC (Electromagnetic Compatibility) and EMI (Electromagnetic Interference) performance.
  • Differential signal transmission helps minimize noise and interference.
  • Supports data rates up to 35 Mbit/s (short distance) and 100 kbit/s (long distance).
  • Multi-point communication: supports up to 40 devices on a single bus.
  • Half-duplex mode operation (send or receive at one time).
  • Termination resistor option (short R0) for long-distance transmission.
  • Signal indicators for RXD and TXD.
  • Lightning protection and strong anti-jamming capability.

Specifications:

Parameter Value
Communication Standard RS485 / EIA-485
Voltage Range 3.0V to 30V (recommended usage ≤ 30V, min ≥ 2.8V)
Signal Compatibility 3.3V and 5.0V systems
Operating Temperature -40°C to +85°C
Data Rate 300 bps to 19200 bps typical
Transmission Distance Up to 1200 meters at 100 kbit/s
Cable Type Twisted pair
Max Bus Devices Up to 40 nodes
Connector Spacing 2.54mm pitch (typical header)

Applications:

  • Industrial automation
  • Building automation systems
  • 3D printers and CNC controllers
  • Remote sensor networks
  • RS232 to RS485 TTL conversion





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
