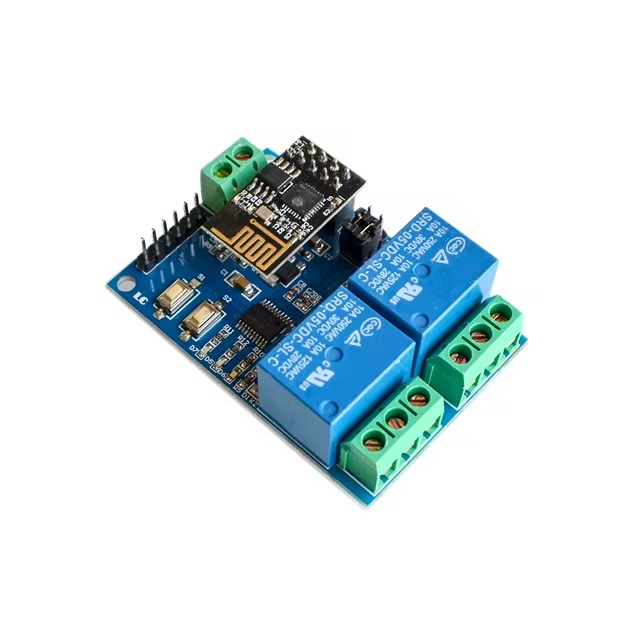

ESP8266 ESP-01 WIFI Wireless with 2CH Relay Module Board

ESP8266 ESP-01 WIFI Wireless with 2CH Relay Module Board

The Dual WiFi Relay Module is an advanced control solution built on the ESP-01 WiFi module and powered by the STM8S103 high-performance microprocessor. It enables seamless wireless control of a dual-channel relay via a mobile application, requiring only minimal setup within a local area network (LAN). Ideal for home automation, industrial control, and other IoT applications.

Package Contents

  • 1 x Dual-channel WiFi Relay Module

49.00 AED 49.00 AED Tax Included
49.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Wifi Relay
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Integrated Components:
    • Equipped with ESP-01 WiFi module for reliable wireless communication.
    • Powered by STM8S103 microcontroller for stable and efficient operation.
  • Dual Operating Modes:
    • Mode 1: Direct phone-to-module connection (AP mode).
    • Mode 2: Router-based connection (STA mode) for extended range.
    • Can also act as a USB relay when ESP-01 is removed.
  • Impressive Transmission Distance:
    • Mode 1: Up to 100 meters in open space.
    • Mode 2: Range depends on router signal strength.
  • Smart Configuration: SmartConfig technology for easy setup and credential saving.
  • Durable Relay Design: 5V 10A 250V AC (or 10A 30V DC) with diode protection and 100k+ cycles.
  • User-Friendly Board: Status indicators, jumpers, UART & SWIM interfaces for development.

Specifications

  • Model: ESP8266 (ESP-01)
  • Channels: 2 (Dual-channel)
  • Board Size: 59 x 40 mm
  • Weight: Approx. 36g
  • Power Supply: 5V input

Pinout

ESP8266 WiFi 2 Channel Relay Module Diagram

Pin/Port Description
IN+, IN- 5V power input
5V, GND, SWIM, NRST STM8S program download port
TX, RX UART serial communication
Button S1 Switch between Mode 1 & Mode 2
Button S2 Restore factory settings
LED D7 (Red) Mode 1 indicator
LED D5 (Blue) Mode 2 indicator
LED D6 (Green) Working condition (off / 0.5s / 2s flash / solid)
LED D28 & D4 (Red) Relay ON indicator lights
2 Jumper Caps RX ↔ RX1 and TX ↔ TX1 (normal use), debugging (top position)
COM1, COM2 Common relay terminals
NO1, NO2 Normally open terminals
NC1, NC2 Normally closed terminals

Relay Control Instructions (HEX)

  • Turn ON Relay 1: A0 01 01 A2
  • Turn OFF Relay 1: A0 01 00 A1
  • Turn ON Relay 2: A0 02 01 A3
  • Turn OFF Relay 2: A0 02 00 A2

Setup Requirements

  • 5V/1A Power Adapter
  • ESP Touch-Demo App (WiFi configuration)
  • EasyTCP-20 App (relay control)

Setup Steps

  1. Connect Power: IN+ to +5V, IN- to GND.
  2. WiFi Setup (Mode 2): Use "ESP Touch-Demo" to enter WiFi SSID and password.
  3. Relay Control: Use "EasyTCP-20" to send HEX commands.

Operating Modes

Mode 1: Direct AP Connection

  1. Insert ESP-01 and power the module. Green LED blinks every 2 seconds after ~4 seconds.
  2. Connect phone to ESP-01 hotspot.
  3. Open "EasyTCP-20", click "CONNECT", then send HEX commands to toggle relays.

Mode 2: Router-Based Communication

  1. Insert ESP-01, power the module, and press S1. Blue LED lights up and starts 0.5s blinking.
  2. Connect phone to router and run "ESP Touch-Demo". Enter WiFi password and confirm.
  3. App shows IP address (e.g., 192.168.0.189) when configured.
  4. Open "EasyTCP-20", enter IP, click "CONNECT", then send HEX commands.

Additional Notes

  • First-time WiFi setup takes ~1 minute; reconnection ~20 seconds.
  • Press S2 or power cycle to reset WiFi settings.
  • If the router signal is weak, the green LED goes off and reconnects automatically.
  • TCP disconnects after 6 minutes of inactivity. Reconnect via "CONNECT" button.
  • Only when the green LED blinks every 2s or is steady can the buttons be used.
