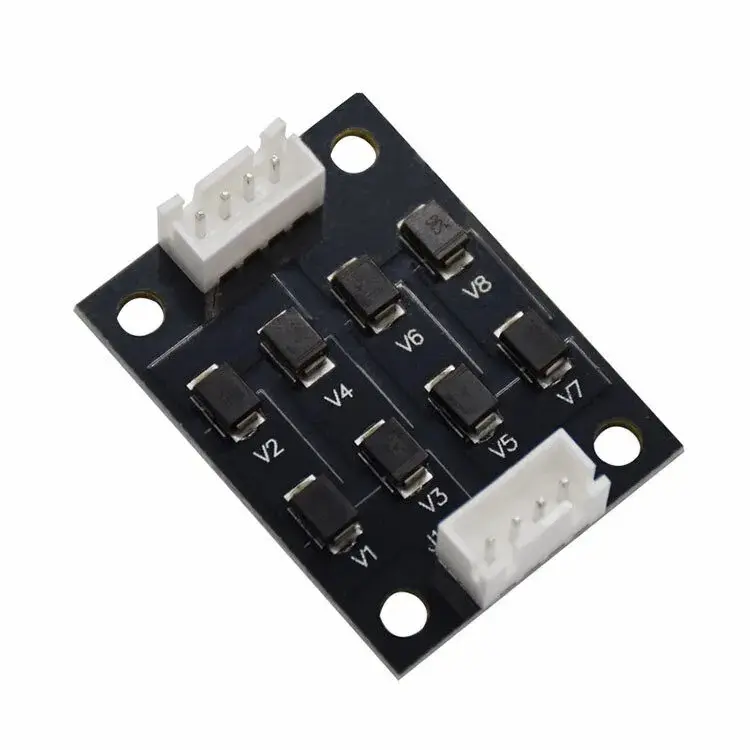

Stepper Motor Driver Filter For A4988 DRV8825
When using stepper motors with drivers such as the A4988 or DRV8825, subharmonic oscillations may occur, particularly in 3D printing and CNC applications. These oscillations can create unwanted vibration patterns on the final product, impacting print quality and surface smoothness.
Package Includes:
- 1 x Stepper Motor Driver Filter (for A4988/DRV8825)
- 1 x Dupont Cable (115mm)
This Stepper Motor Driver Filter is designed to suppress such vibrations, offering smoother motor movement and better performance. It has been optimized specifically for A4988 and DRV8825 drivers, but it can also be used with other similar stepper driver modules.
Features:
- Oscillation Suppression: Eliminates subharmonic oscillations and vibration stripes for better quality output.
- High Compatibility: Works seamlessly with A4988 and DRV8825 stepper motor drivers.
- Compact Design: Small 40mm x 30mm size for easy installation.
- Simple Wiring: Includes a 115mm Dupont cable for quick and straightforward connection.
Specifications:
| Parameter | Details |
|---|---|
| Filter Size | 40 x 30 mm |
| Cable Length | 115 mm (Dupont cable) |
| Compatibility | A4988, DRV8825, and similar stepper drivers |
| Application | 3D printers, CNC machines, and motion control systems |
