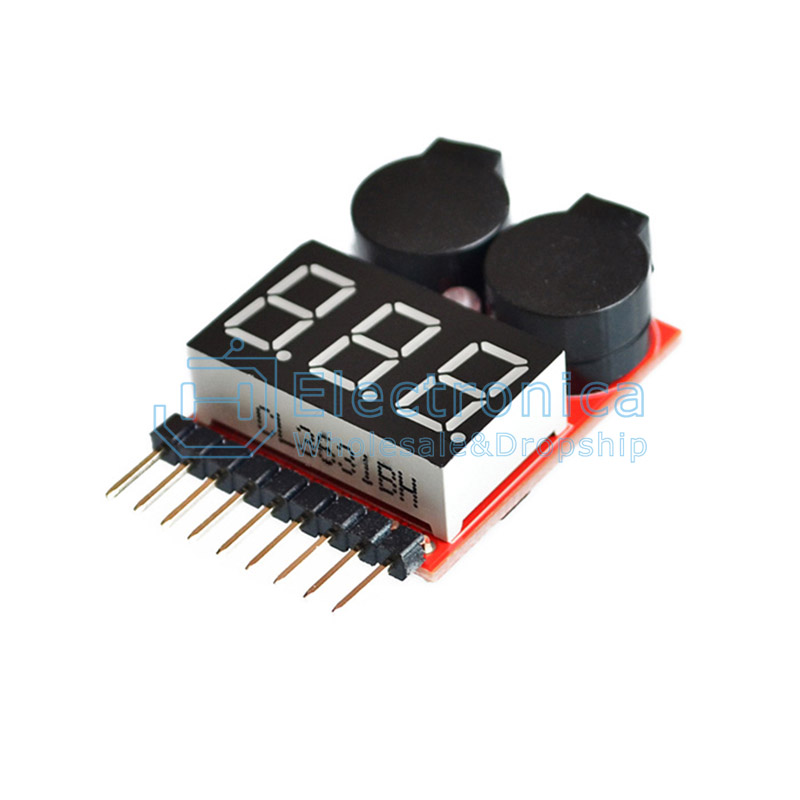

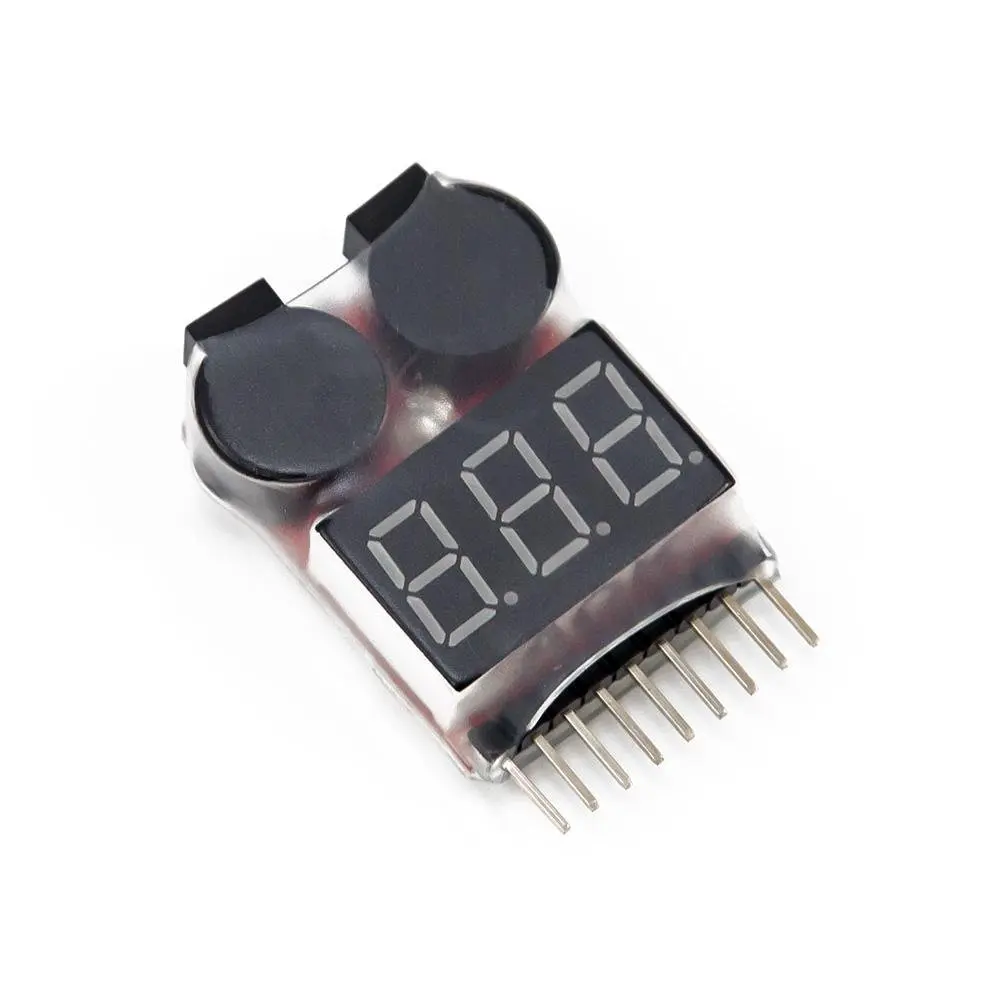

Digital Voltmeter With Low Voltage Buzzer Alarm LED Indicator For Lipo Battery
The 1-8S Low Voltage Buzzer Alarm is a compact, highly efficient voltage indicator and alarm designed for LiPo, Li-ion, LiMn, and Li-Fe battery packs. It’s an essential tool for RC enthusiasts, ensuring your batteries stay within a safe voltage range to prevent over-discharge and potential damage. This 2-in-1 device features both a digital voltage checker and a low-voltage alarm, making it perfect for RC helicopters, quadcopters, and high-speed racing drones. With its clear LED display and loud buzzer, you’ll receive real-time updates and immediate alerts when the voltage drops below the set threshold. The device supports 1-8S batteries and offers precise voltage detection with a range of 0.5V to 36V. It also allows you to set a low voltage alarm value, ensuring you can customize it according to your battery’s needs.
Package Includes:
- 1 x Digital Voltmeter with Low Voltage Buzzer Alarm and LED Indicator for LiPo Battery
Features:
- 2-in-1 Functionality: Combines a digital voltage checker and low voltage alarm in one compact device.
- Wide Compatibility: Works with 1-8S LiPo, Li-ion, LiMn, and Li-Fe batteries.
- High Precision: Voltage detection precision of ±0.01V.
- LED Display: Clear and easy-to-read unit and total voltage readings.
- Loud Buzzer Alarm: Alerts you immediately when voltage falls below the set threshold.
- Customizable Alarm: Set low voltage alarm value between 2.7V and 3.8V.
- Compact and Lightweight: Easy to attach and carry without adding extra weight to your RC model.
Specifications:
- Product Name: Low Voltage Buzzer Alarm
- Supported Battery Types: 1-8S LiPo, Li-ion, LiMn, Li-Fe
- Unit Voltage Display Range: 0.5V ~ 4.5V
- Total Voltage Display Range: 0.5V ~ 36V
- Voltage Detection Precision: ±0.01V
- 1S Test Mode Voltage Range: 3.7V ~ 30V
- Low Voltage Alarm Mode: For 2-8S batteries
- Alarm Set Value Range: 2.7V ~ 3.8V
- Size: 40mm x 25mm x 11mm
Pinout of the Module:
| Pin | Description |
|---|---|
| Positive (+) Pin | Connects to the positive terminal of the battery balance lead. |
| Negative (-) Pin | Connects to the negative terminal of the battery balance lead. |
| Balance Lead Ports | Allows connection to individual cell voltage taps from 1S to 8S for accurate monitoring. |
Features:
- 2-in-1 Functionality: Combines a digital voltage checker and low voltage alarm in one compact device.
- Wide Compatibility: Works with 1-8S LiPo, Li-ion, LiMn, and Li-Fe batteries.
- High Precision: Voltage detection precision of ±0.01V.
- LED Display: Clear and easy-to-read unit and total voltage readings.
- Loud Buzzer Alarm: Alerts you immediately when voltage falls below the set threshold.
- Customizable Alarm: Set low voltage alarm value between 2.7V and 3.8V.
- Compact and Lightweight: Easy to attach and carry without adding extra weight to your RC model.
Specifications:
- Product Name: Low Voltage Buzzer Alarm
- Supported Battery Types: 1-8S LiPo, Li-ion, LiMn, Li-Fe
- Unit Voltage Display Range: 0.5V ~ 4.5V
- Total Voltage Display Range: 0.5V ~ 36V
- Voltage Detection Precision: ±0.01V
- 1S Test Mode Voltage Range: 3.7V ~ 30V
- Low Voltage Alarm Mode: For 2-8S batteries
- Alarm Set Value Range: 2.7V ~ 3.8V
- Size: 40mm x 25mm x 11mm
Pinout of the Module:
| Pin | Description |
|---|---|
| Positive (+) Pin | Connects to the positive terminal of the battery balance lead. |
| Negative (-) Pin | Connects to the negative terminal of the battery balance lead. |
| Balance Lead Ports | Allows connection to individual cell voltage taps from 1S to 8S for accurate monitoring. |
