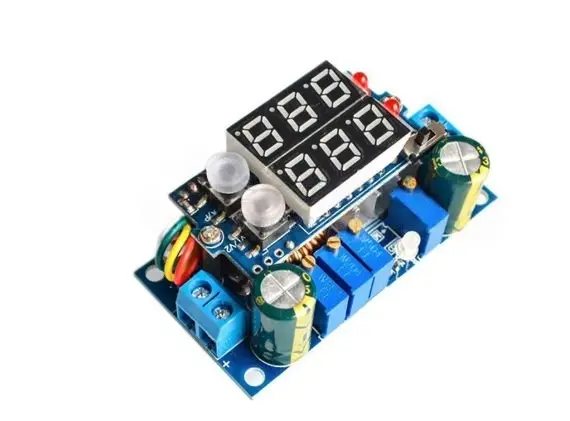

DC-DC Step-Down Buck Solar Panel MPPT Controller 5A Module

DC-DC Step-Down Buck Solar Panel MPPT Controller 5A Module

The DC-DC Step-Down Buck Solar Panel MPPT Controller 5A Module offers versatile voltage regulation capabilities, making it an excellent choice for various applications. This module provides efficient power conversion with input voltage of 6~36 V and an output voltage of 1.25~32 V continuously adjustable. Additionally, it features built-in short-circuit protection and over-temperature protection for added safety and reliability.

Package Includes:

  • 1 x Step-down Module

70.00 AED 70.00 AED Tax Included
70.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Solar Panel
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Type: Non-isolated buck module (BUCK)
  • Input voltage range: 6~36 V
  • Output voltage range: 1.25~32 V (continuously adjustable, default output is 5V)
  • MPPT voltage setting range: 6~36 V
  • Output current range: 0.05~5A (default output current is 3A)
  • Turn lights output range: 0.01~5A (default turn lamp current is 0.3A, slight variations possible due to parts parameter error)
  • Operating temperature range: -40℃ to +85℃
  • Operating frequency: 180 kHz
  • Conversion efficiency: Up to 95% (varies with input/output voltage, current, and pressure-related factors)
  • Short circuit protection: Yes
  • Over-temperature protection: Yes (auto shutoff after over-temp)
  • Input reverse polarity protection: None (recommend diode if necessary)
  • Output anti-reverse protection: None (use diode to prevent reverse current)
  • Installation: Requires 4 pcs 3mm screws (not included)
  • Connection: IN (input), OUT (output)
  • Multifunction double display: Shows input voltage, output voltage, output current, and output power
  • Charging indicator: Red when charging, green when fully charged
  • Module dimensions: 6 x 3.1 x 2.5 cm / 2.36 x 1.22 x 0.98 inches (without meter)

Applications:

  1. Supports high-power LED applications.
  2. Provides power supply for electronic devices.
  3. Ideal for monitoring battery state of charge.
  4. Can be used as a car power supply for cell phones and digital products.
  5. Suitable for DIY voltage regulation with constant current and short-circuit protection.
  6. Effective charger for all battery types with MPPT function, enhancing charging current and preventing overcharge.

Note:

  • The actual color of the item may vary slightly from images due to monitor differences.
  • Manual measurements may have a 1-4 cm size difference.
