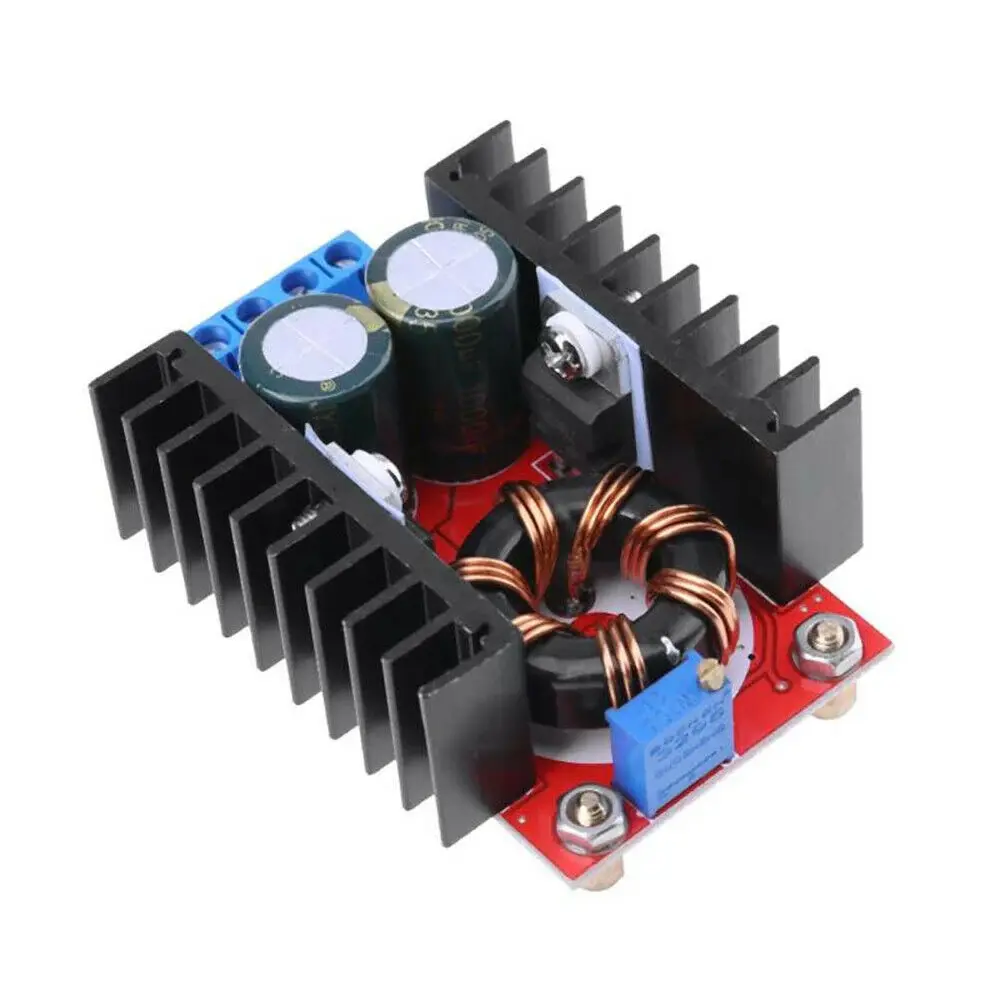

DC-DC Boost Converter Step Up Power Module 150W 10-32V to 12-35V XL4016

DC-DC Boost Converter Step Up Power Module 150W 10-32V to 12-35V XL4016

This DC-DC Boost Converter Module is a powerful step-up power supply featuring the XL4016 chip. It is capable of converting an input voltage between 10V and 32V to a stable, adjustable output voltage between 12V and 35V. With an efficiency of up to 94%, this module is suitable for powering devices such as 65W or 90W dual-core notebooks that use a 12V battery.

Packing List:

  • 1 x 150W Boost Converter Module

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Type: DC-DC Boost (Step-Up) Converter
  • Module Type: Non-isolated step-up module
  • Input Voltage: 10V – 32V
  • Output Voltage: 12V – 35V (adjustable)
  • Output Current: Max 10A
  • Input Current: Max 16A (requires improved heat dissipation above 10A)
  • Output Power: 100W (natural cooling), 150W (with heat dissipation)
  • Efficiency: Up to 94% (measured at input 16V, output 19V 2.5A)
  • Ripple Output: Max 2% (20MHz bandwidth)
  • Operating Temperature: -40°C to +85°C (reduce load or improve cooling above 40°C)
  • Full Load Temperature Rise: 45°C
  • No-Load Current: Typical 25mA
  • Voltage Regulation: ±0.5%
  • Dynamic Response Rate: 5% at 200µs
  • Short Circuit Protection: None (recommend external fuse)
  • Input Polarity Protection: None (recommend series diode)
  • Dimensions: 65 x 56.5 x 23 mm (L x W x H)

Features:

  • Easy to power 65W or 90W dual-core notebooks using 12V batteries.
  • Adjustable output voltage suitable for many DC-powered devices.
  • High efficiency design reduces power loss and heating.
  • Compact and robust module, ideal for DIY electronics and battery-powered systems.
