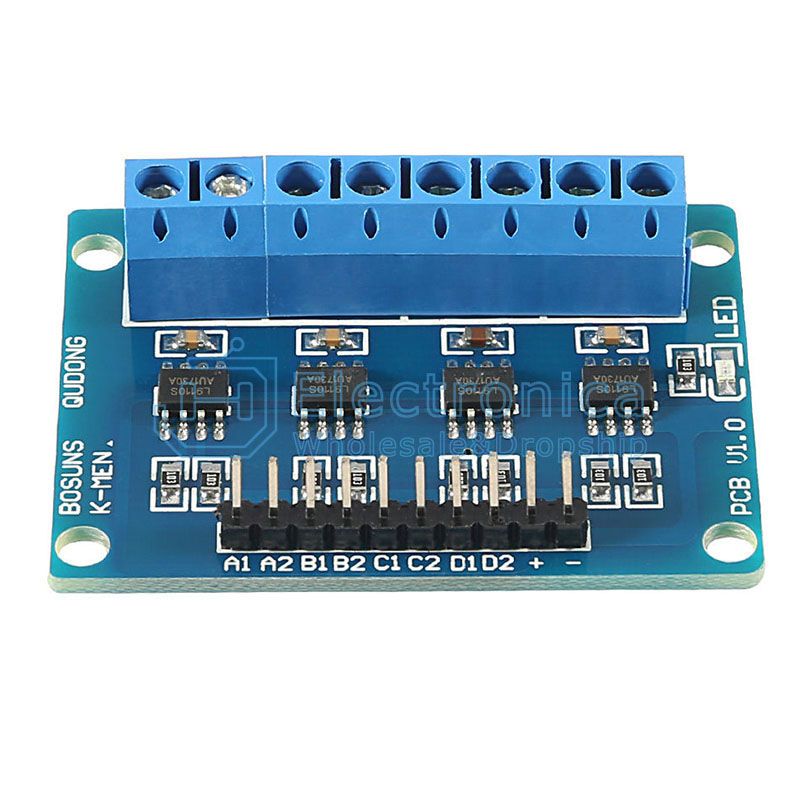

Motor Driver 4 Channel L9110S 4 Way DC Module

Motor Driver 4 Channel L9110S 4 Way DC Module

The motor drive module featuring four L9110S chips is a versatile component designed for driving DC motors and 4-wire 2-phase stepping motors. With a supply voltage ranging from 2.5V to 12V, this module is suitable for motors operating within the specified voltage range. It can efficiently handle a maximum working current of 0.8A, making it a robust solution for various motor control applications.

Package Includes:

  • 1 x Motor Driver 4 Channel L9110S 4 Way DC Module

19.50 AED 19.50 AED Tax Included
19.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Simple Motor Driver
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Quad L9110S Chips: Drives 4 DC motors or 2 4-wire 2-phase stepping motors.
  • Wide Voltage Range: 2.5V to 12V supply compatibility.
  • High Current Handling: Up to 0.8A continuous working current.
  • Module Interface: A1, A2, B1, B2, C1, C2, D1, and D2 for MCU control.
  • PCB Terminal Block: Connections for MOTOR A, B, C, and D.

Principle of Work:

Each L9110S chip is a dual H-bridge motor driver, allowing control over motor direction and speed. Inputs from a microcontroller control the H-bridges through logic signals, determining motor behavior.

Pinout of the Module:

L9110S Module Pinout

Pin Label Description
1 A1 Forward input for MOTOR A
2 A2 Reverse input for MOTOR A
3 B1 Forward input for MOTOR B
4 B2 Reverse input for MOTOR B
5 C1 Forward input for MOTOR C
6 C2 Reverse input for MOTOR C
7 D1 Forward input for MOTOR D
8 D2 Reverse input for MOTOR D
9 +ve Power input (2.5V–12V)
10 -ve Ground input

PCB Terminal Block Description:

Terminal Motor Description
1 MOTOR A 2-pin motor connection
2 MOTOR B 2-pin motor connection
3 MOTOR C 2-pin motor connection
4 MOTOR D 2-pin motor connection

Example Code:


// Arduino Pins
const int A1 = 2;
const int A2 = 3;

void setup() {
  pinMode(A1, OUTPUT);
  pinMode(A2, OUTPUT);
}

void loop() {
  motorForward();
  delay(2000);
  motorStop();
  delay(1000);
  motorReverse();
  delay(2000);
  motorStop();
  delay(1000);
}

void motorForward() {
  digitalWrite(A1, HIGH);
  digitalWrite(A2, LOW);
}

void motorReverse() {
  digitalWrite(A1, LOW);
  digitalWrite(A2, HIGH);
}

void motorStop() {
  digitalWrite(A1, LOW);
  digitalWrite(A2, LOW);
}

Applications:

  • Robotics projects
  • RC vehicles
  • Home automation systems
  • DIY and educational electronics
  • Camera gimbals and interactive installations

Technical Details:

  • Voltage Input: 2.5V – 12V
  • Max Current: 0.8A
  • Motor Types: DC motors, 4-wire 2-phase stepping motors
  • Size: Compact module
  • Library: No additional library required

Comparison with L293D:

  • Voltage Range: L9110S (2.5V–12V) vs L293D (4.5V–36V)
  • Max Current: L9110S (0.8A) vs L293D (0.6A per channel)
  • Heat Dissipation: L293D may require cooling
  • Use Case: L9110S for cost-effective low-mid power needs, L293D for higher power

Module Circuit:

L9110S Module Circuit
