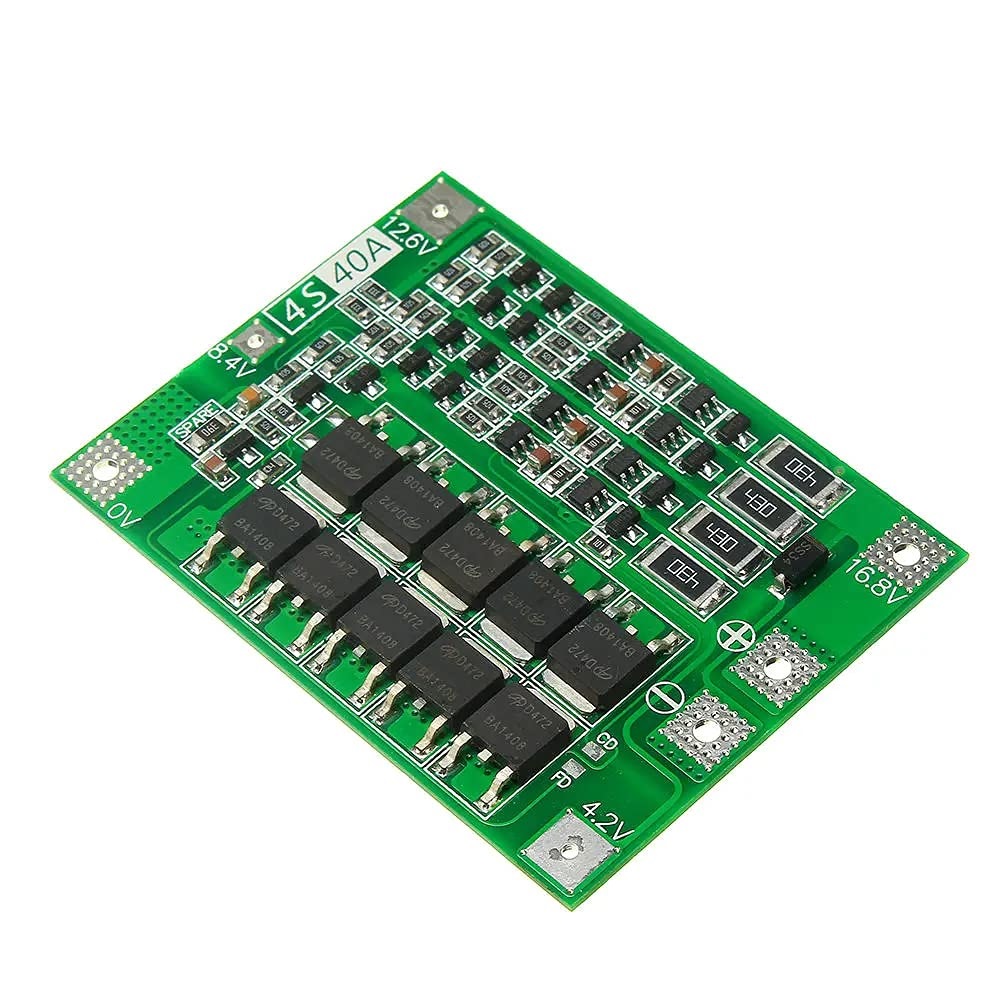

Battery Charging Balancer for Lithium-ion 18650 16.8V 40A 4S

Battery Charging Balancer for Lithium-ion 18650 16.8V 40A 4S

The 4S 14.8V 16.8V 40A Lithium Battery Protection Board is a compact and efficient electronic module designed to protect and manage 4-string 18650 lithium battery packs. It includes an automatic recovery feature to enhance battery reliability and lifespan.
24.00 AED 24.00 AED Tax Included
24.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Voltage Compatibility: Suitable for 4-cell lithium battery packs (3.6V/3.7V nominal voltage per cell)
  • Compact Design: Small and lightweight at 46 × 60 × 3.4 mm and 10.3g
  • Charging Voltage Range: 16.8V to 18.1V
  • Current Ratings: 40A continuous discharge, 20A continuous charge (reduce current in poor cooling environments)
  • Auto Recovery: Automatically recovers from faults without user intervention

Specifications:

  • Type: 4-string 16.8V lithium battery protection board
  • Recovery Function: Yes (Auto Recovery)
  • Battery Type: 18650 lithium batteries
  • Product Size: 46 × 60 × 3.4 mm
  • Product Weight: 10.3g
  • Charging Voltage: 16.8V – 18.1V
  • Max Continuous Discharge Current: 40A
  • Max Continuous Charge Current: 20A

Applications:

  • Battery packs for electric bikes and scooters
  • Power tools
  • DIY lithium battery storage systems
  • Solar-powered systems

Connection Schematic:

4S Battery Protection Board Wiring Diagram
