Features:
- Voltage Compatibility: Suitable for 4-cell lithium battery packs (3.6V/3.7V nominal voltage per cell)
- Compact Design: Small and lightweight at 46 × 60 × 3.4 mm and 10.3g
- Charging Voltage Range: 16.8V to 18.1V
- Current Ratings: 40A continuous discharge, 20A continuous charge (reduce current in poor cooling environments)
- Auto Recovery: Automatically recovers from faults without user intervention
Specifications:

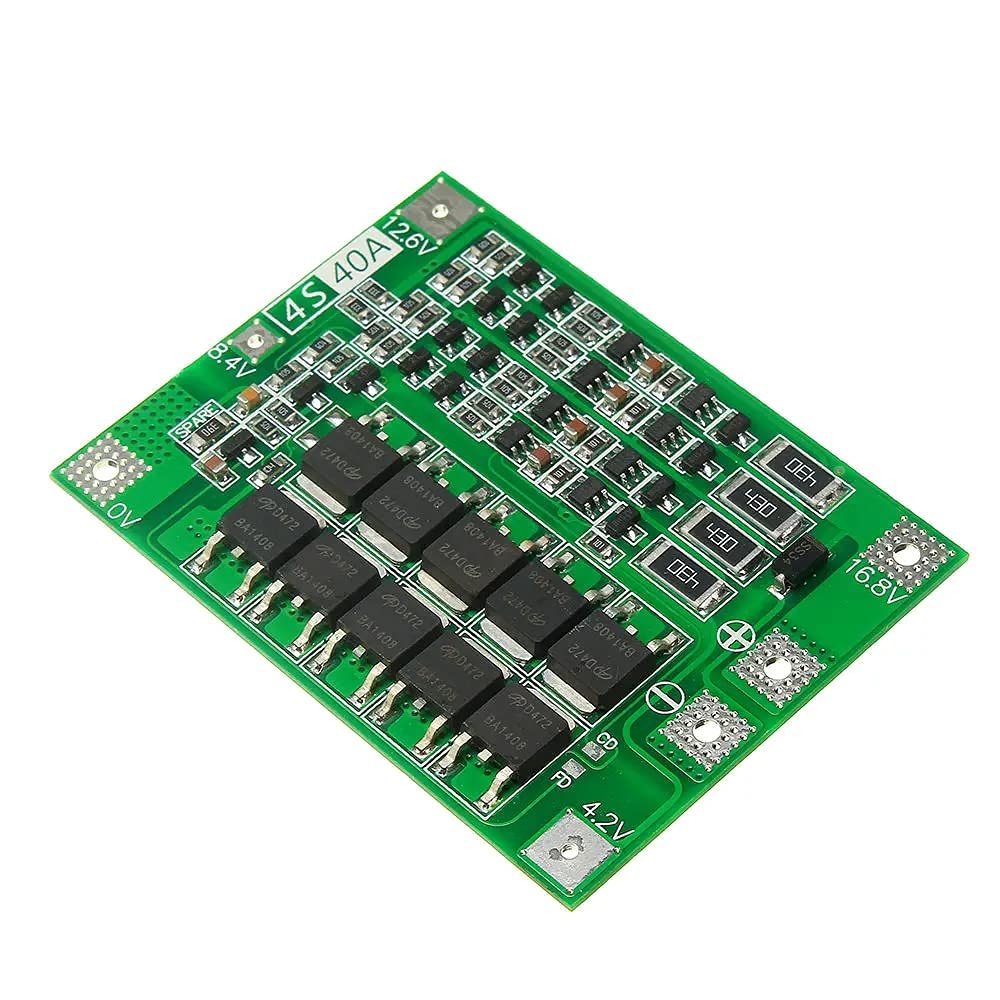

- Type: 4-string 16.8V lithium battery protection board
- Recovery Function: Yes (Auto Recovery)
- Battery Type: 18650 lithium batteries
- Product Size: 46 × 60 × 3.4 mm
- Product Weight: 10.3g
- Charging Voltage: 16.8V – 18.1V
- Max Continuous Discharge Current: 40A
- Max Continuous Charge Current: 20A
Applications:
- Battery packs for electric bikes and scooters
- Power tools
- DIY lithium battery storage systems
- Solar-powered systems
Connection Schematic:
.jpg)
