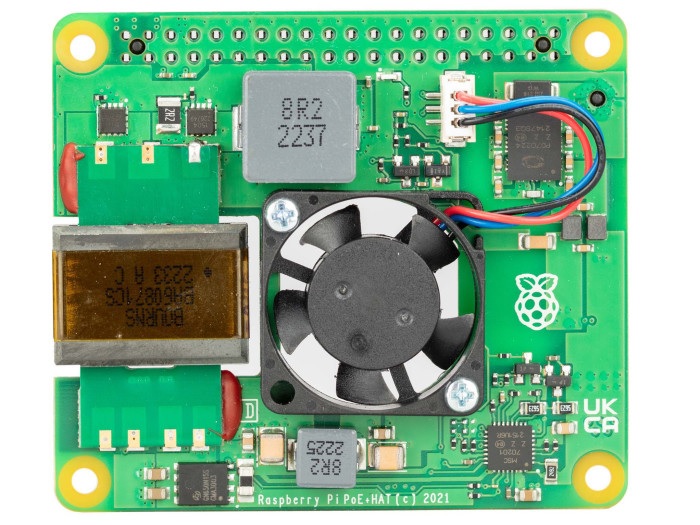

Specifications:
- Standard: IEEE 802.3at-2009 PoE
- Input Voltage: 37-57 V DC, Class 4 device
- Output Power: 5 V DC / 5 A
- Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
- Features: Fully isolated switched-mode power supply; fan control
- Operating Temperature: 0 °C to +50 °C
Connecting your PoE+ HAT to your Raspberry Pi:
- Attach the provided spacers to the four corners of the board before attaching the PoE+ HAT.
- Connect the Raspberry Pi PoE+ HAT to the two 0.1" headers (40 + 4) on your Raspberry Pi.
- After connecting the PoE+ HAT board, you may power your Raspberry Pi via its RJ45 network port.
Disconnecting your PoE+ HAT:
- Take care when separating the HAT from your Raspberry Pi.
- Pull evenly so that it detaches from all the pins at the same rate; do not pull one end of the connector off before the other.
More Information:
This device does not require any modifications to the Raspberry Pi board to function. Please ensure your Raspberry Pi software is up to date for full functionality. The PoE+ HAT has a tiny fan that can be operated via I2C, switching on and off automatically based on CPU temperature.
