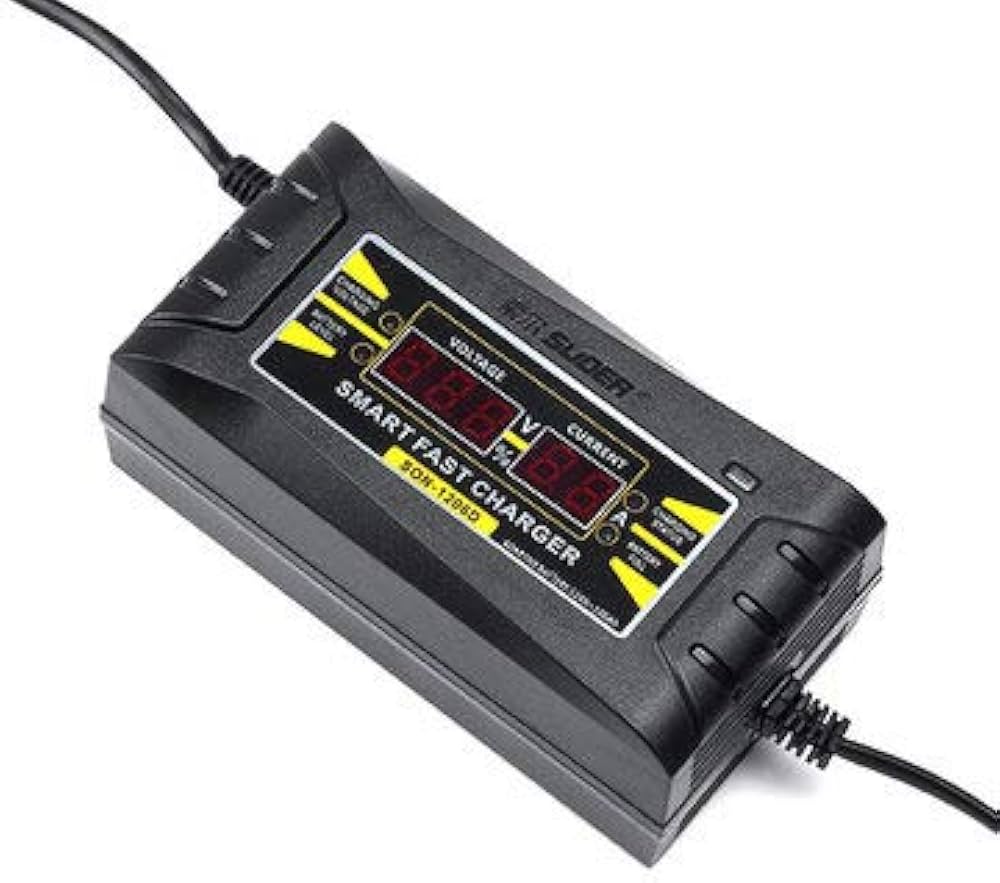

Lead Acid Battery Charger 6A 12V SON-1206D

Lead Acid Battery Charger 6A 12V SON-1206D

The Fast SON-1206D Car Battery Charger employs a micro MCU controller. When the charger is fully charged, it will automatically cease charging. This charger operates in a three-phase charging mode (PWM charging mode), including constant current charging, constant voltage charging, and floating charging.

It features online battery detection, short circuit protection, over-voltage protection, and anti-reverse connection protection. The smart charging indicator displays the charging process in real time, allowing users to monitor the battery's status.

Package Includes

  • 1 × Fast SON-1206D Car Battery Charger (6A, 12V)

Battery Charger
62.00 AED 62.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Evaporation function
  • Automatic trickle function
  • Anti-reverse connection protection
  • Over-voltage and overcharge protection
  • Auto shutoff when fully charged
  • Short circuit protection
  • Short start function
  • Wide voltage range
  • LCD Display
  • Three-phase charging (PWM mode): constant current, constant voltage, floating charge

Specifications

  • Battery Type: Storage battery
  • Applicable Battery: 12Ah - 100Ah
  • Charger Current: 5-6A
  • Input Voltage: 110V - 240V
  • Output Voltage: 12V
  • Rated Frequency: 47 - 63Hz
  • Full Load Efficiency: ≥ 87%
  • Working Temperature: -40°C ~ +95°C

Charging Modes

Constant Current Mode

When the battery voltage falls below the set value, the charger operates in constant current mode, supplying a stable current to the battery.

Constant Voltage Mode

Using PWM control, the charger regulates the charging current and output voltage, ensuring the battery is fully charged and protected from overcharging.

Floating Charge Mode

When the battery voltage approaches the constant voltage value, the current gradually decreases. At this stage, the battery is fully charged, the indicator lamp turns green, and the fan stops. The charger then switches to floating charge mode. The battery can be disconnected or left on a floating charge for up to half an hour.
