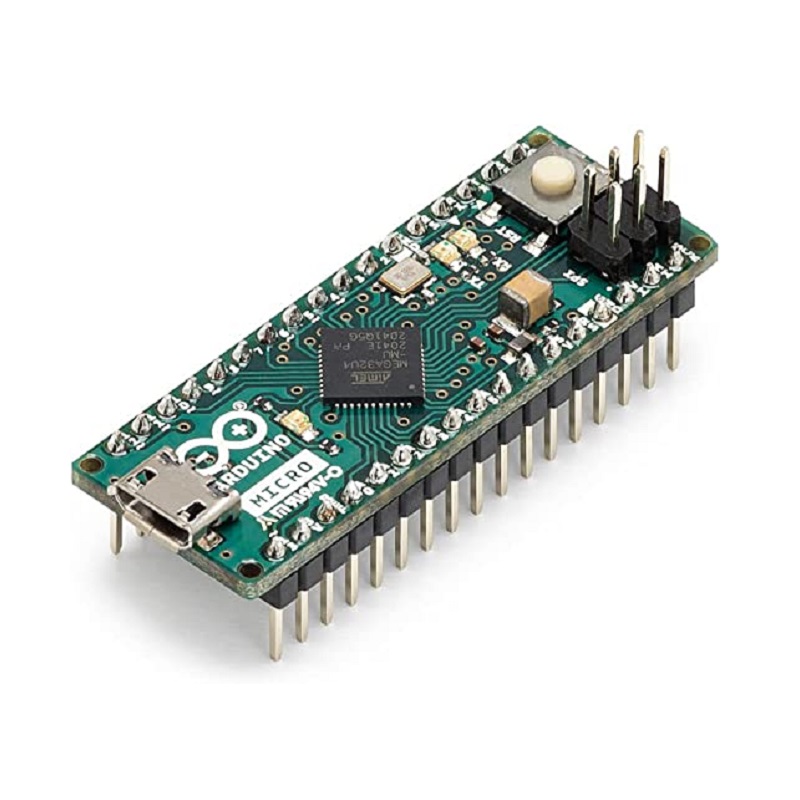

Arduino Micro ATmega32U4 Genuine With Headers

Features:

• ATmega32U4 MCU: Powered by the advanced ATmega32U4 microcontroller unit, offering high-performance capabilities and reliability.
• 20 Digital I/O Pins: Provides 20 flexible digital I/O pins, allowing you to interface with a wide range of external components and devices.
• PWM Outputs: Includes seven Pulse Width Modulation (PWM) outputs, enabling precise control over various actuators, motors, and other analog components.
• Analog Inputs: Offers twelve analog input channels, facilitating accurate sensing and measurement of real-world signals.
• 16MHz Clock Speed: Operates at a swift clock speed of 16MHz, ensuring rapid execution of instructions and efficient processing of data.
• Micro USB Connection: Features a micro USB interface for seamless connectivity with your computer, enabling easy programming and data transfer.
• Reset Button: Incorporates a convenient reset button for quick device rebooting or restarting during development and testing.
• User-Friendly Design: Designed with user convenience in mind, ensuring ease of use, setup, and integration with other hardware and software components.
• Extensive Documentation: Backed by comprehensive documentation and support from both Adafruit and the wider community, providing valuable resources for beginners and advanced users alike.
• Versatile Applications: Ideal for a wide range of projects, including robotics, Internet of Things (IoT) devices, automation systems, sensor interfacing, and prototyping.

Principle of Work:

The Arduino Micro Genuine is designed to be an accessible and user-friendly development board for both beginners and experienced makers. and this is how the Arduino Micro Genuine works:

1. Microcontroller: The heart of the Arduino Micro Genuine is the ATmega32U4 microcontroller, which is responsible for executing the code and controlling the board's functionalities.
2. Programming: To program the Arduino Micro Genuine, you connect it to your computer using a micro USB cable. The board utilizes the built-in USB functionality of the ATmega32U4, allowing it to appear as a virtual COM port on your computer. This simplifies the programming process and eliminates the need for additional hardware.
3. Integrated Development Environment (IDE): The Arduino IDE is the software environment used to write, compile, and upload code to the Arduino Micro Genuine. It provides a user-friendly interface and a simplified programming language based on C/C++. The IDE also includes a vast library of pre-written code examples and functions that you can leverage in your projects.
4. Pins and I/O: The Arduino Micro Genuine offers a variety of pins and I/O options to connect and control external components. It has 20 digital I/O pins, including seven PWM outputs and twelve analog inputs. These pins can be used to interface with sensors, actuators, LED displays, motors, and other electronic components.
5. USB Functionality: One of the notable features of the Arduino Micro Genuine is its ability to function as a USB human interface device (HID). This means that when connected to a computer, it can emulate a keyboard or a mouse, allowing you to control your computer or interact with software applications using the board.
6. Powering the Board: The Arduino Micro Genuine can be powered via the micro USB port connected to a computer or an external power source. It operates at a voltage of 5V.
7. Open-Source Platform: The Arduino Micro Genuine is part of the Arduino ecosystem, which embraces open-source principles. This means that the board's hardware designs, firmware, and software are freely available, allowing users to modify and customize them to suit their specific needs.

Pinout of the Module:

1. Digital I/O Pins: The board boasts 20 digital I/O pins that can be configured as either inputs or outputs. These pins operate on a binary system, capable of being set to either a HIGH state (5V) or a LOW state (0V). This flexibility allows for digital communication, interfacing with sensors, controlling actuators, and more.
2. Analog Pins: The Arduino Micro offers 12 analog pins that facilitate analog input. These pins have a 10-bit Analog-to-Digital Converter (ADC), allowing them to receive a range of values. Unlike digital pins, which have only two states, analog pins can detect and measure a multitude of levels, providing greater precision and sensitivity in applications such as sensor readings.
3. PWM Pins: This board features 7 Pulse Width Modulation (PWM) pins, denoted by numbers 3, 5, 6, 9, 10, 11, and 13. PWM allows the board to simulate analog output by modulating the width of the signal's pulse. Each PWM pin provides an 8-bit resolution, meaning it can produce 256 different levels of analog-like output. This is useful for controlling motors, dimming LEDs, and generating precise signals.
4. UART Pins: The Arduino Micro supports UART (Universal Asynchronous Receiver-Transmitter) communication through its Rx (Receive) and Tx (Transmit) pins. These pins enable serial data transmission and reception, making it possible to communicate with other devices or establish connections to external modules.
5. SPI Pins: With the inclusion of Serial Peripheral Interface (SPI) pins, the Arduino Micro facilitates communication between the microcontroller and devices such as sensors and shift registers. SPI utilizes two pins: MOSI (Master Output Slave Input) and MISO (Master Input Slave Output), enabling bidirectional data transfer and synchronization between the microcontroller and connected peripherals.
6. I2C Pins: Two dedicated pins, SDA (Serial Data) and SCL (Serial Clock), support the I2C (Inter-Integrated Circuit) communication protocol. I2C is a two-wire interface that facilitates simple and efficient data exchange between multiple devices on the same bus. The SDA pin handles data transmission, while the SCL pin ensures synchronized timing for accurate communication.
7. Power Pins:
   • VIN: This pin serves as the input voltage pin, allowing the board to be powered through an external power source or the power jack. It can handle voltages up to 12V.
   • VCC: This pin supplies power to the onboard ATmega32U4 microcontroller, operating at a regulated 5V. When powered through the 'RAW' pin or USB, it can also serve as an output to power other devices.
   • RS (Reset): By connecting this pin to the ground, you can initiate a reset of the Arduino Micro, restarting its operation. The board remains inactive until the reset line is returned to a high state.
   • GND: The ground pin provides the common reference voltage (0V) for the entire system.
   • AREF: The AREF pin serves as a reference voltage for the analog inputs, ensuring accurate analog measurements. It is used in conjunction with the analogReference() function.
8. Inbuilt LED (13): The Arduino Micro features a built-in LED (Green) connected to digital pin 13. This LED can be controlled by switching the pin to a HIGH state to turn it on or a LOW state to turn it off. It is often used for quick visual feedback in projects.
9. Micro USB Port: The Arduino Micro is equipped with a Micro USB 2.0 port, allowing seamless connectivity between the board and your computer. This port serves as a bridge, enabling data transfer, power supply, and programming functionalities. By simply connecting the board to your computer using a micro USB cable, you can upload code, communicate with the board, and power it without the need for additional power sources.

Applications:

• Robotics: The Arduino Micro's digital and analog I/O pins, PWM capability, and communication interfaces make it an excellent choice for building robots.
• IoT (Internet of Things): With its compact size and built-in USB functionality, the Arduino Micro is ideal for IoT projects.
• Human-Computer Interaction (HCI): The ability of the Arduino Micro to function as a keyboard or a mouse opens up opportunities for HCI applications.
• Home Automation: The Arduino Micro can be the brain behind home automation projects.
• Wearable Technology: Due to its small form factor, the Arduino Micro is well-suited for wearable tech projects.
• Educational Projects: The Arduino Micro's user-friendly nature, extensive online resources, and compatibility with the Arduino IDE make it an excellent educational tool.
• Prototyping and Product Development: The Arduino Micro is often employed in the early stages of prototyping and product development.

Circuit:

We will not need any circuit, in this testing code, we will print out byte values in all possible formats on the serial monitor.

Connecting with Arduino First Time

1. Open the Arduino IDE: Download the Arduino IDE from the software page if you haven't done so already.
2. Connect the board to your computer: Using a data USB cable (not a charge-only cable), connect the Arduino Micro board to your computer.
3. Select the Board: In the Arduino IDE, click on "Tools" > "Board" > "Arduino Micro".
4. Select the Port: In the Arduino IDE, click on "Tools" > "Port" and select the correct serial device.
5. Upload a Sketch: Copy your code into the Arduino IDE, verify, and upload.

Code:

// LED pin
const int ledPin = 13;

// Blink interval
const int blinkInterval = 1000; // 1 second

// Variables
bool ledState = false;
unsigned long previousMillis = 0;

void setup() {
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  // Get the current time
  unsigned long currentMillis = millis();

  // Check if it's time to blink the LED
  if (currentMillis - previousMillis >= blinkInterval) {
    // Save the current time for the next iteration
    previousMillis = currentMillis;

    // Toggle the LED state
    ledState = !ledState;
    digitalWrite(ledPin, ledState);

    // Print the blink status on Serial Monitor
    if (ledState) {
      Serial.println("LED ON");
    } else {
      Serial.println("LED OFF");
    }
  }
}
