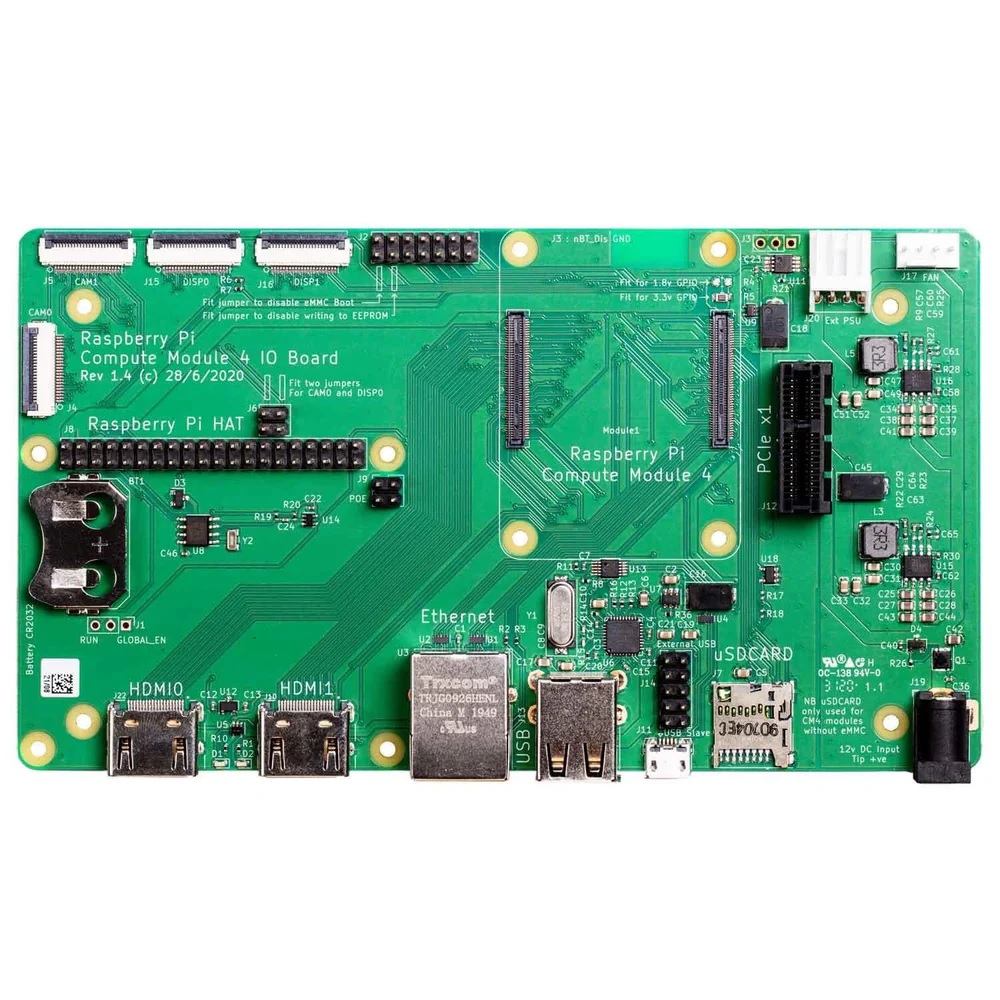

Raspberry Pi Compute Module IO Board V4

Raspberry Pi Compute Module IO Board V4

The Compute Module 4 IO Board is a Raspberry Pi Compute Module 4 companion board. It is intended for use as a Compute Module 4 development system as well as an embedded board integrated into end products. The IO board is intended to allow you to easily build systems using off-the-shelf components such as HATs and PCIe cards, which may include NVMe, SATA, networking, or USB. To simplify enclosures, the major user connectors are positioned along one side to make enclosures simple.
244.00 AED 244.00 AED Tax Included
244.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Dual display support at resolutions up to 4K
  • Hardware video decode at up to 4Kp60
  • Dual camera interfaces
  • PCIe Gen 2 x1 interface

Socket:

  • CM4 socket: suitable for all variants of Compute Module 4

Connectors:

  • Standard Raspberry Pi HAT connectors with PoE support
  • Standard PCIe Gen 2 x1 socket

RTC:

  • Real-time clock (RTC) with battery backup

Video:

  • Dual HDMI connectors
  • Dual MIPI display connectors

Camera:

  • Dual MIPI camera connectors

Ethernet:

  • Gigabit Ethernet socket supporting PoE HAT

USB:

  • On-board USB 2.0 hub with 2 USB 2.0 connectors

SD Card:

  • SD card socket for Compute Module 4 variants without eMMC

eMMC programming:

  • Support for programming eMMC variants of Compute Module 4

Fan Controller:

  • PWM fan controller with tachometer feedback

Input Power:

  • 12V input
  • +5V input with reduced functionality

Dimensions:

  • 160 mm × 90 mm

Pinout of the IO Board V4:

CM4 IO Board Pinout
