IC Flip-Flop 2Bit D-Type 74LS74

IC Flip-Flop 2Bit D-Type 74LS74

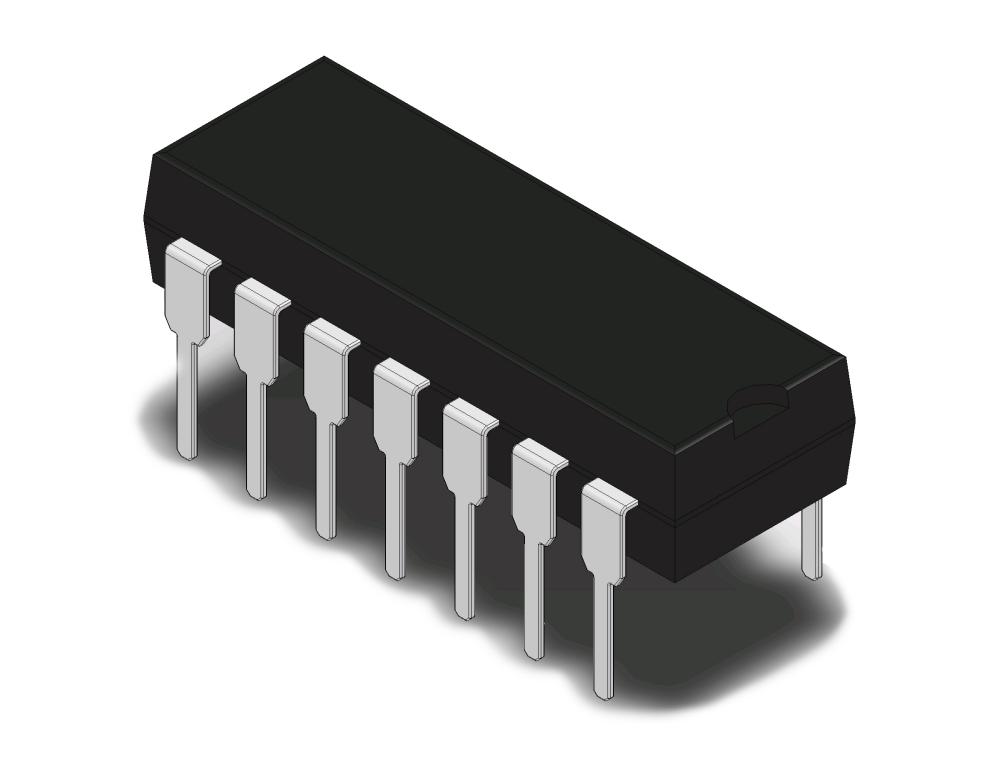

The 74LS74 is a widely used integrated circuit (IC) that belongs to the TTL (Transistor-Transistor Logic) family of digital logic chips. Developed as a dual D-type flip-flop, this versatile IC plays a fundamental role in digital electronics by providing a reliable and efficient means of storing and manipulating binary data. Its popularity stems from its robustness, low power consumption, and ease of implementation in a wide range of electronic projects and systems. The 74LS74 integrates two independent flip-flops within a single package, making it an invaluable component for various applications, including sequential logic circuits, frequency dividers, counters, shift registers, and more. Each flip-flop operates on a clock signal and possesses two inputs, one for data input and the other for clocking purposes. With the ability to store one bit of data in each flip-flop, the 74LS74 enables users to create complex digital circuits capable of processing and synchronizing binary information. Its compatibility with other TTL devices ensures seamless integration with existing digital circuitry, and its compact Dual In-Line Package (DIP) form factor facilitates ease of use on breadboards and PCBs alike. Whether utilized in educational settings to teach basic digital logic concepts or in advanced electronic designs for real-world applications, the 74LS74 continues to be a cornerstone of digital electronics, delivering reliable performance and contributing to the progression of modern technology.

Package Includes:

  • 1 x 74LS74 IC

7.00 AED 7.00 AED Tax Included
7.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



74LS74 Specifications:

  • Operating Voltage: 2V to 15V
  • Propagation Delay: 40nS
  • Minimum High-Level Input Voltage: 2 V
  • Maximum Low-Level Input Voltage: 0.8V
  • Operating Temperature: 0 to 70°C
  • High-Level Output Current: 8mA

What is a D-Type Flip-Flop and where to use it?

A clocked flip-flop with two stable states is known as a D-type flip-flop. A D-type flip-flop has an input delay of one clock cycle. Thus, by cascading many D-type flip-flops, delay circuits, which are used in many applications such as digital television systems, can be created. A D-type flip-flop may also be referred to as a D flip-flop or a delay flip-flop.

74LS74 Pin Configuration:

Pin No Pin Name Description
1 1CLR’ Resets the flip flop by clearing its memory
2 1D Input pin of the Flip Flop
3 CLK1 Clock pin for 1st flip-flop
4 1SET’ Input SET pin for flip-flop
5 1Q Output Pin of the Flip Flop
6 1Q’ The inverted output pin of Flip Flop
7 GND Ground
8 2Q’ The inverted output pin of Flip Flop
9 2Q Output Pin of the Flip Flop
10 2SET’ Input SET pin for flip-flop
11 2CLK Clock pin for 2nd flip-flop
12 2D Input pin of the Flip Flop
13 2CLR’ Resets the flip flop by clearing its memory
14 VCC Supply Voltage

74LS74 Truth Table:

PRE (bar) CLR (bar) CLK D Q Q (bar)
L H X X H L
H L X X L H
L L X X H H
H H   H H L
H H   L L H
H H L X Q0 Q0 (bar)
