Motor DC Micro Geared 10mm Long axis Metal Gear Box GA12-N20 100RPM 3V

Motor DC Micro Geared 10mm Long axis Metal Gear Box GA12-N20 100RPM 3V

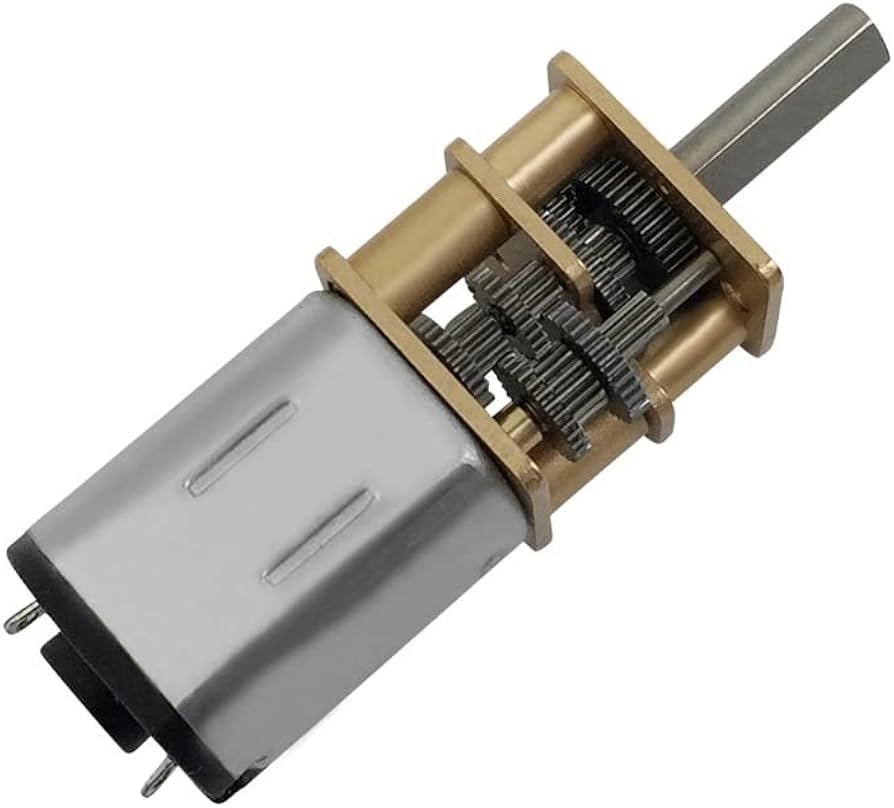

This N20 3V 100 RPM Metal Gear Micro DC Motor with Precious Metal Brush is a lightweight, high torque motor that is suitable for a wide range of industrial, home appliance, and hobby applications. This motor is outfitted with an all-metal gearbox assembly that provides incredible torque for a motor of this size. Furthermore, the brushes in the motor are precious metal brushes rather than carbon brushes. This ensures that the motor has a longer working life than a motor with carbon brushes. The N20 motor is ideal for small IIOT (Industrial IoT) products such as electric locks, webcam pan tilt, and other similar actuator products that require high torque in a small amount of space and weight. The N20 all-metal gear motor is a perfect fit for hobby segment products such as robotic cars, micro mice, electric boats, and all small motor-related projects where power consumption is a concern, as well as optimal pricing.

Package Includes:

  • 1 x Micro Geared DC Motor 10mm Long axis Metal Gear Box GA12-N20 100RPM 3V

31.00 AED 31.00 AED Tax Included
31.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Model No: GA12 N20
  • Motor Type: Center Shaft DC Geared Motor
  • Base Motor: 30000
  • RPM: 100
  • Rated Voltage: 3V DC
  • No Load Current: 10 mA
  • Rated Current: 20 mA
  • Stall Current: 1 A
  • Rated Torque: 0.1 Kgcm
  • Stall Torque: 0.8 Kgcm
  • Shaft Type: D-type Single Side
  • Motor Size: 12mm (diameter) x 26mm (height)
  • Shaft Size: 3mm (diameter) x 10mm (length)
  • Weight: 10g

Features:

  • This is a DC Mini Metal Gear Motor that is ideal for building robots.
  • Lightweight, with high torque and a low RPM.
  • Delicate build quality, long-lasting, and difficult to wear.
  • With extremely good stall properties, it can easily climb hills.
  • A wheel can also be easily mounted on the motor's output shaft.
