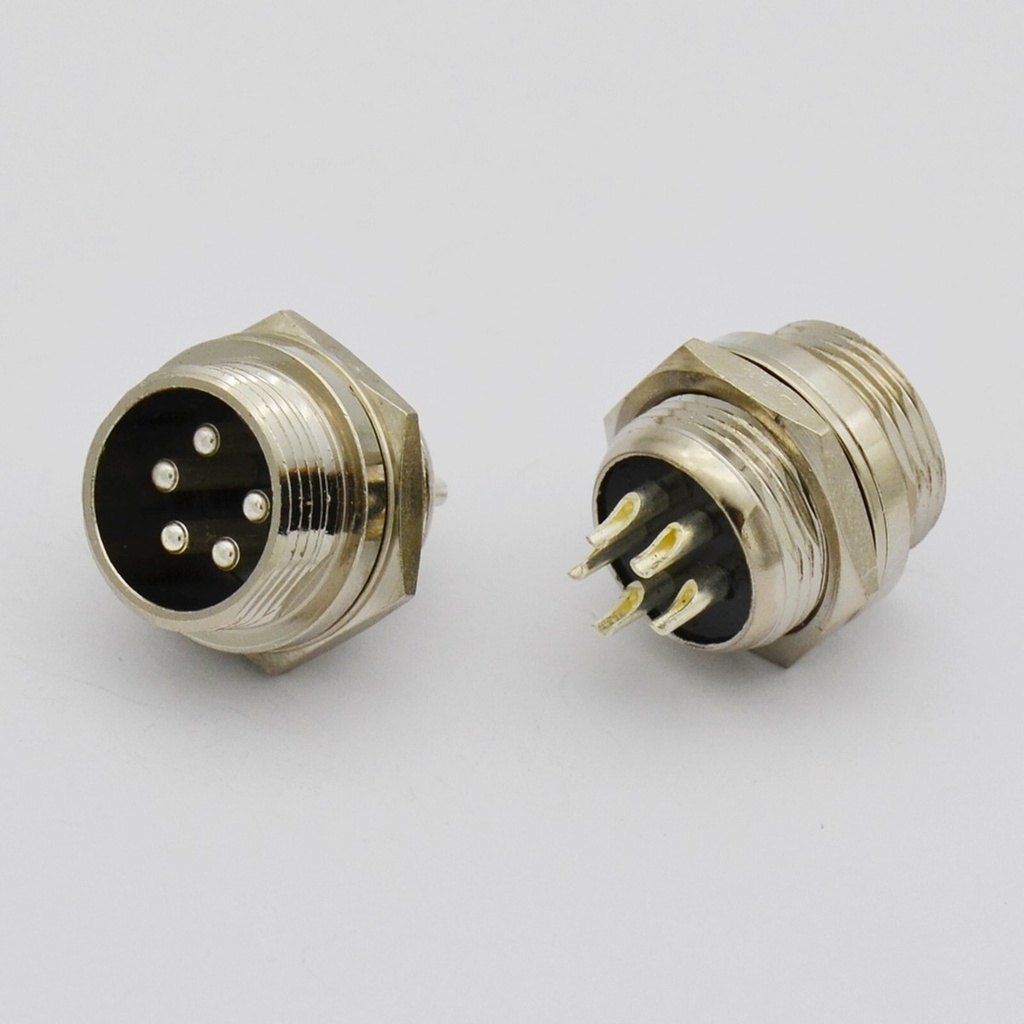

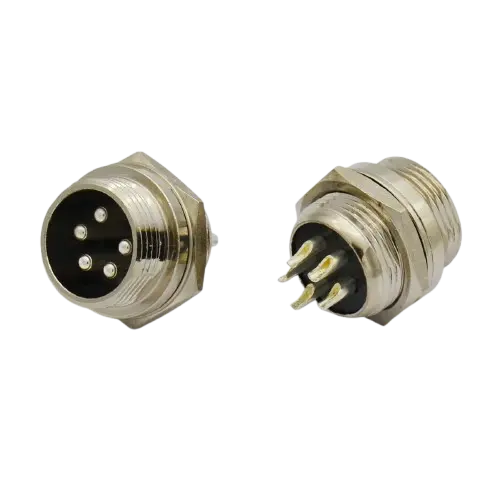

Connector Audio Microphone 5-Pin Circular Adaptor Male/Female Pair

Connector Audio Microphone 5-Pin Circular Adaptor Male/Female Pair

These circular connectors are approximately half the size of standard mic connectors found in audio equipment but are rugged, multi-pin adaptors suitable for a wide range of applications. Each connector is keyed to ensure proper polarity and includes a pinned latching ring for secure contact, even under extreme shock and vibration. They are ideal for mobile applications, capable of handling voice, data, and power. The female inline connector also features built-in strain relief.

Package Includes:

  • 1 Pair (Male + Female) of Connectors

15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Compact Size: Half the size of standard mic connectors.
  • Rugged Design: Durable and suitable for various applications.
  • Keyed Connectors: Ensure proper polarity.
  • Secure Contact: Pinned latching ring maintains connection under shock and vibration.
  • Versatile Applications: Suitable for voice, data, and power.
  • Built-in Strain Relief: Included in the female inline connector.

Specifications:

Female Plug:

  • Number of Pins: 5
  • Solder Cups: 20AWG & Smaller
  • Overall Dimensions: 0.45" Diameter x 1.31" Long

Male Jack:

  • Number of Pins: 5
  • Chassis Mount
  • Solder Cups: 20AWG & Smaller
  • Mounting Hole: 1/2"
  • Max Panel Thickness: 1/4"
  • Current Rating: 5A Max
  • Insulation Resistance: 1000MOhm DC Min.
  • Dielectric Withstanding Voltage: 500VAC
  • Contact Resistance: 50mOhm Max
