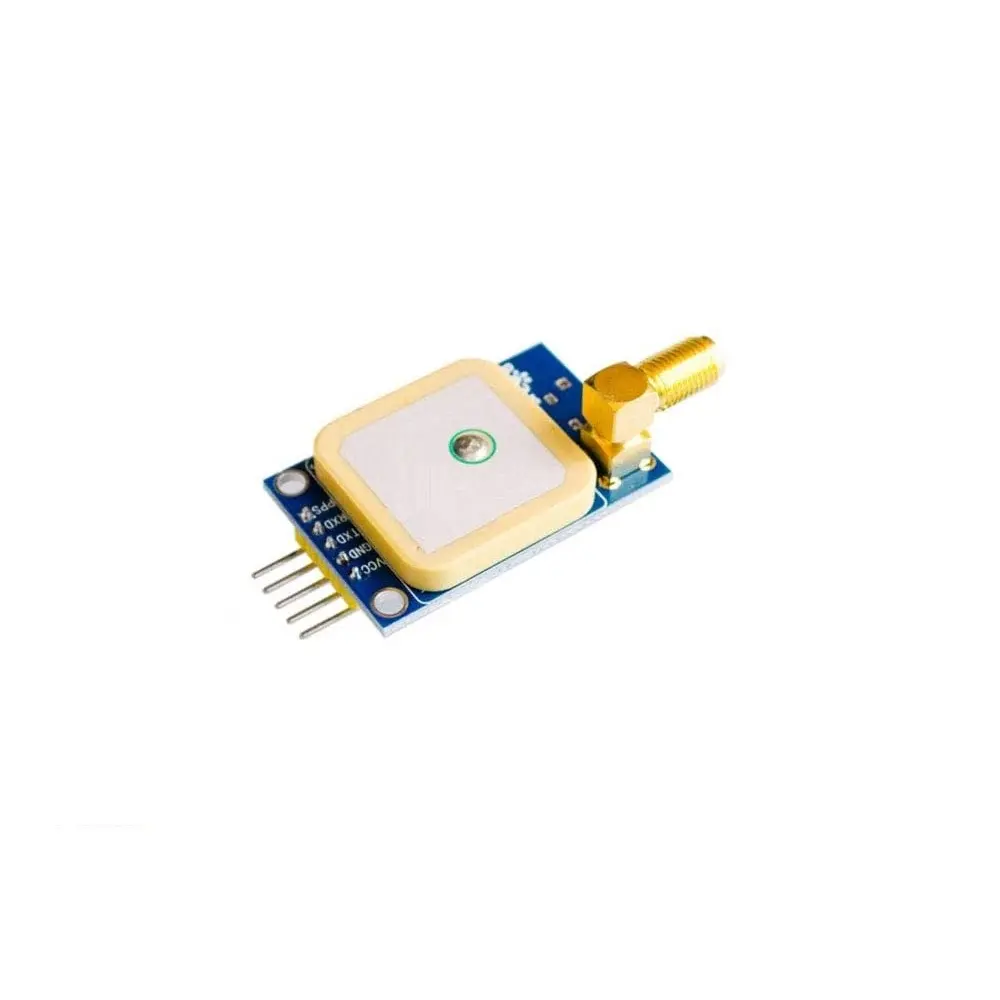

Ublox NEO-7M Module with Ceramic Antenna on Board and SAM Interface

Ublox NEO-7M Module with Ceramic Antenna on Board and SAM Interface

The GY-NEO-7M GPS device is a GPS Navigation module that supports the Serial communication protocol and has an active antenna. This module can be easily combined with any microcontroller. It has a battery pack and can be attached to a PC via a USB to TTL converter. The device can obtain data and measure the geographic location with high precision and reliability. It supports BeiDou, Galileo, GLONASS, GPS / QZSS, and more. The device has internal storage for saving configurations.
49.95 AED 49.95 AED Tax Included
49.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Part Number: 51 single-chip microcomputer STM32 NEO7M
  • RF Family/Standard: 802.15.4
  • Protocol: LoRa
  • Modulation: FSK, GFSK, GMSK, MSK, OOK
  • Frequency: 137MHz - 525MHz
  • Data Rate (Max): 300kbps
  • Sensitivity: -148dBm

NEO-7M GPS Pinout

Pin Description
VIN Module Power Supply (5V) - Provides power to the module. Typically requires a 5V power supply.
GND Ground - Connect this pin to the ground reference of the system.
RX Receive Data via Serial Protocol - Used to receive data from another device via UART.
TX Transmit Data via Serial Protocol - Used to transmit data to another device via UART.

Connecting NEO-7M GPS With Arduino:

NEO-7M GPS Pin Arduino Pin Connection
Vin VCC 5V Power input (5V)
GND GND Ground
RX Pin 4 Input signal
TX Pin 3 Output signal

Arduino Setup Instructions:

  1. Download the TinyGPSPlus Library.
  2. Open Arduino IDE.
  3. Go to Sketch → Include Library → Add .ZIP Library.
  4. Select the downloaded .zip file and click "Open".
  5. The library will be added to your Arduino IDE.

Upload the Code:

#include "TinyGPS++.h"
#include "SoftwareSerial.h"

static const int RXPin = 4, TXPin = 3;
static const uint32_t GPSBaud = 9600;

TinyGPSPlus gps;
SoftwareSerial ss(RXPin, TXPin);

void setup() {
  Serial.begin(115200);
  ss.begin(GPSBaud);
  Serial.println(F("DeviceExample.ino"));
  Serial.println(F("Testing TinyGPS++ library v."));
  Serial.println(TinyGPSPlus::libraryVersion());
}

void loop() {
  while (ss.available() > 0)
    if (gps.encode(ss.read()))
      displayInfo();

  if (millis() > 5000 && gps.charsProcessed() < 10) {
    Serial.println(F("No GPS detected: check wiring."));
    while(true);
  }
}

void displayInfo() {
  Serial.print(F("Location: "));
  if (gps.location.isValid()) {
    Serial.print(gps.location.lat(), 6);
    Serial.print(F(","));
    Serial.print(gps.location.lng(), 6);
  } else {
    Serial.print(F("INVALID"));
  }

  Serial.print(F(" Date/Time: "));
  if (gps.date.isValid()) {
    Serial.print(gps.date.month());
    Serial.print(F("/"));
    Serial.print(gps.date.day());
    Serial.print(F("/"));
    Serial.print(gps.date.year());
  } else {
    Serial.print(F("INVALID"));
  }

  Serial.print(F(" "));
  if (gps.time.isValid()) {
    if (gps.time.hour() < 10) Serial.print(F("0"));
    Serial.print(gps.time.hour()); Serial.print(F(":"));
    if (gps.time.minute() < 10) Serial.print(F("0"));
    Serial.print(gps.time.minute()); Serial.print(F(":"));
    if (gps.time.second() < 10) Serial.print(F("0"));
    Serial.print(gps.time.second()); Serial.print(F("."));
    if (gps.time.centisecond() < 10) Serial.print(F("0"));
    Serial.print(gps.time.centisecond());
  } else {
    Serial.print(F("INVALID"));
  }
  Serial.println();
}

After uploading the code, you can view the output in the Arduino Serial Monitor.
