Bluetooth 4.0 Hm-10 CC2541 Serial Module With Logic Level Converter (Compatible)

Bluetooth 4.0 Hm-10 CC2541 Serial Module With Logic Level Converter (Compatible)

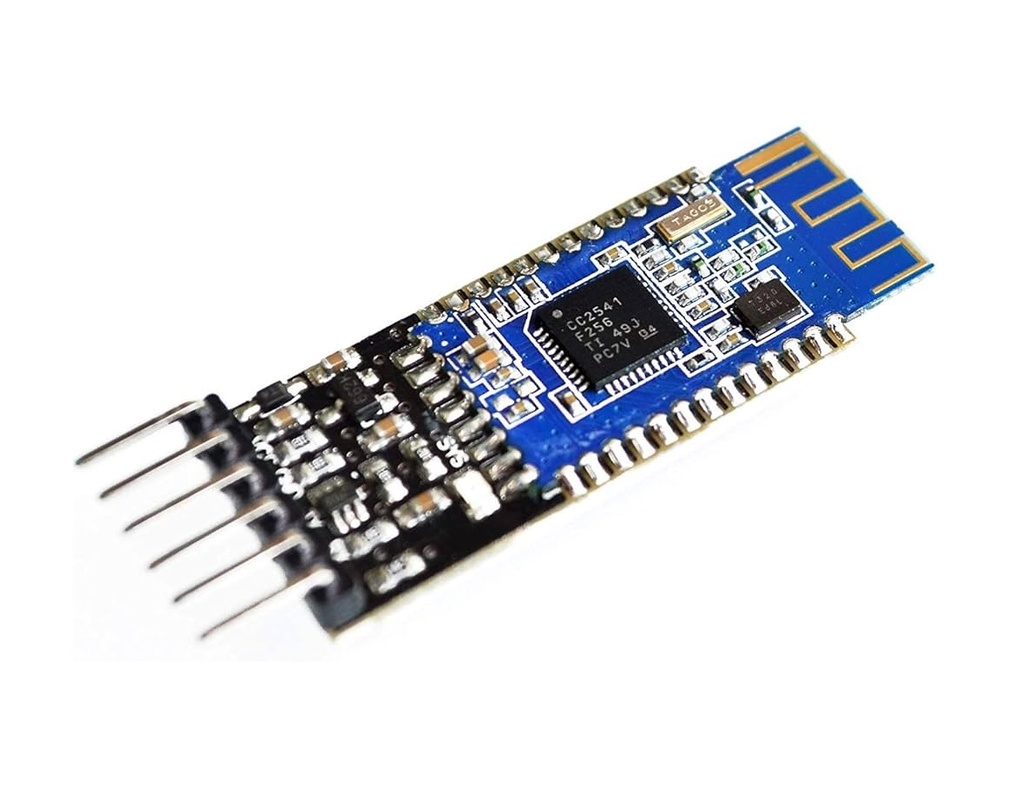

The HM-10 is a Bluetooth 4.0 BLE (Bluetooth Low Energy) serial module based on the CC2541 chip. It supports both Central and Peripheral modes and is compatible with various microcontroller platforms. With its compact size and integrated logic level converter, it offers easy integration into 3.3V or 5V systems, making it ideal for wireless communication projects.

Package Includes:

  • 1 × HM-10 Bluetooth 4.0 Serial Module with Logic Level Converter

32.00 AED 32.00 AED Tax Included
32.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Bluetooth Transceiver Serial Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Bluetooth Version: V4.0 BLE
  • USB Protocol: USB V2.0
  • Operating Frequency: 2.4GHz ISM band
  • Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
  • Transmitting Power: ≤ 4dBm
  • Sensitivity: ≤ -84dBm at 0.1% BER
  • Transmission Rate: Asynchronous: 6 kbps, Synchronous: 6 kbps
  • Security Features: Authentication and encryption
  • Supported Services: Central & Peripheral, UUID FFE0, FFE1
  • Power Supply: +3.3V DC @ 50mA
  • Operating Temperature: -5°C ~ +65°C
  • Dimensions: 27mm x 13mm x 2.2mm
