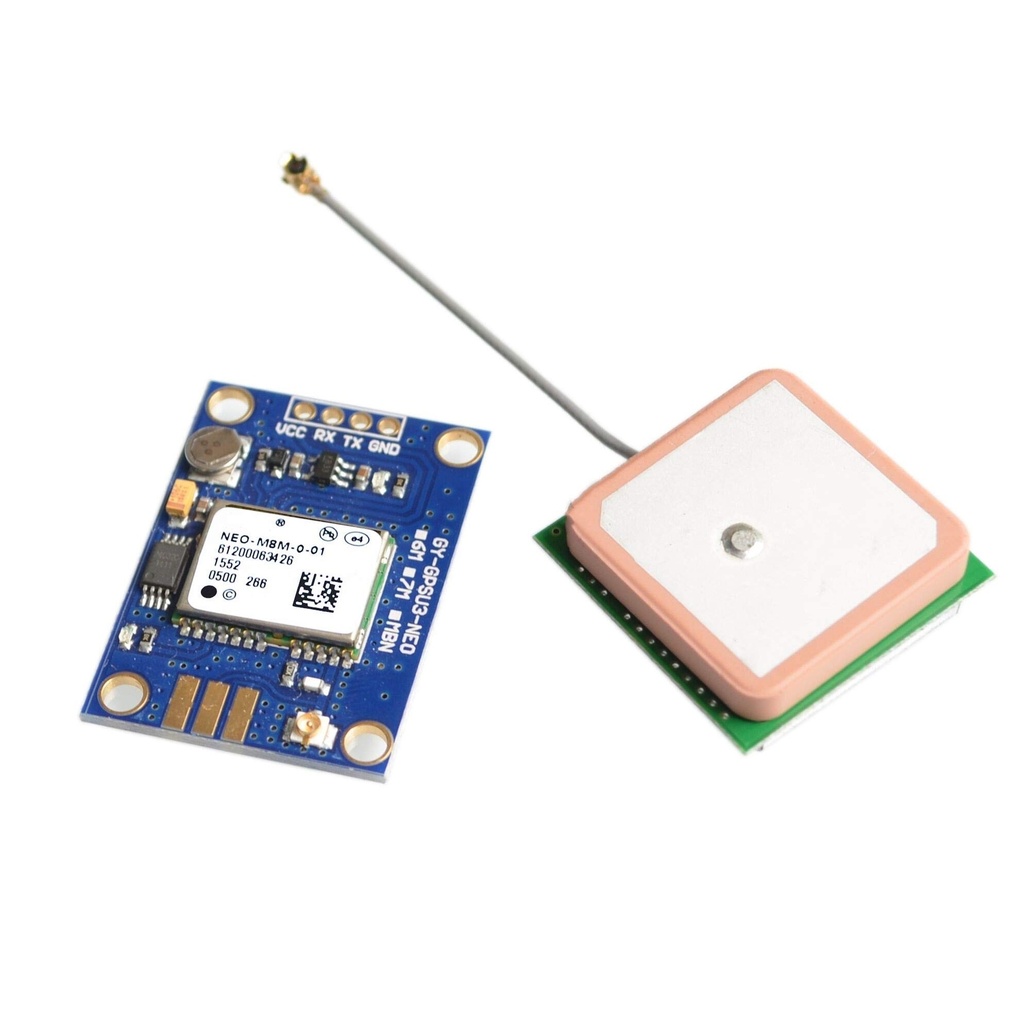

GPS Ublox NEO-8M 0 01 GY-GPSV3 Module with Ceramic Antenna

GPS Ublox NEO-8M 0 01 GY-GPSV3 Module with Ceramic Antenna

The NEO-M8N is a high-performance GPS module known for its low power consumption and high accuracy. Designed with an internal Flash for firmware updates and equipped with advanced features, this module is ideal for industrial, automotive, and UAV applications. It is based on the M8 GNSS engine and supports concurrent reception from multiple GNSS systems.

Package Includes:

  • 1 x U-blox NEO-M8N GPS Tracking Module with Antenna (GY-GPSV3-NEO)

85.00 AED 85.00 AED Tax Included
85.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High-performance GPS module with low power consumption
  • Integrated Flash memory for firmware upgrades
  • Ceramic antenna provides strong signal strength
  • LED indicator for GPS lock and status
  • Backup battery for data retention
  • EEPROM saves configuration data on power-down
  • Default baud rate: 9600 bps
  • Compatible with multiple flight controller modules
  • Supports both active and passive antennas
  • TCXO oscillator and built-in RTC crystal for enhanced precision
  • Advanced anti-jamming with active continuous wave detection and removal
  • SAW bandpass filter for enhanced signal clarity

Assistance Features:

  • AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant

Additional Capabilities:

  • Odometer functionality to calculate traveled distance
  • Data-logger for position, velocity, and time

Applications:

  • Compatible with flight controllers (e.g., APM, Pixhawk)
  • Ideal for GPS navigation in drones, robotics, and mobile devices
  • Excellent for battery-operated devices requiring compact size and low power
  • Performs well in challenging environments for precise navigation
