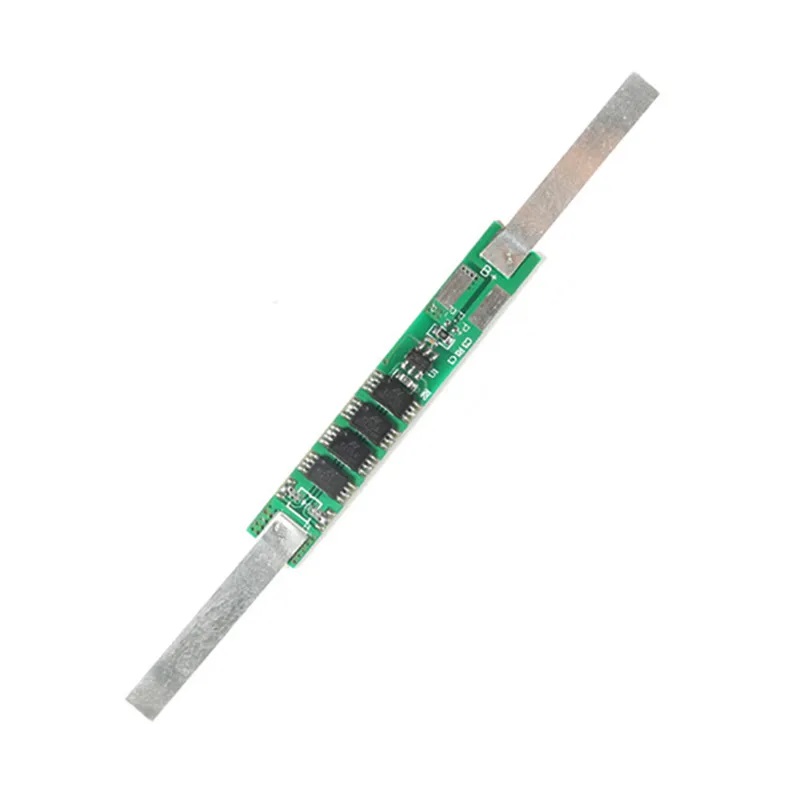

Battery Protection Circuit for Lithium-ion 3.7v 6A 4MOS 1S

Battery Protection Circuit for Lithium-ion 3.7v 6A 4MOS 1S

Li-ion batteries are widely used in various gadgets due to their high charge storage capacity. However, monitoring their charging and discharging processes is crucial to maintain battery life and prevent damage. The Battery Protection Circuit for Lithium-ion 3.7V 6A 4MOS 1S addresses this need by offering comprehensive protection features, ensuring safety and extending battery lifespan.

Package Includes:

  • 1 x Battery Protection Circuit for Lithium-ion 3.7V 6A 4MOS 1S

7.35 AED 7.35 AED Tax Included
7.35 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Designed for single-cell 3.7V Li-ion batteries
  • Supports long-lasting discharge current up to 6A
  • Low self-consumption (≤3µA per cell)
  • Overcharge protection with detection and release voltage of 3.7V ± 0.05V
  • Overcurrent protection with 6A detection current and automatic recovery
  • Short circuit protection triggered by external load with auto recovery upon disconnection
  • Temperature protection with an operating range of -20°C to 40°C
  • Main circuit conduction internal resistance ≤ 20mΩ

Specifications:

  • Charging Voltage: 3.7V
  • Charging Current: 6A
  • Overcharge Detection Voltage: 3.7V ± 0.05V
  • Overcurrent Detection Voltage: 200 ± 25mV
  • Short Circuit Detection Delay: 250µs
  • Operating Temperature Range: -20°C to 40°C
  • Internal Resistance: ≤ 20mΩ
  • Dimensions: Standard size for typical Li-ion battery setups
  • Weight: Lightweight and easy to integrate
