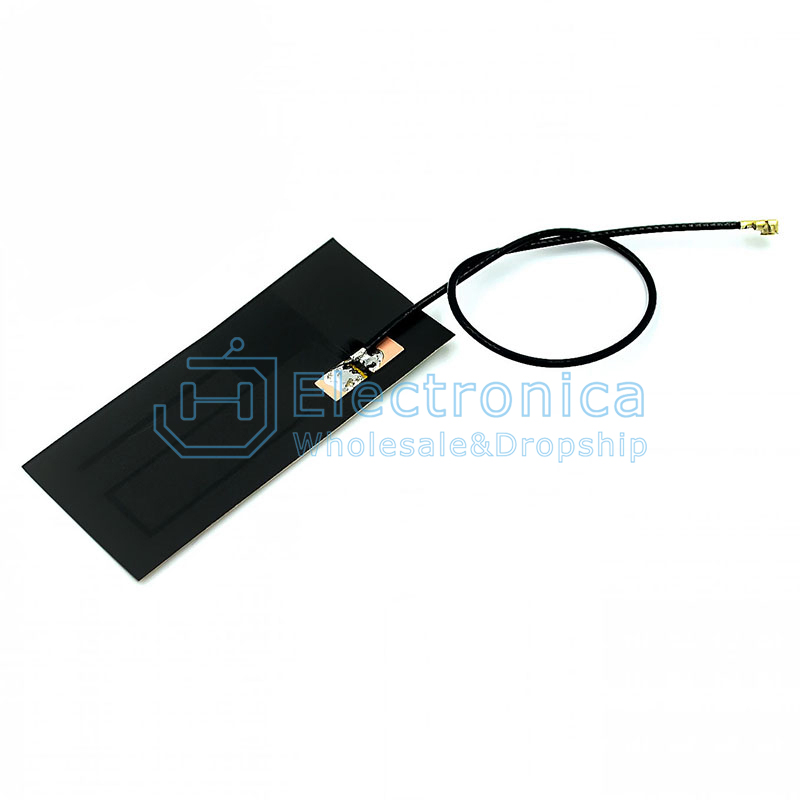

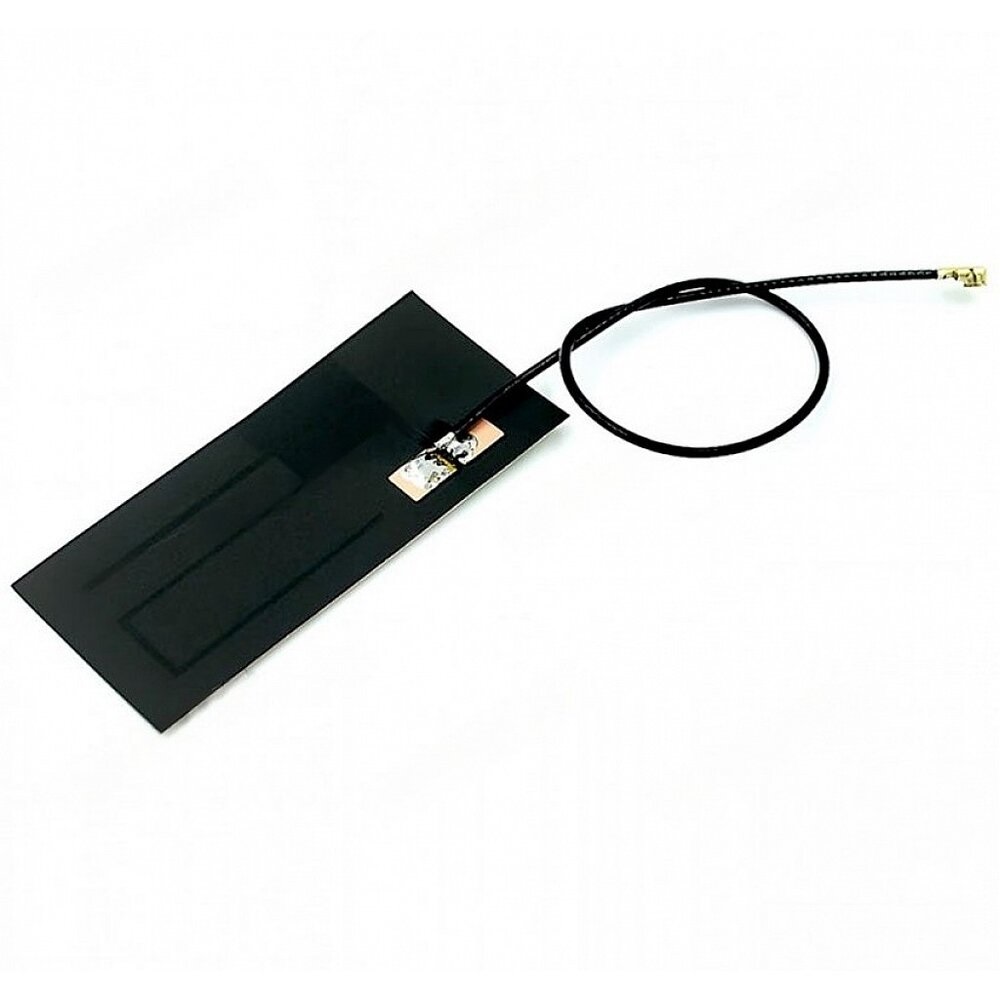

Antenna 6dBi IPEX Head GSM GPRS NB Arial Module

This compact NB antenna is designed for use with GSM, GPRS, and 3G/4G LTE wireless modules. It features an IPEX-1 connector and offers reliable performance with 6dBi gain across a wide frequency range. The antenna is ideal for IoT, NB-IoT, and embedded wireless communication projects.

Package Includes:

  • 1 × IPEX Head GSM GPRS NB Antenna

12.00 AED 12.00 AED Tax Included
12.00 AED Tax Included

Not Available For Sale

This combination does not exist.

GSM Antenna

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications (Antenna):

  • Frequency Range: 698–960 MHz / 1710–2700 MHz
  • Gain: 6dBi
  • VSWR (Voltage Standing Wave Ratio): ≤ 1.5
  • Input Impedance: 50Ω
  • Polarization Method: Vertical
  • Lightning Protection: DC Ground
  • Antenna Dimensions: 53 x 24 mm
  • Color: RF1.13 Gray

Specifications (Wire):

  • Wire Length: 12 cm
  • Connector Type: IPEX-1
  • Operating Temperature: -40℃ ~ 85℃
