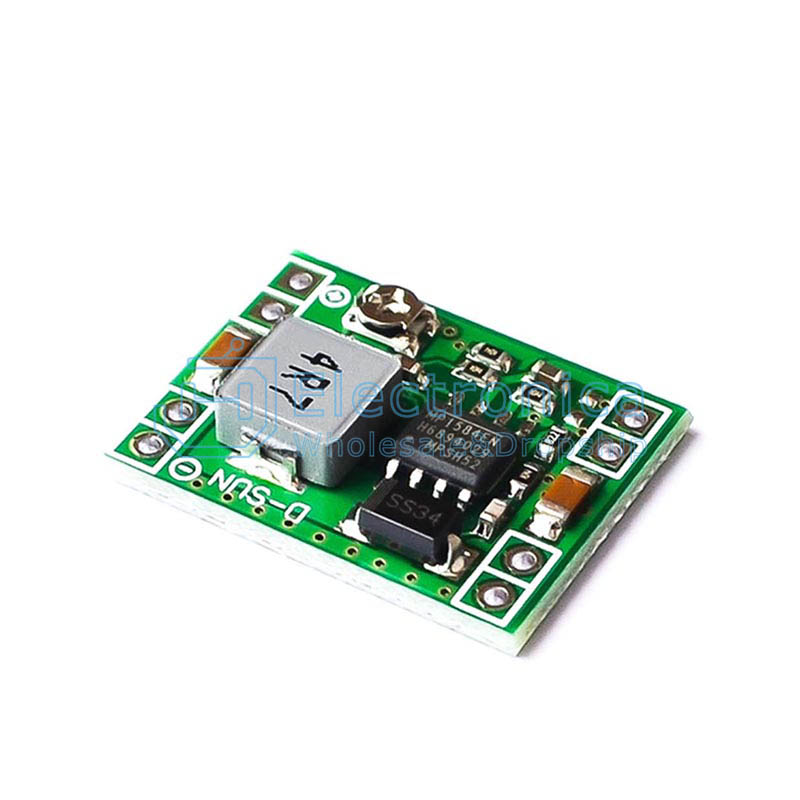

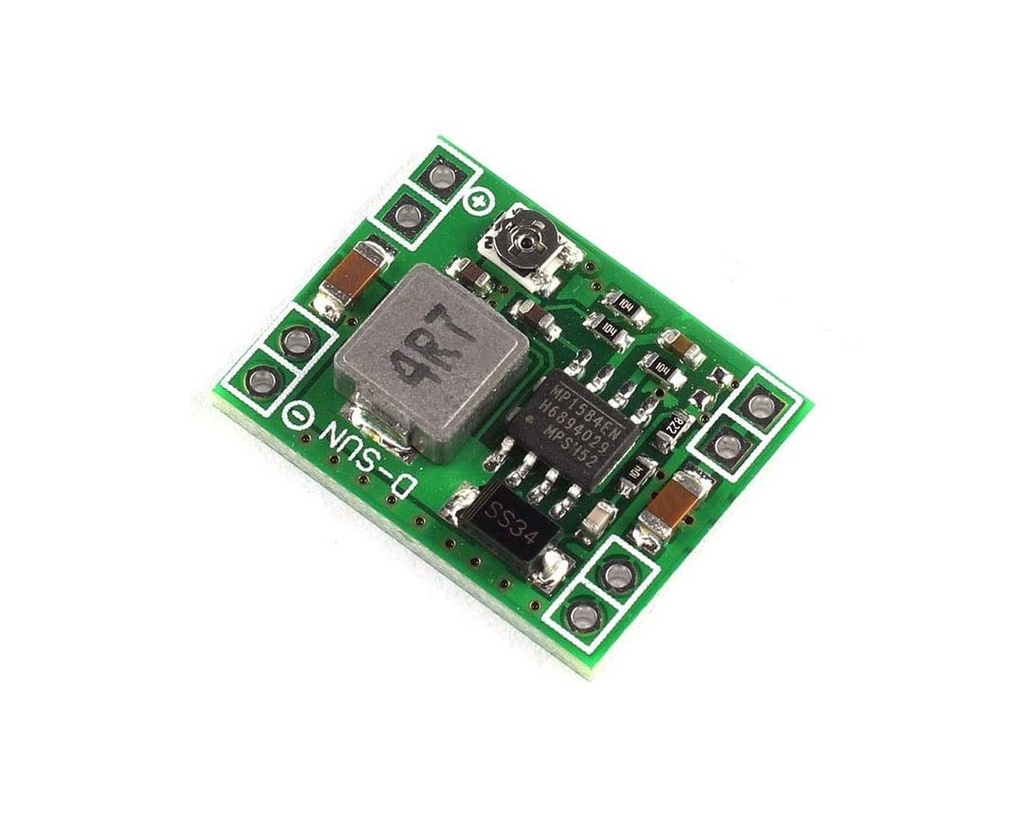

DC-DC Step Down 3A Fixed 5V Power Supply Module MP1584EN

DC-DC Step Down 3A Fixed 5V Power Supply Module MP1584EN

Ultra-small module is great for devices designed to run on USB power. Despite its small size, it is surprisingly powerful. It uses synchronous rectification for higher efficiency and less heat, allowing it to reach current ratings found in much larger regulators. The output voltage is fixed at 5V for accuracy and ease of use.

Note: Do not exceed the input voltage or maximum output current. Avoid back feeding power through the module and do not apply reverse polarity voltage.

12.60 AED 12.60 AED Tax Included
12.60 AED Tax Included

Not Available For Sale

This combination does not exist.

Buck Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • 5V fixed output non-isolated DC buck voltage regulator
  • Ultra-small module size: 22 x 17 x 4 mm
  • Designed for devices running on USB power
  • Input Voltage: 4.5-28V
  • Output Voltage: 5V
  • Peak Current: 3A
  • Sustained Current: 1.5A
  • Efficiency: Up to 92% (depends on input-output voltage difference)
  • Synchronous rectification for efficient power conversion
  • Switching Frequency: 1.0 MHz
  • Ripple Voltage: <30mV (no load)
  • IC: MP1584
