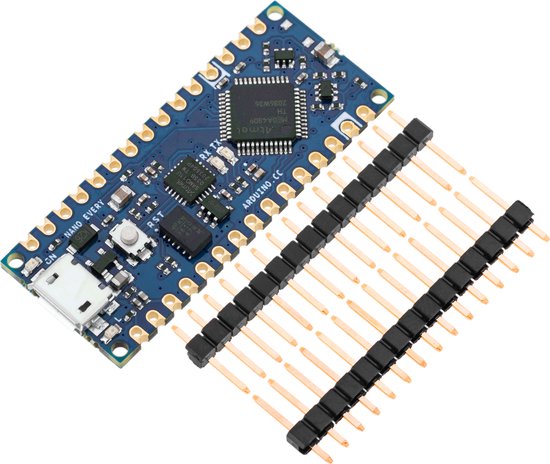

Arduino Nano Every Board

Arduino Nano Every Board

The Arduino Nano Every is an upgraded version of the classic Arduino Nano, delivering enhanced performance in a compact and affordable form factor. Measuring 45 x 18 mm, it’s one of Arduino’s smallest and most versatile 5V boards—ideal for wearable electronics, low-cost robotics, electronic instruments, and small-scale control systems.

Powered by a high-performance ATMega4809 microcontroller, it provides significantly more memory and processing power, allowing for larger, more complex programs. It features full pin compatibility with the original Nano, and introduces a modern micro-USB port for improved ease of use.

Package Includes

  • 1 x Arduino Nano Every Microcontroller Board (with pre-soldered headers)

85.00 AED 85.00 AED Tax Included
85.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Arduino Nano Board
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Features

  1. Compact and Lightweight
    • Size: 45 mm x 18 mm
    • Weight: 5 grams (with headers)
  2. Powerful Processing
    • Microcontroller: ATMega4809
    • Clock Speed: 20 MHz
  3. More Memory for Larger Projects
    • Flash Memory: 48KB
    • SRAM: 6KB
    • EEPROM: 256 bytes
  4. Improved Connectivity
    • Modern micro-USB connector
    • Pin-compatible with original Arduino Nano
  5. Versatile Power Input
    • Operating Voltage: 5V
    • VIN Input: 7V – 21V
  6. Support for Advanced Projects
    • Supports PWM, analog I/O, and external interrupts
    • Built-in LED on pin 13
    • Interfaces: UART, SPI, I2C

Specifications

Specification Details
Microcontroller ATMega4809
Operating Voltage 5V
VIN Input Voltage Range 7V – 21V
DC Current Per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Clock Speed 20 MHz
Flash Memory 48KB
SRAM 6KB
EEPROM 256 bytes
PWM Pins 5 (D3, D5, D6, D9, D10)
Analog Input Pins 8 (10-bit ADC)
Analog Output Pins PWM only (no DAC)
External Interrupts All digital pins
UART 1
SPI 1
I2C 1
Built-In LED Pin 13
USB Interface ATSAMD11D14A
Dimensions 45 mm x 18 mm
Weight 5 grams (with headers)

Applications

  • Wearable Electronics: Ideal for compact, lightweight clothing-based devices.
  • Low-Cost Robotics: Great for small robots, arms, or automation systems.
  • Prototyping & DIY Projects: Suitable for standalone or embedded use in larger systems.
  • Electronic Musical Instruments: Useful for synths, MIDI controllers, and interactive music tools.
  • Home Automation: Enables smart home and IoT automation projects.
  • Educational Tools: Perfect for learning and teaching coding and electronics.

Pinout

Arduino Nano Every Pinout

  • Power Pins:
    • VIN: 7-21V external input
    • 5V: Regulated 5V output
    • 3.3V: Output (max 50 mA)
    • GND: Ground
  • Digital Pins (D0–D13): General-purpose I/O with PWM, interrupts, and comms support
  • PWM Pins: D3, D5, D6, D9, D10
  • Analog Pins (A0–A7): 10-bit resolution analog inputs
  • Communication Pins:
    • UART: TX (D1), RX (D0)
    • SPI: D10 (SS), D11 (MOSI), D12 (MISO), D13 (SCK)
    • I2C: A4 (SDA), A5 (SCL)
  • Built-In LED: Pin 13





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
