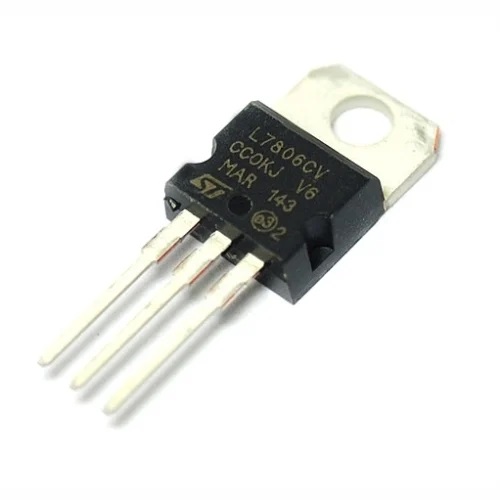

DC-DC Voltage Regulator IC 6V 1.5A L7806
The L7806 is a linear integrated circuit positive voltage regulator that outputs a fixed 6V with an output current up to 1.5A. It features built-in overload and short-circuit protection and comes in a TO-220 package, making it suitable for a wide range of electronic applications. These regulators are ideal for providing local on-board regulation and eliminating issues associated with single-point regulation.
Package Includes:
- 1 x DC-DC Voltage Regulator IC 6V 1.5A L7806
Specifications:
Maximum Ratings
| Parameter | Description | Value |
|---|---|---|
| VIN | Maximum Input Voltage | 35V |
| IO | Maximum Output Current | 1.5A (Typical) |
| IMAX | Peak Surge Current (typ) | 2.2A |
Operating Ratings
| Parameter | Description | Value |
|---|---|---|
| VO | Output Voltage | 6.0V ±2% |
| VI – VO | Drop-out Voltage | 2.0V (typical) |
Package Details
- Package: TO-220
- Package Type: Plastic Tab, 3-lead, through hole
- Manufacturer: ST
- Datasheet: L7806
Pinout of the IC:
