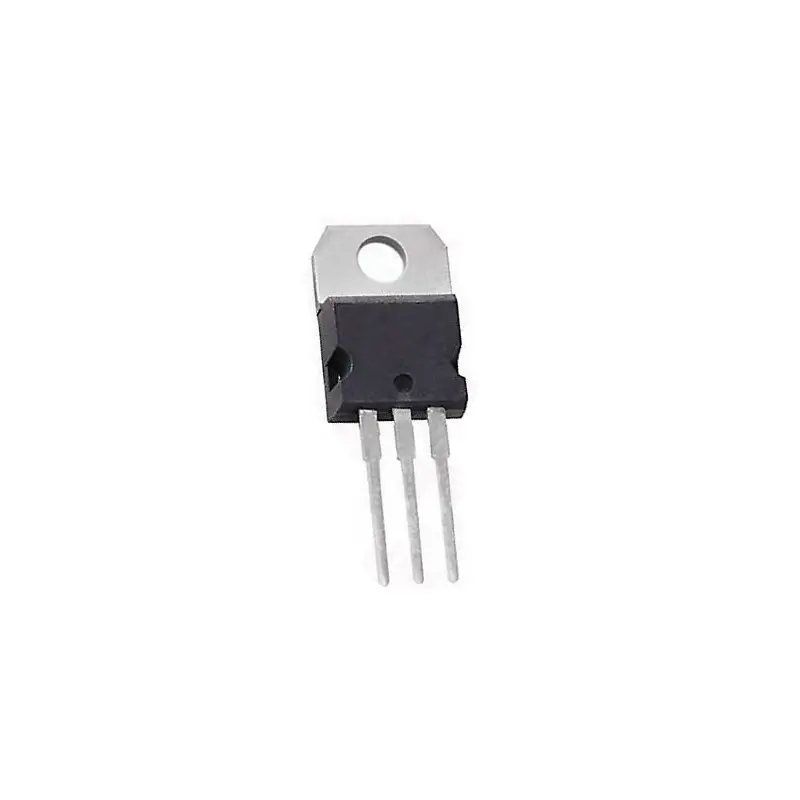

DC-DC Voltage Regulator IC 24V 1.5A L7824
Linear integrated circuit positive voltage regulator with output current up to 1.5A. The output voltage is fixed at 24V and it features both overload and short circuit protection. Available in a TO-220 package, this regulator is widely used for various commercial applications. It provides local on-board voltage regulation, minimizing distortion from centralized regulation systems.
Package Includes:
- 1 x DC-DC Voltage Regulator IC 24V 1.5A L7824
Specifications:
- Package: TO-220 and other packages
- Output current: 1A to 1.5A
- Built-in short circuit shutdown function
- Built-in overheat shutdown function
- Reliable and long life
- Low cost and easily available
- Ideal for use in commercial equipment
- Output voltage: 24V
- Output transition SOA protection
- Output voltage tolerance: ±2%
- Maximum input voltage: 35V
Pinout of the IC:
Specifications:
- Package: TO-220 and other packages
- Output current: 1A to 1.5A
- Built-in short circuit shutdown function
- Built-in overheat shutdown function
- Reliable and long life
- Low cost and easily available
- Ideal for use in commercial equipment
- Output voltage: 24V
- Output transition SOA protection
- Output voltage tolerance: ±2%
- Maximum input voltage: 35V
Pinout of the IC:
