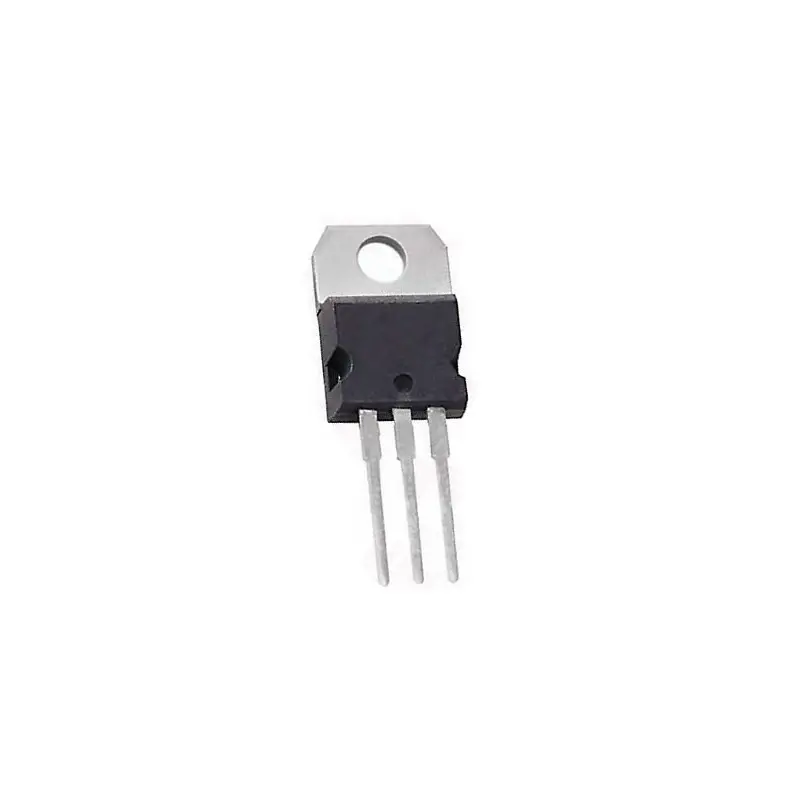

DC-DC Voltage Regulator IC 10V 1.5A L7810
Linear integrated circuit positive voltage regulator with output current up to 1.5A. The output voltage is fixed at 10V and it features overload and short circuit protection. Available in a TO-220 package, this regulator is useful in a wide range of applications. It provides local on-board regulation, reducing distortion associated with single-point regulation.
Package Includes:
- 1 x DC-DC Voltage Regulator IC 10V 1.5A L7810
Specifications:
- Package: TO-220 and other packages
- IC: L7810
- Output voltage: 10V
- Maximum input voltage: 35V
- Output current: 1A to 1.5A
- Built-in short circuit shutdown function
- Built-in overheat shutdown function
- Reliable and long life
- Low cost and easily available
- Ideal for use in commercial equipment
- Output transition SOA protection
- 2% output voltage tolerance
Pinout of the IC:
