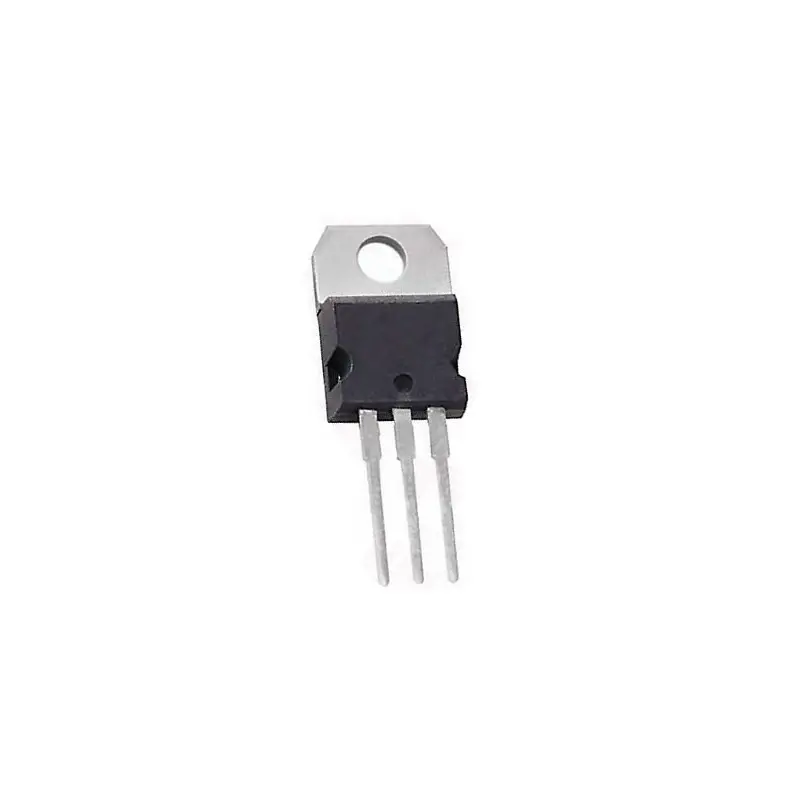

DC-DC Voltage Regulator IC 8V 1.5A L7808
Linear integrated circuit positive voltage regulator with output current up to 1.5A. The output voltage is fixed at 8V and it features overload and short circuit protection. Available in a TO-220 package, it is useful in a wide range of applications. These regulators provide local on-board regulation, eliminating distortion issues from single-point regulation.
Package Includes:
- 1 x DC-DC Voltage Regulator IC 8V 1.5A L7808
Specifications:
- TO-220 Package
- Up to 1.5A output current
- Accurate and fixed 8V output
- Maximum input voltage: 10V to 35V DC
- Low standby current: only 8mA
- Built-in short circuit shutdown function
- Built-in overheat shutdown function
- Reliable and long life
- Low cost and easily available
- Ideal to use in commercial equipment
Pinout of the IC:
Specifications:
- TO-220 Package
- Up to 1.5A output current
- Accurate and fixed 8V output
- Maximum input voltage: 10V to 35V DC
- Low standby current: only 8mA
- Built-in short circuit shutdown function
- Built-in overheat shutdown function
- Reliable and long life
- Low cost and easily available
- Ideal to use in commercial equipment
Pinout of the IC:
