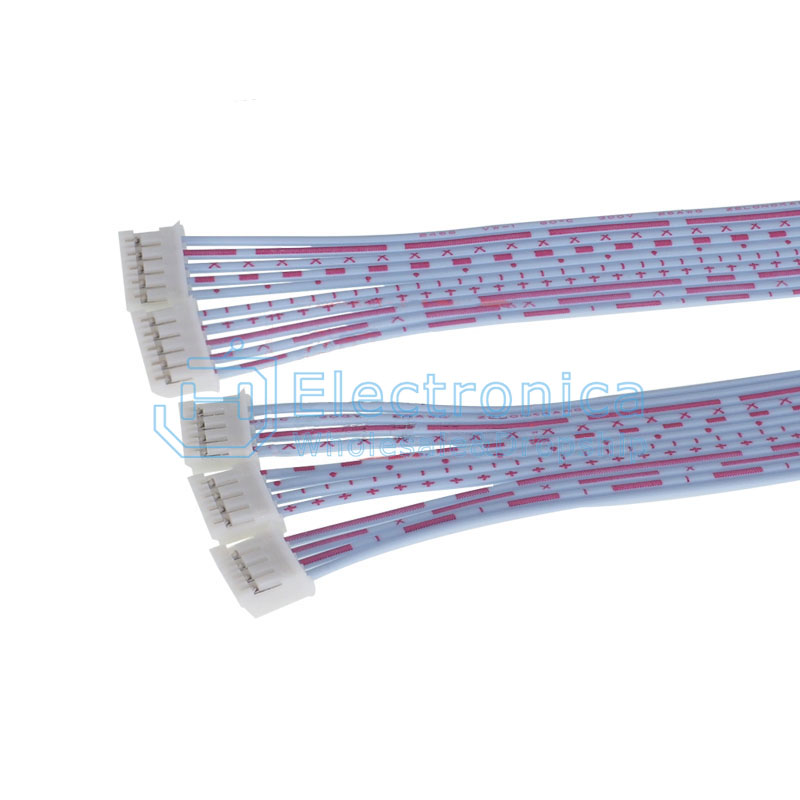

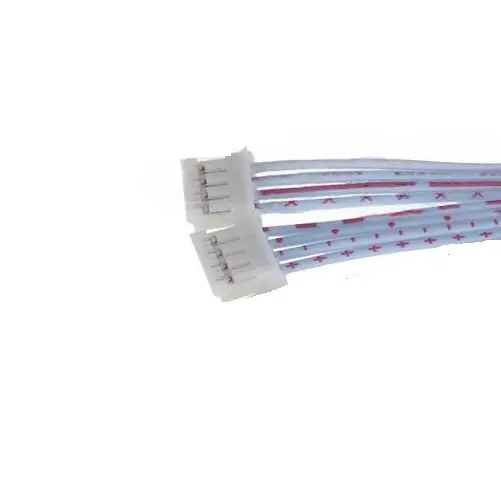

Cable Connector 4Pin PH 2.0mm Double Female Head Red-White 20cm DuPont Terminal Wire

This 4Pin Double Female Head JST PH 2.0mm Electronic Wire is ideal for various electronic applications such as LED lighting, electrical tools, circuit boards, instruments, and internal device connections. It features a tinned copper wire core that ensures excellent conductivity and corrosion resistance for stable, long-lasting performance. The cable is insulated with high-quality PA66 material, offering flame-retardant, dustproof, and anti-corrosion protection. The 20cm length and 2.0mm pitch provide a secure and precise connection.

Package Includes:

  • 1 × 4Pins PH 2.0 Red White Electronic Wire

3.60 AED 3.60 AED Tax Included
3.60 AED Tax Included

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

  • Type: JST PH 2mm Connector
  • Pins: 4 Pin
  • Length: 20 cm
  • Cable: 26 AWG
  • Style: Double Female Head
  • Pitch: 2.0 mm
  • Color: Red and White
  • Feature: JST PH 2.0 4 Pins Female Wire Cable Connector 200mm





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
