Raspberry Pi pHAT Maker - Simplifying Raspberry Pi for Education

Raspberry Pi pHAT Maker - Simplifying Raspberry Pi for Education

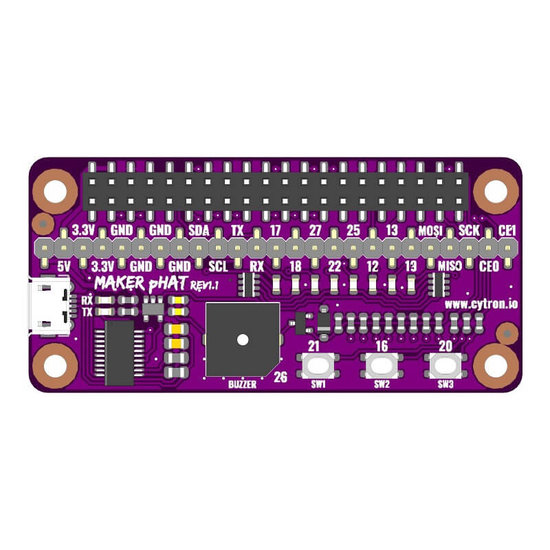

When trying to learn how to use and program electronics with Raspberry Pi, learners – whether in a classroom setting or at home – face some typical problems. First, you need access to a keyboard and monitor. Second, there’s the sometimes tricky business of attempting to create electronic circuits from separate components without getting it wrong and the possibility of ‘magic smoke.’ Then, if your project doesn’t work, it’s hard to tell whether it’s because your wiring or code isn’t right, or maybe both. This isn’t helped by the difficulty of identifying the correct GPIO pins on Raspberry Pi, as they’re unlabelled. Cytron’s Maker pHAT attempts to solve these issues and make it a lot simpler to get started with physical computing on Raspberry Pi. The cool-looking purple PCB has some common components already on board and connected to certain GPIO pins. Along with three small push-buttons, there’s an active buzzer and eight tiny LEDs – we were slightly disappointed that they’re all blue and not a range of colors. A nice touch is the inclusion of a fully labeled, 24-pin breakout header for connecting external components when you’re done playing with the onboard ones.

Package Includes:

  • 1 x Maker pHAT
  • 1 x 2x20 Stacking Header

84.50 AED 84.50 AED Tax Included
84.50 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Raspberry Pi Zero size, stack perfectly onto Pi Zero Series of SBC (Single Board Computer).
  • Compatible with standard size Raspberry Pi 3B/3B+/4B1GB/4B2GB/4B4GB, medium size Raspberry Pi 3A+ and smaller size Raspberry Pi Zero/W/WH.
  • Standard Raspberry Pi GPIO footprint.
  • LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19).
  • 3x onboard programmable push buttons (GPIO 21, 19 and 20, need to configure as input pull-up).
  • Onboard active buzzer (GPIO 26).
  • Proper label for all GPIOs, including SPI, UART, I2C, 5V, 3.3V, and GND.
  • Utilize USB Micro-B socket for 5V input and USB to UART communication.
  • USB serial facilitated by the CH340, Rev1.10 uses FT231X as the USB to UART.
  • Input voltage: USB 5V, from the computer, power bank or standard USB adapter.
  • PURPLE PCB!

Pinout:

Maker pHAT Pinout

Maker pHAT is compatible with:

  • Raspberry Pi Zero V1.3 (will need to solder 2x20 header pin - NOT included can consider Straight Pin Header (Male) 2x40 Ways)
  • Raspberry Pi Zero W (will need to solder 2x20 header pin - NOT included can consider Straight Pin Header (Male) 2x40 Ways)
  • Raspberry Pi Zero WH (Ready for plug and use)
  • Raspberry Pi 1 Model A+ (Will need 2x20 stacking header)
  • Raspberry Pi 3 Model A+ (Will need 2x20 stacking header)
  • Raspberry Pi 3 Model B (Will need 2x20 stacking header)
  • Raspberry Pi 3 Model B+ (Will need 2x20 stacking header)
  • Raspberry Pi 4 Model B 1GB (Will need 2x20 stacking header)
  • Raspberry Pi 4 Model B 2GB (Will need 2x20 stacking header)
  • Raspberry Pi 4 Model B 4GB (Will need 2x20 stacking header)
