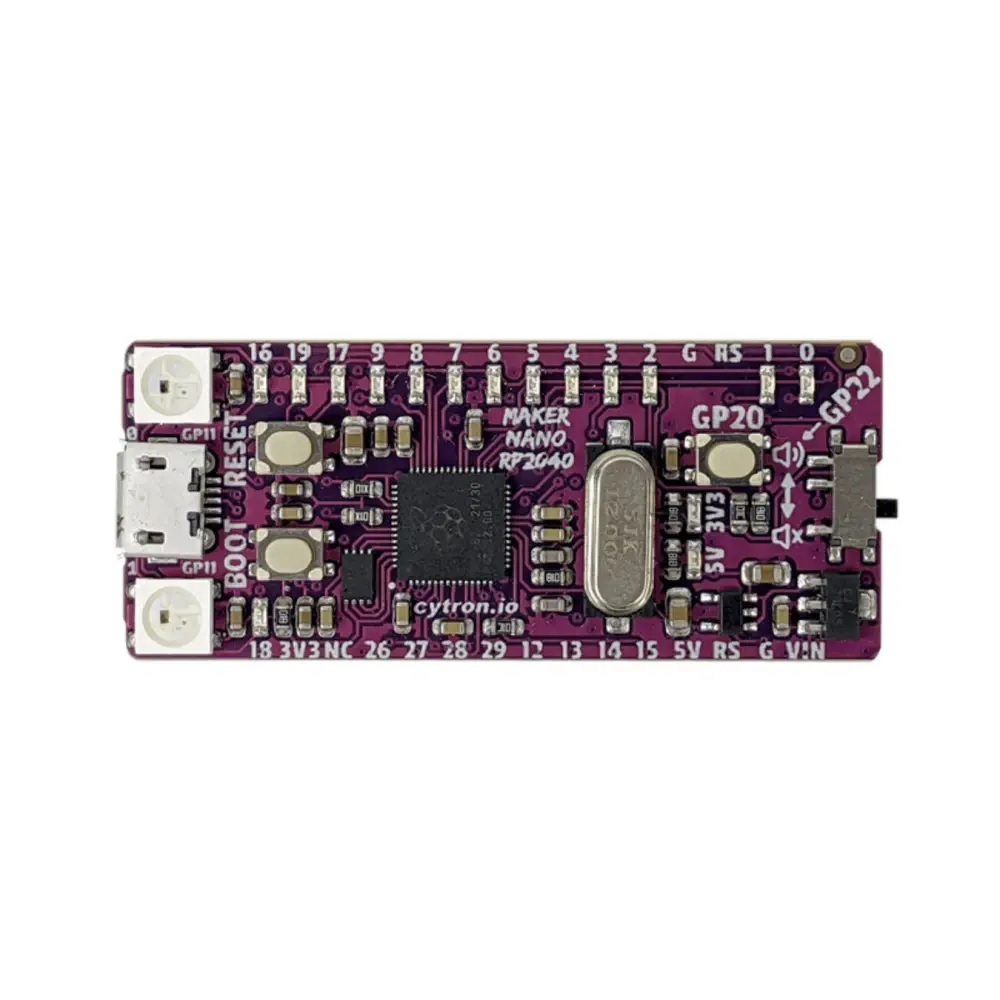

Raspberry Pi Nano RP2040 Maker: Simplifying Projects With RP2040
Looking for a small but powerful MCU for your project? Arduino Nano can't satisfy you anymore? We have the Maker Nano RP2040 for you. Same Arduino Nano form factor, but is powered by a much more powerful RP2040 MCU from Raspberry Pi. This also means that it's compatible with most of the daughterboards for Arduino Nano in the market. Not to forget it's also breadboard friendly to allow building your own circuit.
Important Note:
* The IO voltage is only 3.3V and it's not 5V compatible.* There are only four ADC inputs (A0 - A3) on the Maker Nano RP2040 instead of eight on the Arduino Nano.
Package Includes:
- 1 x Maker Nano RP2040
- 2 x Grove to JST-SH (Qwiic / STEMMA QT) Cable
Features:
- Arduino Nano form factor
- Powered by Raspberry Pi RP2040
- Dual-core Arm Cortex-M0+ processor
- 264KB internal RAM
- 2MB of Flash memory
- Same specifications as Raspberry Pi Pico
- 14x Status indicator LEDs for GPIOs
- 1x Piezo buzzer with mute switch
- 1x Push button
- 2x RGB LEDs (WS2812 Neopixel)
- 2x Maker Ports, compatible with Qwiic, STEMMA QT, Grove (via conversion cable)
- Support Arduino IDE, CircuitPython and MicroPython
Pinout:
Features:
- Arduino Nano form factor
- Powered by Raspberry Pi RP2040
- Dual-core Arm Cortex-M0+ processor
- 264KB internal RAM
- 2MB of Flash memory
- Same specifications as Raspberry Pi Pico
- 14x Status indicator LEDs for GPIOs
- 1x Piezo buzzer with mute switch
- 1x Push button
- 2x RGB LEDs (WS2812 Neopixel)
- 2x Maker Ports, compatible with Qwiic, STEMMA QT, Grove (via conversion cable)
- Support Arduino IDE, CircuitPython and MicroPython
Pinout:
