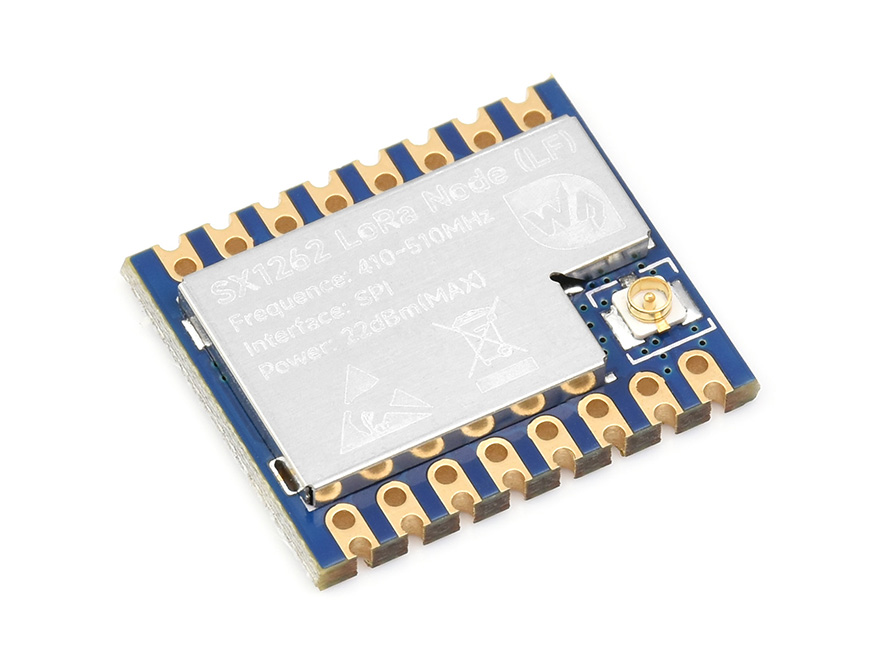

Wireless LoRa SX1262 Core1262 HF Module
The Core1262 LF/HF LoRa Module leverages the SX1262 chip to provide efficient, long-range communication with minimal interference. Compatible with Sub-GHz bands and supporting LoRa/LoRaWAN networking, this module is ideal for industrial automation, smart homes, and data acquisition projects. Its robust construction ensures reliable performance in demanding environments.
Features:
- Enhanced Performance: Equipped with the next-generation SX1262 chip for superior power efficiency and longer transmission distances compared to the SX1278.
- LoRa/LoRaWAN Connectivity: Connects easily to cloud servers via a gateway to establish LoRa/LoRaWAN networks for IoT applications.
- Versatile Applications: Suitable for industrial automation, smart homes, and data acquisition.
- Sturdy Performance: Incorporates high-quality components including TCXO (Temperature-Compensated Crystal Oscillator) for stable operation under challenging conditions.
- Development Resources: Comes with comprehensive manuals and practical examples for platforms like Raspberry Pi Pico and STM32.
Specifications:
| Version | CORE1262-HF |
|---|---|
| RF Chip | SX1262 |
| Frequency Range | HF: 850 ~ 930MHz |
| Modulation | LoRa/(G)FSK |
| Data Rate | 0.018~62.5Kbps (LoRa), 0.6~300Kbps ((G)FSK) |
| Transmit Power | 22dBm @ 3.3V |
| Spreading Factor | SF5 ~ SF12 |
| Operating Voltage | 3.3V |
| Power Consumption | Emitting: 45mA@14dBm, Receiving: 5.3mA@125KHz |
| Communication Bus | SPI |
| Operating Temperature | 0 ~ 85℃ |
| Connector | Castellated edge / solder holes, pitch 2.54mm |
| Dimensions | 21.00 × 52.00mm |
Pinout:
Applications:
- Industrial environments
- Smart home systems
- Data acquisition projects
Additional Highlights:
- Compatible with SX127x modules (SX1276 / SX1278)
- New-generation LoRa spread spectrum technology (CSS and FHSS) for long-range and anti-interference performance
- High-quality industrial-grade components for stable communication
- Two antenna connection options: IPEX / Castellated hole
- Professional shielding with ESD protection
- TCXO ensures reliable operation under extreme temperatures
