Raspberry Pi Cooling Fan Dedicated All-in-One 3007 Speed Adjustable for RPi and CM4

Raspberry Pi Cooling Fan Dedicated All-in-One 3007 Speed Adjustable for RPi and CM4

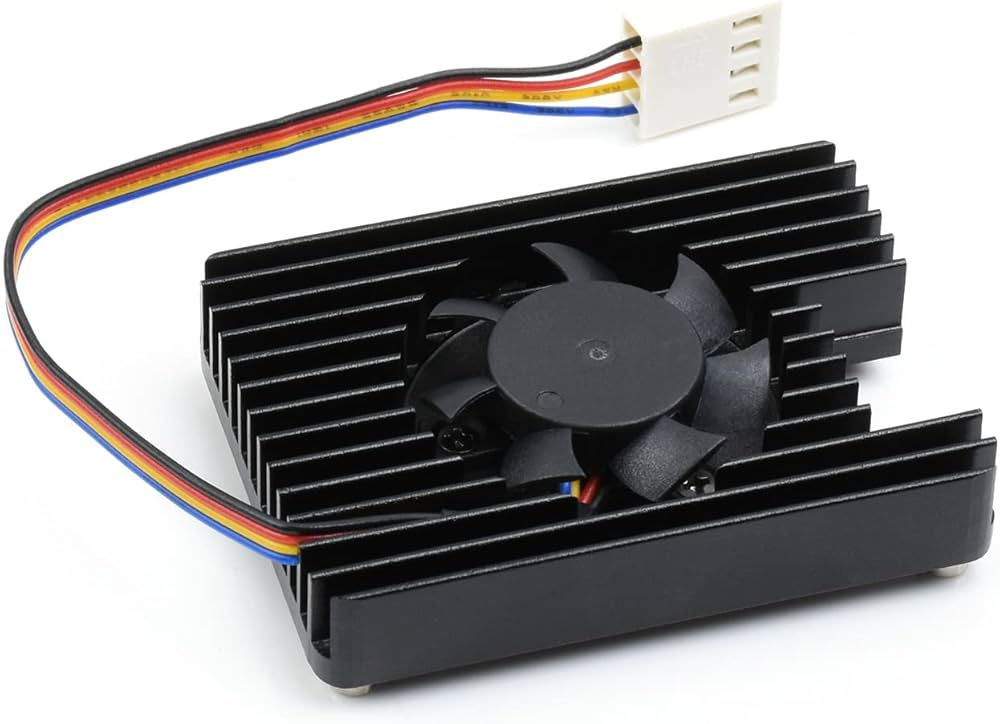

The CM4-FAN-3007-B is a low-profile, speed-adjustable cooling fan designed for the Raspberry Pi Compute Module 4. It provides efficient heat dissipation to keep your CM4 running at optimal temperature. The fan supports PWM speed adjustment for precise cooling control.

Package Includes:

  • 1 x CM4-FAN-3007-B
  • 1 x Screws and thermal tapes

Note: Raspberry Pi Board is not included.

CM4 Board and Accessories
60.00 AED 60.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Specifications:

General Low-profile, PWM speed adjustment
Interface 4-wire PWM speed-adjustable fan header
Rated Speed 8000 ±10% RPM
Rated Power 1.62W (12V, 0.135 ±0.02A)
Cable Length 125 ±10mm
Weight 0.047 kg

Highlights:

  • Tailored for Raspberry Pi CM4 with matching size and mounting holes
  • Fast heat dissipation
  • Proper space reserved for antenna section (antenna not included)
  • Easy installation with included screws and thermal tape

Visuals:

CM4 Cooling Fan Antenna space Using with CM4 Base Board Comparing CM4 cooling solutions Install fan to CM4 Install fan to CM4 + Base Board
