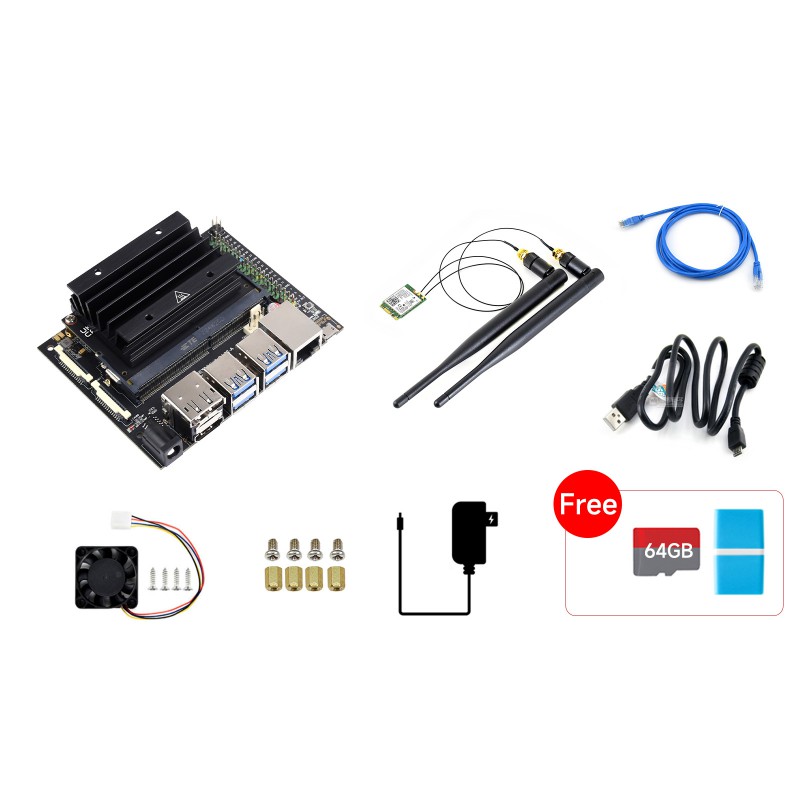

The developer kit comes with a carrier board featuring Gigabit Ethernet, USB 3.0, HDMI, MIPI-CSI camera connector, and a 40-pin GPIO header. It also includes an integrated fan and heatsink for system cooling. The Jetson Nano GPU module delivers 1 TeraFLOPS of performance and can process data from multiple high-resolution sensors simultaneously, making it suitable for developers, researchers, and makers working on AI-powered projects.
The AC8265 Dual-Mode NIC adds WiFi and Bluetooth connectivity to the Jetson Nano. Supporting both 2.4GHz and 5GHz bands, it enables faster data transfer and robust performance in dense environments. It allows wireless connection to networks and other devices, enabling data transfer, IoT networking, and decentralized communication between Jetson Nano boards.
Specifications:
| Kit Name |
JETSON-NANO-DEV-KIT |
| GPU |
128-core Maxwell |
| CPU |
Quad-core ARM A57 @ 1.43 GHz |
| Memory |
4 GB 64-bit LPDDR4 25.6 GB/s |
| Storage |
16GB eMMC + 32GB USB drive + 64GB TF card |
| Video Encoder |
250 MP/s, 1x 4K @ 30 [HEVC], 2x 1080p @ 60 [HEVC], 4x 1080p @ 30 [HEVC] |
| Video Decoder |
500 MP/s, 1x 4K @ 60 [HEVC], 2x 4K @ 30 [HEVC], 4x 1080p @ 60 [HEVC], 8x 1080p @ 30 [HEVC] |
| Camera |
2x MIPI CSI-2 DPHY lanes |
| Connectivity |
Gigabit Ethernet, M.2 Key E expansion connector |
| Display |
HDMI and DP |
| USB |
4x USB 3.0, USB 2.0 Micro-B |
| Extension Interfaces |
GPIO, I2C, I2S, SPI, UART |
| Dimensions |
100 × 80 × 29 mm |
| Other |
260-pin connector |
The developer kit comes with a carrier board featuring Gigabit Ethernet, USB 3.0, HDMI, MIPI-CSI camera connector, and a 40-pin GPIO header. It also includes an integrated fan and heatsink for system cooling. The Jetson Nano GPU module delivers 1 TeraFLOPS of performance and can process data from multiple high-resolution sensors simultaneously, making it suitable for developers, researchers, and makers working on AI-powered projects.
The AC8265 Dual-Mode NIC adds WiFi and Bluetooth connectivity to the Jetson Nano. Supporting both 2.4GHz and 5GHz bands, it enables faster data transfer and robust performance in dense environments. It allows wireless connection to networks and other devices, enabling data transfer, IoT networking, and decentralized communication between Jetson Nano boards.
Specifications:
| Kit Name |
JETSON-NANO-DEV-KIT |
| GPU |
128-core Maxwell |
| CPU |
Quad-core ARM A57 @ 1.43 GHz |
| Memory |
4 GB 64-bit LPDDR4 25.6 GB/s |
| Storage |
16GB eMMC + 32GB USB drive + 64GB TF card |
| Video Encoder |
250 MP/s, 1x 4K @ 30 [HEVC], 2x 1080p @ 60 [HEVC], 4x 1080p @ 30 [HEVC] |
| Video Decoder |
500 MP/s, 1x 4K @ 60 [HEVC], 2x 4K @ 30 [HEVC], 4x 1080p @ 60 [HEVC], 8x 1080p @ 30 [HEVC] |
| Camera |
2x MIPI CSI-2 DPHY lanes |
| Connectivity |
Gigabit Ethernet, M.2 Key E expansion connector |
| Display |
HDMI and DP |
| USB |
4x USB 3.0, USB 2.0 Micro-B |
| Extension Interfaces |
GPIO, I2C, I2S, SPI, UART |
| Dimensions |
100 × 80 × 29 mm |
| Other |
260-pin connector |
