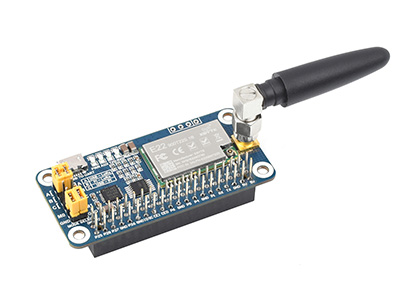

Raspberry Pi 4 SX1262 LoRa HAT 868MHz For Europe, Asia, and Africa

Raspberry Pi 4 SX1262 LoRa HAT 868MHz For Europe, Asia, and Africa

This is a Raspberry Pi LoRa HAT based on SX1262, covering the 868MHz frequency band. It allows data transmission up to 5km through the serial port. Utilizing new generation LoRa spread spectrum modulation technology, the module achieves long communication distances and supports auto-repeating for extended range. Features include Wake on Radio, wireless configuration, carrier sensing, communication key, and more. Compared with standard LoRa modules, the SX1262 LoRa HAT offers longer communication distance, higher data rate, lower consumption, improved safety, and anti-interference. Ideal for applications such as industrial control, smart home, and data collection.

Package Includes:

  • SX1262 868M LoRa HAT x1
  • USB type A plug to micro plug cable x1
  • 868MHz antenna x1

Lora 868MHz
186.00 AED 186.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Standard Raspberry Pi 40PIN GPIO extension header
  • Onboard CP2102 USB TO UART converter for serial debugging
  • UART control interface for host boards like Arduino/STM32
  • 4x LED indicators for module status
  • LoRa spread spectrum modulation, up to 81 channels, long-range, robust to interference
  • Auto multi-level repeating for ultra-long-range communication
  • Low power consumption: deep sleep and Wake on Radio
  • Customizable communication key for data security
  • LBT support to monitor signal channel noise before transmitting
  • RSSI signal intensity indication for evaluating signal quality
  • Wireless parameter configuration via commands/data packet
  • Supports fixed-point transmission, broadcast, signal channel monitoring
  • Development resources and manual included (examples for Raspberry Pi/STM32)
  • Weight: 0.069 kg

Pinout:

SX1262 LoRa HAT Pinout

  1. SX1262 LoRa module
  2. 74HC125V: voltage level translator
  3. CP2102: USB TO UART converter
  4. Raspberry Pi GPIO connector
  5. USB TO UART port
  6. UART header for connecting host boards like STM32/Arduino
  7. SMA antenna connector
  8. IPEX antenna connector
  9. Indicators: RXD/TXD, AUX, PWR
  10. UART selection jumpers: A (USB TO UART), B (Raspberry Pi), C (access Raspberry Pi via USB)
  11. LoRa mode selection jumpers: M0/M1 combinations for transmission, configuration, WOR, deep sleep

Dimensions:

SX1262 LoRa HAT Dimensions

Development Resources:

Wiki: SX1262 868M LoRa HAT

Note: This is a LoRa HAT; LoRaWAN is not supported.

Specifications:

Description SX1262 868M LoRa HAT
RF module SX1262
Frequency band 850.125 ~ 930.125MHz
Antenna 868MHz antenna (2dBi)
Radio rate 0.3kbps ~ 62.5kbps (programmable)
Transmit power 22.0dBm (10/13/17/22dBm programmable)
Receive sensitivity -147dBm (radio rate 2.4kbps)
Power consumption Transmit: 133mA, Receive: 11mA, Sleep: 2µA
Communication interface UART (TTL level)
Baudrate 1200bps ~ 115200bps (9600bps default)
Packet length 240 Byte (32/64/128/240 Byte programmable)
Cache 1000 Byte
Experimental range 5km (cloudless, wild, antenna gain 5dBi, rate 2.4kbps)
Power supply 5V
Logic level 3.3V/5V
Operating temperature -40~85℃
Applications Smart home, industrial sensors, building automation, smart meters, IoT
Applicable region Europe, Asia, Africa (confirm local LoRa bands before ordering)
