GPS L76K Module GPS, BDS,GLONASS, QZSS

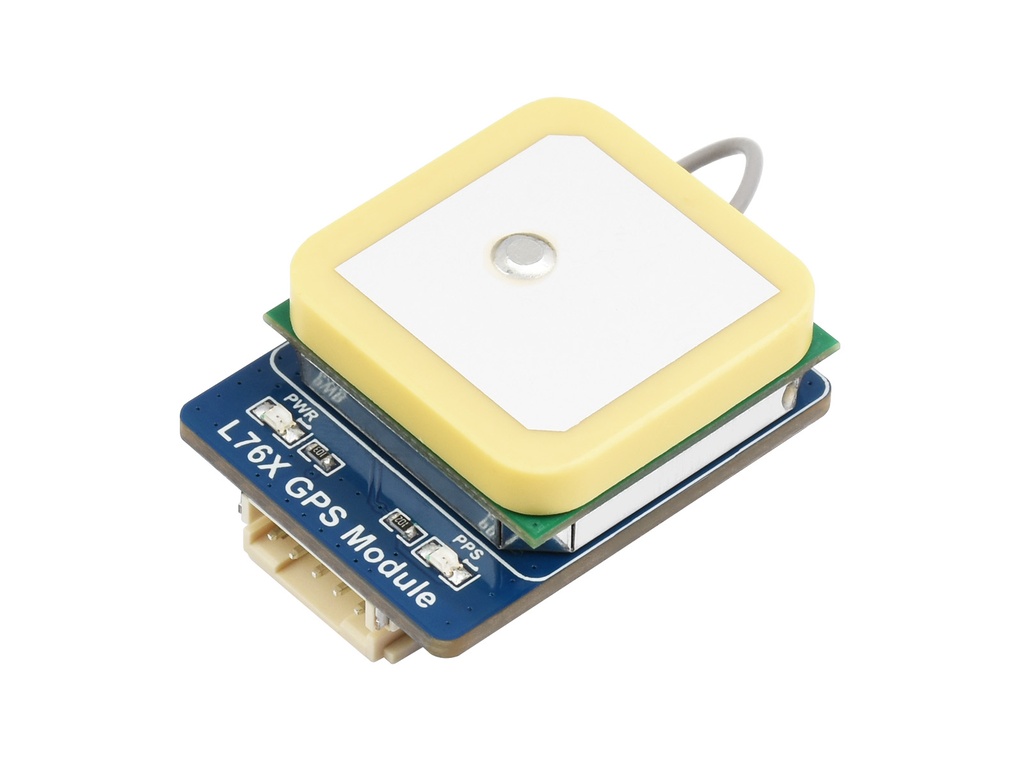

The L76K GPS Module is a Multi-GNSS (Global Navigation Satellite System) module that supports GPS, BeiDou (BDS), GLONASS, and QZSS systems, allowing multi-system combined or single-system independent positioning. It supports AGNSS function and features a built-in low-noise amplifier and SAW filter, providing fast, accurate, and high-performance positioning.
Package Includes:
- 1 x L76K GPS Module
- 1 x PH2.0 5PIN cable
Features:
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS, and QZSS
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Built-in SAW Filter for enhanced noise reduction performance
- Supports AGNSS
- Supports 1PPS
- UART communication baudrate: 4800~115200bps (9600bps by default)
- Onboard rechargeable Li battery MS621FE for preserving ephemeris information and hot starts
- 2x LEDs for indicating module working status
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Pinout:
| PIN | Definition |
|---|---|
| VCC | Power supply (3.3V/5V) |
| TX | Connect to MCU.RX (Signal direction: TX → MCU.RX) |
| RX | Connect to MCU.TX (Signal direction: MCU.TX → RX) |
| PPS | GPS status indicator |
Specifications:
| PRODUCT | L76K |
|---|---|
| GNSS | GPS/GLONASS/BDS/QZSS |
| CHIP PLATFORM | AT6558R |
| L1 BAND RECEIVER | |
| CHANNELS | 32 tracking ch / 72 acquisition ch |
| SBAS | N/A |
| A-GNSS | Support |
| SENSITIVITY | |
| ACQUISITION | -148dBm |
| RE-ACQUISITION | -160dBm |
| TRACKING | -162dBm |
| TTFF (TIME TO FIRST FIX) | |
| COLD STARTS | 30s, Autonomous; 5.5s, With AGNSS |
| WARM STARTS | - |
| HOT STARTS | 2s |
| POSITION ACCURACY | 2.0m CEP |
| SPEED ACCURACY | 0.1m/s |
| ACCELERATION ACCURACY(MAX) | 0.1m/s² |
| TIMING ACCURACY | 30ns |
| UPDATE RATE (MAX) | 5Hz |
| DEFAULT BAUDRATE | 9600bps |
Features:
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS, and QZSS
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Built-in SAW Filter for enhanced noise reduction performance
- Supports AGNSS
- Supports 1PPS
- UART communication baudrate: 4800~115200bps (9600bps by default)
- Onboard rechargeable Li battery MS621FE for preserving ephemeris information and hot starts
- 2x LEDs for indicating module working status
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Pinout:
| PIN | Definition |
|---|---|
| VCC | Power supply (3.3V/5V) |
| TX | Connect to MCU.RX (Signal direction: TX → MCU.RX) |
| RX | Connect to MCU.TX (Signal direction: MCU.TX → RX) |
| PPS | GPS status indicator |
Specifications:
| PRODUCT | L76K |
|---|---|
| GNSS | GPS/GLONASS/BDS/QZSS |
| CHIP PLATFORM | AT6558R |
| L1 BAND RECEIVER | |
| CHANNELS | 32 tracking ch / 72 acquisition ch |
| SBAS | N/A |
| A-GNSS | Support |
| SENSITIVITY | |
| ACQUISITION | -148dBm |
| RE-ACQUISITION | -160dBm |
| TRACKING | -162dBm |
| TTFF (TIME TO FIRST FIX) | |
| COLD STARTS | 30s, Autonomous; 5.5s, With AGNSS |
| WARM STARTS | - |
| HOT STARTS | 2s |
| POSITION ACCURACY | 2.0m CEP |
| SPEED ACCURACY | 0.1m/s |
| ACCELERATION ACCURACY(MAX) | 0.1m/s² |
| TIMING ACCURACY | 30ns |
| UPDATE RATE (MAX) | 5Hz |
| DEFAULT BAUDRATE | 9600bps |
