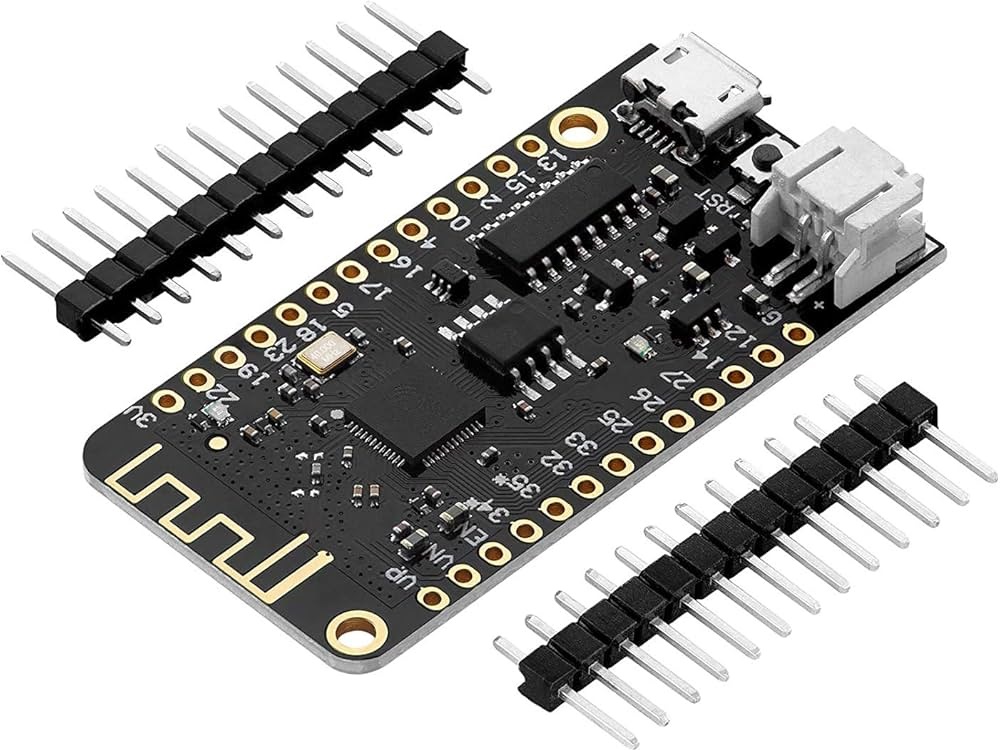

ESP32 V1.0.0 Rev1 4MB Flash Module (Lolin32 Compatible)

ESP32 V1.0.0 Rev1 4MB Flash Module (Lolin32 Compatible)

The ESP32 V1.0.0 Rev1 is a high-performance Wi-Fi and Bluetooth module built around the powerful ESP32 microcontroller. It features 4MB of FLASH memory and is fully compatible with the Arduino platform, making it ideal for a variety of wireless applications, including home automation, IoT projects, and more.

Package Includes:

  • 1 x ESP32 V1.0.0 Rev1 Wi-Fi Bluetooth 4MB FLASH Module
  • 2 x Pin Headers

42.00 AED 42.00 AED Tax Included
42.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • 4MB FLASH Memory: Ample storage for code, web content, and data logging.
  • High-Performance Processor: Dual-core processor running at up to 240 MHz for powerful computing tasks.
  • Integrated Wi-Fi and Bluetooth: Supports 802.11 b/g/n/e/i Wi-Fi and Bluetooth v4.2 (including BLE).
  • Arduino Compatible: Seamlessly integrates with the Arduino IDE and ecosystem.
  • Versatile Applications: Ideal for smart home projects, wireless communication, and embedded systems.

Specifications:

  • Processor: Dual-core, 240 MHz
  • Flash Memory: 4MB
  • Wi-Fi: 802.11 b/g/n/e/i
  • Bluetooth: v4.2 and BLE
  • Operating Voltage: 3.3V
  • I/O Voltage: 3.3V
  • Operating Temperature: -40°C to +85°C
  • Antenna: PCB Antenna
  • Weight: 2.5g

Pinout:

ESP32 Pinout

  • Digital I/O: 17 pins
  • Analog Inputs: 8 pins
  • Serial Communication: TX, RX, RTS
  • I2C Communication: SDA, SCL
  • SPI Communication: MISO, MOSI, SCK, CS
  • I2S Communication: 1 pin
  • Micro-USB: For power and programming
  • Reset Button: Module reset
  • Boot Button: Bootloader/flash mode
  • Onboard LED: Status indicator
  • 3.3V Power Output: For powering peripherals
  • GND: Ground connection

Applications:

  • Home Automation
  • IoT Devices and Smart Projects
  • Wireless Sensor Networks
  • Industrial Automation
  • Wearable and Mobile Devices
