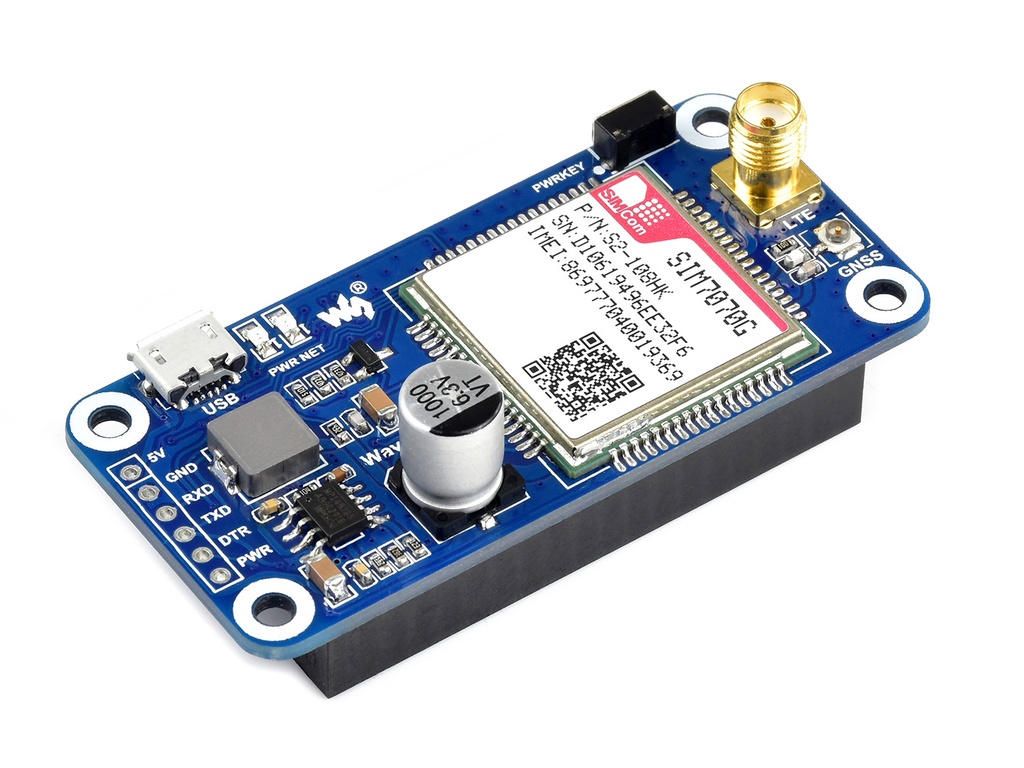

Raspberry Pi GlobalConnect SIM7070G NB-IoT/Cat-M/GPRS/GNSS HAT

Raspberry Pi GlobalConnect SIM7070G NB-IoT/Cat-M/GPRS/GNSS HAT

The Raspberry Pi GlobalConnect SIM7070G HAT is a powerful telecommunication module designed for Raspberry Pi. It supports global bands of NB-IoT, Cat-M, and GPRS along with GNSS positioning (GPS, BeiDou, GLONASS, Galileo), making it ideal for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and e-health.

Package Includes:

  1. SIM7070G Cat-M/NB-IoT/GPRS HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB-A to Micro-B cable x1
  5. Standoffs pack x1

209.00 AED 209.00 AED Tax Included
209.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Compared to the SIM7080G, this module also supports GPRS (2G), and compared to the SIM7000C/E, it is more generic due to its support for global bands. It features a standard Raspberry Pi 40PIN GPIO extension header for compatibility with all Raspberry Pi boards, supports multiple communication protocols, and includes an onboard USB interface for testing AT commands and GPS positioning. Breakout UART pins enable connectivity with Arduino/STM32. The SIM card slot supports only 1.8V SIM cards. Two LED indicators provide status monitoring. It comes with development resources and examples for Raspberry Pi, Arduino, and STM32.



Features:

  • Standard Raspberry Pi 40PIN GPIO extension header
  • Supports TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  • Onboard USB interface for AT commands and GPS positioning
  • Breakout UART control pins for Arduino/STM32
  • SIM card slot supports ONLY 1.8V SIM cards
  • 2x LED indicators for monitoring
  • Baudrate: 300~3686400 bps
  • Auto baud rate: 9600/19200/38400/57600/115200 bps
  • Includes development resources and manuals

Specifications:

NB-IoT/Cat-M/2G

Band NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Data rate NB-IoT: 136Kbps(DL)/150Kbps(UL)
Cat-M: 589Kbps(DL)/1119Kbps(UL)
GPRS: 85.6Kbps(DL/UL)
EDGE: 236.8Kbps(DL/UL)
SIM card support NB-IoT/Cat-M/2G card (1.8V SIM ONLY)
Applicable region Global

GNSS

Satellite systems GPS, BeiDou, GLONASS, Galileo
Receiver type 16-channel, C/A Code
Bands GPS L1: 1575.42 ± 1.023MHz
GLONASS L1: 1598.0625 ~ 1605.375MHz
BDS B1: 1559.052 ~ 1591.788MHz
Galileo L1: 1575.42 ± 1.023MHz
Data format NMEA-0183
Antenna Active antenna

Other

Power supply 5V
Operating voltage 5V / 3.3V (configured via 0Ω resistor)
Current consumption ~41mA (idle mode)
Operating temperature -40°C ~ 85°C
Storage temperature -45°C ~ 90°C
Dimensions 30.50mm × 65.00mm

Pinout:

SIM7070G HAT Pinout

  1. Standard Raspberry Pi 40PIN GPIO extension header
  2. Supports TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  3. Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  4. Onboard USB interface for AT Commands and GPS positioning
  5. Breakout UART control pins for Arduino/STM32
  6. SIM card slot supports ONLY 1.8V SIM card
  7. 2x LED indicators
  8. Baudrate: 300~3686400 bps
  9. Auto baud rates: 9600/19200/38400/57600/115200 bps
  10. Includes development resources and manuals
