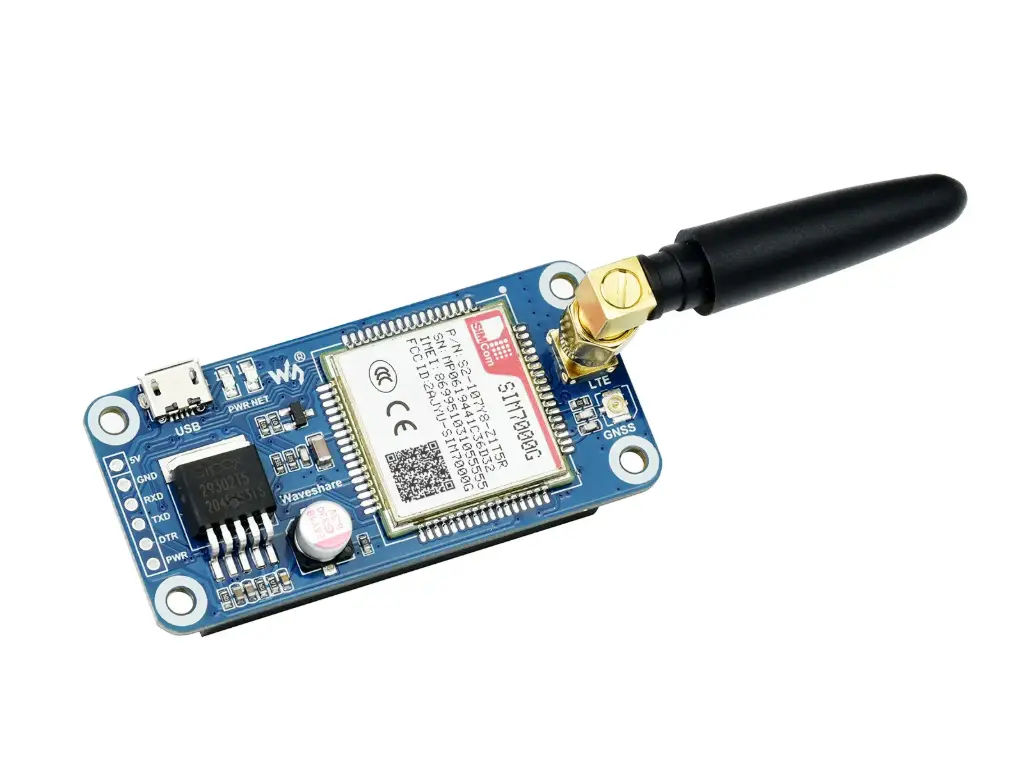

Raspberry Pi GlobalConnect SIM7000G NB-IoT/Cat-M/EDGE/GPRS HAT with GNSS and Global Band Support

Raspberry Pi GlobalConnect SIM7000G NB-IoT/Cat-M/EDGE/GPRS HAT with GNSS and Global Band Support

The SIM7000G NB-IoT HAT is a powerful telecommunication module designed for the Raspberry Pi, supporting global bands of NB-IoT, Cat-M, and GPRS. It also offers GNSS positioning (GPS, BeiDou, GLONASS), making it an ideal solution for IoT applications such as asset tracking, remote monitoring, and e-health.

Package Includes:

  • 1 x SIM7000G NB-IoT HAT
  • 1 x GSM Antenna
  • 1 x GPS External Antenna (B)
  • 1 x USB-A to Micro-B Cable
  • 1 x Standoffs Pack

242.00 AED 242.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

  • Compatible with all Raspberry Pi series via 40PIN GPIO extension header
  • Supports communication protocols: TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
  • GNSS support: GPS, BeiDou, GLONASS
  • Onboard USB interface for AT Commands, GPS data, and testing
  • Breakout UART pins for use with Arduino, STM32, etc.
  • Onboard voltage translator (3.3V default, switchable to 5V via 0Ω resistor)
  • SIM card slot supports both normal and NB-IoT SIM cards
  • 2x LED indicators for power and network status
  • Baudrate: 300bps~3686400bps (default: 115200bps)
  • Control via AT Commands (3GPP TS 27.007, 27.005, SIMCOM enhanced)
  • Supports SIM Application Toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
  • Comes with development resources and examples for Raspberry Pi, Arduino, and STM32

Specifications:

NB-IoT / CAT-M / 2G

Frequency Bands NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28
Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39
GPRS/EDGE: 850, 900, 1800, 1900MHz
Data Rate NB-IoT: 34 (DL) / 66 (UL)
Cat-M: 300 (DL) / 375 (UL)
EDGE: 236.8 (DL/UL)
GPRS: 85.6 (DL/UL)
SIM Card Support NB-IoT: NB Specific
Cat-M/GPRS/EDGE: Normal SIM
Applicable Region Global

GNSS

Satellite Systems GPS, BeiDou, GLONASS
Receiver Type 16-channel, C/A Code
Sensitivity Tracking: -162 dBm (GPS), -157 dBm (GLONASS)
Cold Start: -148 dBm
Time-To-First-Fix Cold: <35s, Hot: <1s
Accuracy Position: <2.5m CEP

Other

Power Supply 5V
Operating Voltage 3.3V (default) / 5V
Sleep Mode Current 1.2mA (@DRX=2.56s)
Power Save Mode Current 9µA
Operating Temperature -40°C ~ 85°C
Storage Temperature -45°C ~ 90°C
Dimensions 30.2mm x 65mm

Pinout:

SIM7000G HAT Pinout

SIM7000G HAT Intro

Pin Description
1 SIM7000G Module
2 SPX29302 Power Chip
3 RT9193-33 Power Chip
4 Raspberry Pi GPIO Header
5 USB Interface for AT Commands, GPS, etc.
6 SIM7000G Control Interface (for Arduino/STM32)
7 SIM Card Slot (1.8V/3V)
8 GNSS Antenna Connector
9 LTE Antenna Connector
10 Network Status Indicator
11 Power Indicator
12 Operating Voltage Jumper (A: 5V, B: 3.3V default)
13 DTR Jumper (A: controlled by Pi P26, B: NC default)
14 PWR Jumper (A: Pi P4 control, B: auto startup default)

SIM7000G HAT Dimensions
