Solar Power Manager 10000mAh Li-Po Battery With 6V~24V Solar Panel Support
The Solar Power Manager B is a versatile and reliable device for converting solar energy into usable power. Compatible with 6V~24V solar panels, it can recharge its embedded 10000mAh 3.7V Li-po battery via solar panel or USB TYPE-C connection, delivering 5V/3A output with support for multiple protocols (PD/QC/FCP/PE/SFCP). Featuring MPPT technology and multi-protection circuits, it ensures maximum efficiency, stability, and safety for solar-powered, low-power IoT, and environmental projects.
Package Includes:
- 1 x Solar Power Manager (B)
- 1 x DC Male Adapter
Features:
- MPPT technology to optimize solar panel efficiency
- Flexible charging options: solar panel and USB TYPE-C
- Compatible with 6V~24V solar panels via DC-002 jack or screw terminal
- Onboard MPPT SET switch for improved charging efficiency
- Aluminum electrolytic and SMD ceramic capacitors for stable performance with reduced ripple
- PH2.0 battery connector and embedded 10000mAh 3.7V Li-po battery
- LED indicators for solar panel and battery monitoring
- Multiple protection circuits: overcharge, over-discharge, reverse-proof, overheat, overcurrent
Specifications:
| SOLAR IN | 6V ~ 24V (18V default) |
| RECHARGING | Solar panel, power adapter, USB |
| BATTERY | 3.7V 10000mAh Li-po battery |
| USB INPUT | 5V TYPE-C (PD quick charge support) |
| 5V OUTPUT | 5V/3A (USB-OUT, TYPE-C) |
| Recharging Cutoff Voltage | 4.2V ± 1% |
| Over-Discharging Protection | 3.0V ± 1% |
| Solar Panel Recharging Efficiency | ~78% |
| USB Recharging Efficiency | ~93% |
| Battery Boost Output Efficiency | ~90% |
| Quiescent Current (Max) | <2mA |
| Case | Metal |
| Operating Temperature | -40℃ ~ 85℃ |
| Dimensions | 108.0 × 71.0 × 25.2 mm |
| Weight | 0.29 kg |

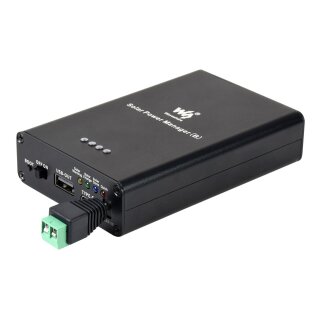

Product Image:
On-Board Features:
- Solar Panel Input: Recharge via DC-002 jack or screw terminal
- TYPE-C Recharging/Output Port: Supports 5V adapter, PD protocol, and PD/QC/FCP/PE/SFCP output
- USB Output Port: 5V/3A regulated output, supports PD/QC/FCP/PE/SFCP output
- Battery Controls: Battery on/off switch, BOOT button, quick charge indicator
- Solar Panel Status Indicators: Solar Warning, Solar Charge, Solar Done
- Battery Life Indicators: Monitors battery status
Outline Dimensions:
