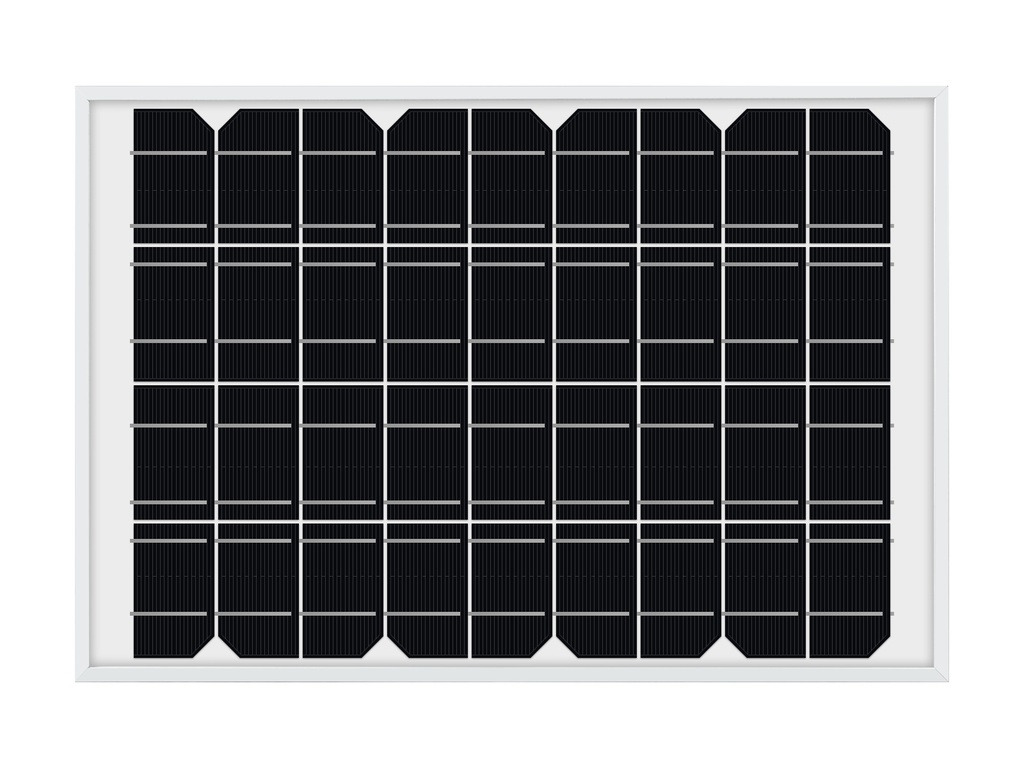

Solar Panel Polysilicon 340x232mm (18V 10W)
This solar panel features advanced polysilicon cells delivering a maximum power output of 10 Wp with ±3% power tolerance. It achieves a high conversion efficiency above 20%, operating at 17.6 V and 0.57 A, with an open-circuit voltage of 21.6 V and a short-circuit current of 0.61 A. The panel consists of 36 cells arranged in a 4x9 configuration and is suitable for systems with a maximum voltage of 1000 V. Built to withstand extreme conditions, it operates between -40℃ and +85℃ and can endure wind pressures up to 30 m/s (200 kg/sq.m). The anodic oxidation aluminum alloy frame ensures long-lasting durability. For convenience, it includes a 90 cm cable with a DC plug (OD: 3.5 mm, ID: 1.35 mm). Compact and lightweight, the panel measures 340 × 232 × 17 mm and weighs 0.935 kg.
Package Includes:
- 1 x Solar Panel (18V 10W)
Features:
- Solar Cell Type: Polysilicon for efficient energy conversion
- Maximum Power Output: 10 Wp
- Output Power Tolerance: ±3%
- Conversion Efficiency: >20%
- Operating Voltage: 17.6 V
- Operating Current: 0.57 A
- Open Circuit Voltage: 21.6 V
- Short Circuit Current: 0.61 A
- Cell Quantity: 36 (4×9 configuration)
- Standard System Voltage: 1000 V (Max)
- Operating Temperature: -40℃ to +85℃
- Pressure on Panel: 30 m/s (200 kg/sq.m) max
- Cable: 90 cm with DC plug (OD: 3.5 mm, ID: 1.35 mm)
- Frame Material: Anodic oxidation aluminum alloy
- Dimensions: 340 × 232 × 17 mm
- Weight: 0.935 kg
Specifications:
| Solar Cell Type | Polysilicon |
|---|---|
| Power | 10 Wp (Max) |
| Output Power Tolerance | ±3% |
| Conversion Efficiency | >20% |
| Operating Voltage | 17.6 V |
| Operating Current | 0.57 A |
| Open Circuit Voltage | 21.6 V |
| Short Circuit Current | 0.61 A |
| Cell Quantity | 36 (4×9) |
| Standard System Voltage | 1000 V (Max) |
| Operating Temperature | -40℃ ～ +85℃ |
| Pressure on Panel | 30 m/s (200 kg/sq.m) |
| Cable | Length 90 cm, DC plug OD 3.5 mm ID 1.35 mm |
| Frame Material | Anodic oxidation aluminum alloy |
| Dimensions | 340 × 232 × 17 mm |
| Weight | 0.935 kg |
Highlights
Conversion Efficiency >20%: Polysilicon solar panel with widened chips for larger light-receiving area.
High Strength Frame: Anodic oxidation aluminum alloy, multi-layer structure, waterproof and durable.
Outline Dimensions:
