Raspberry Pi Pico RP2040-Zero Mini Version

Raspberry Pi Pico RP2040-Zero Mini Version

The RP2040-Zero board is a compact version of the Raspberry Pi boards, built around the RP2040 microcontroller chip. It features a dual-core Arm Cortex M0+ processor running at up to 133 MHz, 264KB of SRAM, and 2MB of onboard Flash memory. Equipped with a USB-C connector for convenience, the board also supports castellated modules for direct soldering to carrier boards. Additional features include USB 1.1 with device and host support, low-power modes, drag-and-drop programming, and 29 multifunction GPIO pins. It also provides rich peripheral support with multiple SPI, I2C, UART, ADC, PWM channels, and programmable I/O state machines.

Package Includes:

  • 1 x RP2040-Zero

35.00 AED 35.00 AED Tax Included
35.00 AED Tax Included

Not Available For Sale

This combination does not exist.

RPi Pico
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • RP2040 microcontroller chip (designed by Raspberry Pi, UK)
  • Dual-core Arm Cortex M0+ processor, clock up to 133 MHz
  • 264KB SRAM and 2MB onboard Flash memory
  • USB-C connector for modern connectivity
  • Castellated module for direct soldering to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming via USB mass storage
  • 29 multifunction GPIO pins (20 edge pinout + additional solder points)
  • 2 x SPI, 2 x I2C, 2 x UART
  • 4 x 12-bit ADC
  • 16 controllable PWM channels
  • On-chip accurate clock and timer
  • On-chip temperature sensor
  • Accelerated floating-point libraries
  • 8 programmable I/O state machines for custom peripherals

Software Support:

C/C++ and MicroPython supported with a comprehensive SDK, development resources, and tutorials.

Images:

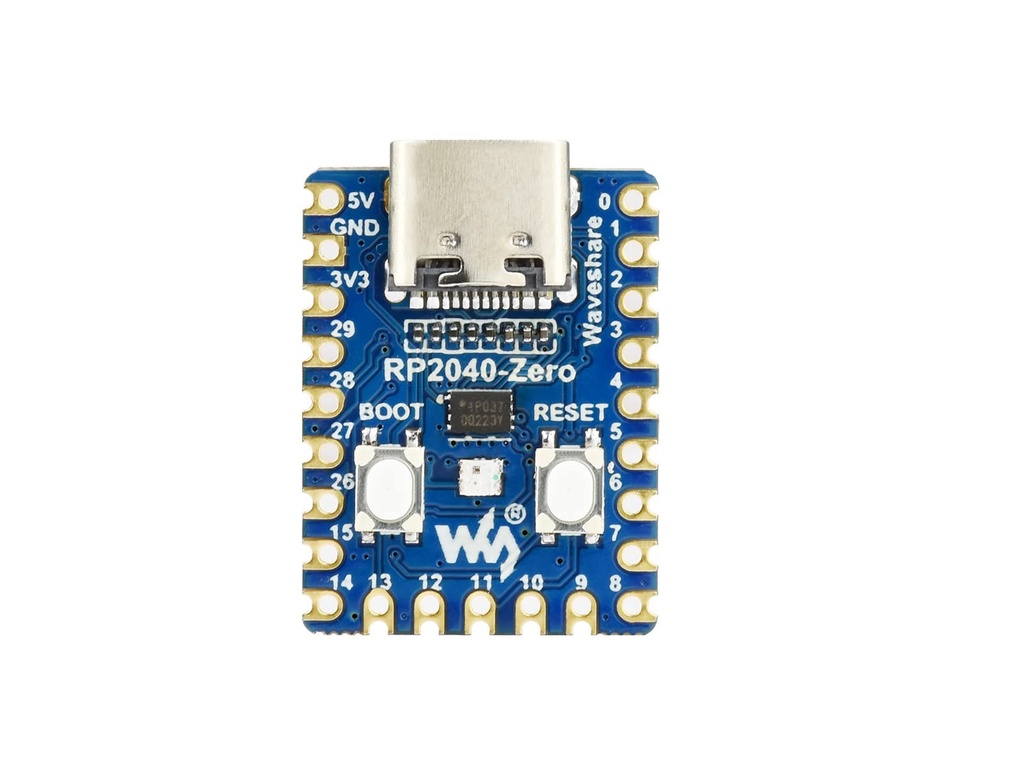

RP2040-Zero Board

Pinout of the Board:

Configurable pin functions allow flexible development and integration.

RP2040-Zero Pinout

On-Board Map:

RP2040-Zero Onboard Map

  1. USB Type-C connector
  2. W25Q16JVUXIQ, 2MB NOR-Flash
  3. BOOT button – press during reset to enter download mode
  4. RESET button
  5. WS2812 RGB LED
  6. ME621 LDO regulator, max current 800mA
  7. RP2040 dual-core processor, up to 133MHz
  8. RP2040 pins – 10x solder points (9 usable as GPIO)

Dimensions:

RP2040-Zero Dimensions
