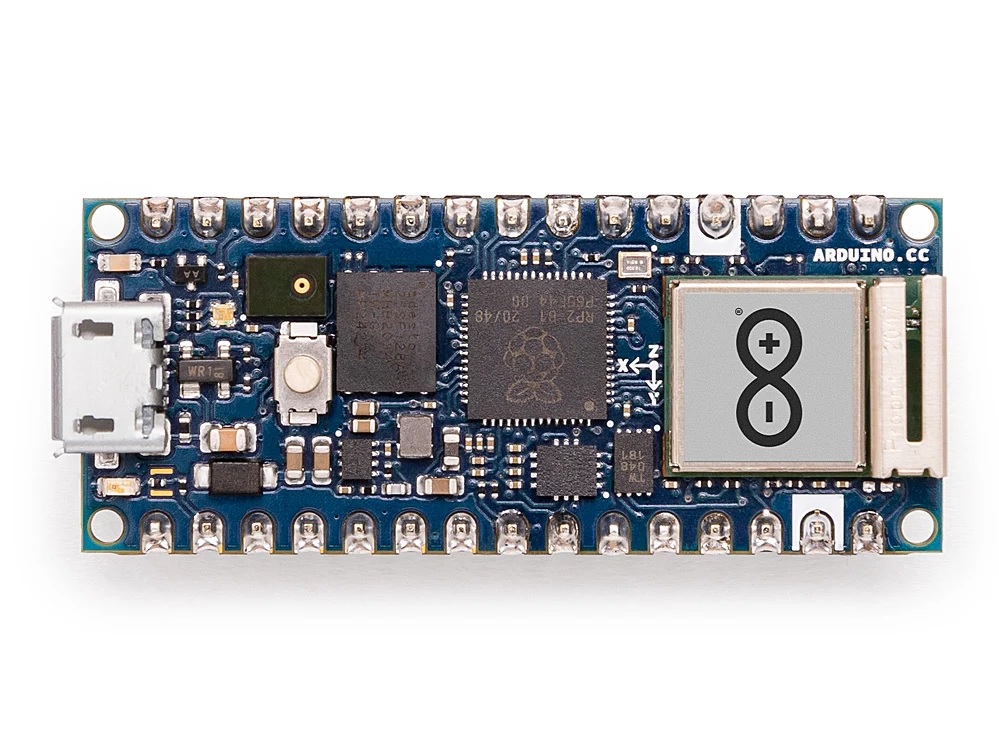

Arduino Nano RP2040 Connect With Headers
The Arduino Nano RP2040 Connect is a compact and powerful board based on the RP2040 microcontroller. It offers a wide range of features, making it suitable for numerous projects and applications. Notably, it includes built-in wireless connectivity (Wi-Fi and Bluetooth), an onboard microphone, and a 6-axis intelligent motion sensor with AI capabilities.
Package Includes
- 1 x Arduino Nano RP2040 Connect (with headers)
Features
- Based on the RP2040 microcontroller
- Built-in Wi-Fi (802.11b/g/n) and Bluetooth 4.2 wireless connectivity
- Onboard microphone for sound and voice activation
- 6-axis intelligent motion sensor with AI capabilities
- 22 GPIO ports for controlling relays, motors, LEDs, switches, and sensors
- 16MB flash memory for storing large programs and data
- USB-C connector for programming and power supply
- Multiple power options: USB, external supply, or battery
- 3.3V onboard voltage regulator for external devices
- Onboard RGB LED and reset button
- Pre-soldered headers for easy connectivity
- Compatible with Arduino IDE and other development environments
- Ideal for home automation, robotics, sensor systems, and more
Specifications
| Feature | Specification |
|---|---|
| Microcontroller | RP2040 |
| Wireless Connectivity | Wi-Fi (802.11b/g/n), Bluetooth 4.2 |
| Microphone | Yes |
| 6-axis Motion Sensor | Yes, with AI capabilities |
| GPIO Pins | 22 |
| Flash Memory | 16MB |
| USB Connectivity | USB-C connector |
| Power Options | USB, external power supply, or battery |
| On-board Voltage Regulator | 3.3V |
| RGB LED | Yes |
| Reset Button | Yes |
| Headers | Yes (pre-soldered) |
| Development Environment | Arduino IDE and others |
| Dimensions | 18mm x 45mm |
Pinout
- Digital Pins: For digital input/output, communicating with devices via I2C, SPI, etc.
- Analog Pins: For reading analog sensors (potentiometers, light/temperature sensors).
- Power Pins: Includes Vcc, GND, and VBAT for powering the board and peripherals.
- Communication Pins: USB, UART, I2C, SPI for connecting to external devices.
Applications
- Home automation and control
- Robotics and mechatronics
- Data logging and monitoring
- Sensor and actuator control
- Musical instruments and audio processing
- LED lighting and display systems
- RC vehicles and drone control
- Industrial control and automation
- Weather station and environmental monitoring
- Agriculture and irrigation control
- Aquaponics and hydroponics control
- Educational projects and workshops
