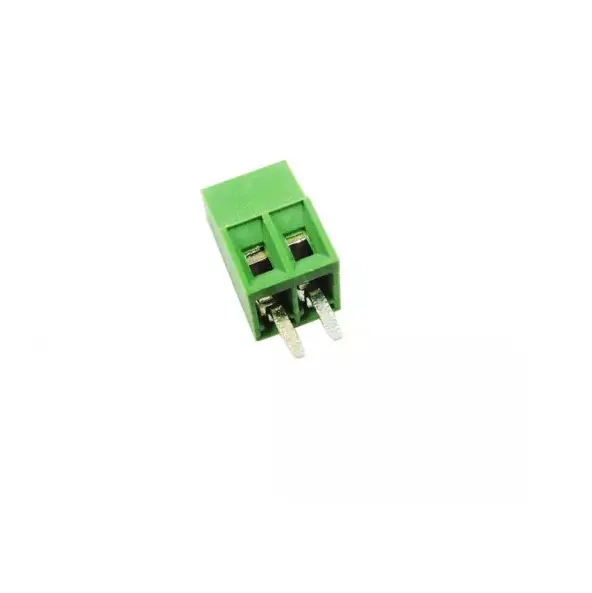

Connector Screw Terminal 2.54mm Pitch (2-Pin Sparkfun)

Connector Screw Terminal 2.54mm Pitch (2-Pin Sparkfun)

These are simple 2-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, they can accept 30 to 18AWG wires. The 2.54mm pitch is compatible with standard 0.1" perf boards, making them ideal for prototyping and reliable wire-to-board connections.

Package Includes:

  • 1 x 2-Position Screw Terminal (2.54mm Pitch)

7.75 AED 7.75 AED Tax Included
7.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Electrical:
    • Voltage Rating: 150V AC
    • Current Rating: 6 Amps/way max
    • Contact Resistance: 20 mΩ max
    • Insulation Resistance: 1000 MΩ / 1000V
    • Withstanding Voltage: 1000V AC (1 minute)
    • Test Time: 60 sec / 1 PCS
    • Wire Range: 18–30 AWG
  • Mechanical:
    • Operating Temperature: -33°C to +105°C
    • Torque: 1.0 kgf·cm / M1.6
    • Soldering Reliability: 250°C ±10°C, 5 seconds max
  • Material:
    • Contact: Copper Alloy, Nickel Plated
    • Terminal Screw: Steel, Galvanized with Cr3+ Plated
    • Solder Pin: Copper Alloy, Tin Plated
    • Insulator: Polyamide (Glass Filled) UL94V-0, Green
  • Compliance:
    • RoHS Compliant
