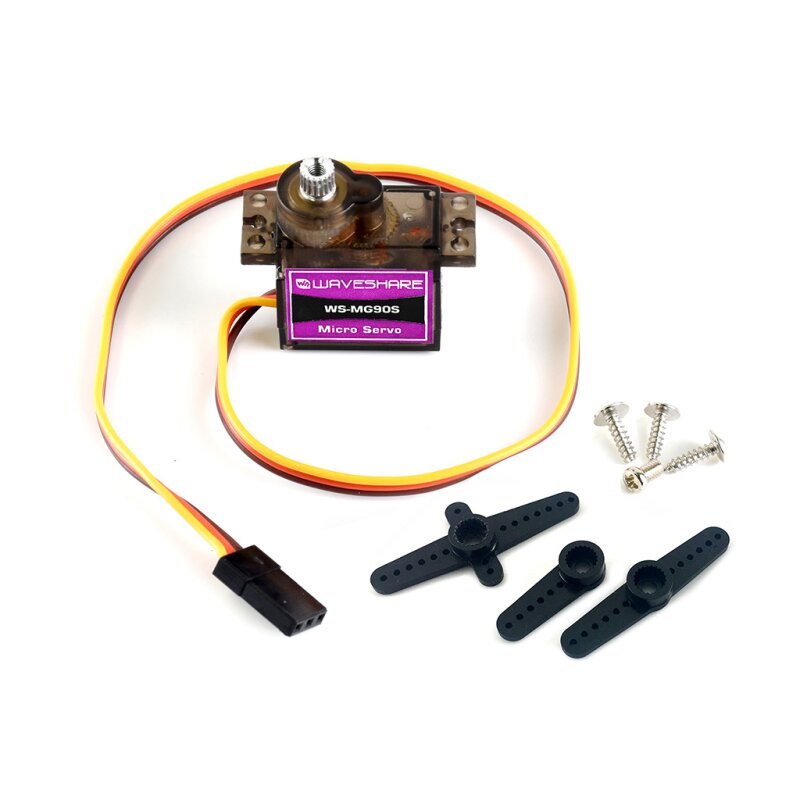

Servo Motor MG90s Metal Gear High Torque (Waveshare)

The MG90S Servo is a high-performance servo motor designed for precision, speed, and durability. With impressive torque and fast response times, it is ideal for a wide range of applications. Offering up to 2.0kg/cm at 4.8V and 2.8kg/cm at 6V, along with quick speeds of 0.11s/60° at 4.8V and 0.09s/60° at 6V, this servo ensures reliable performance. Featuring a 180° rotation angle, durable metal gears, and a compact lightweight design, the MG90S Servo is well-suited for small-scale projects where space is limited. Its 22.8mm × 12.2mm × 28.5mm size makes installation easy even in tight enclosures.

Package Includes:

1 x Servo Motor MG90S Metal Gear High Torque (Waveshare)

Small Servo

29.00 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

High torque: 2.0kg/cm at 4.8V and 2.8kg/cm at 6V for versatile applications.
Fast speed: Quick response with 0.11s/60° at 4.8V and 0.09s/60° at 6V.
Wide rotation angle: 180° for a broad range of movement.
Versatile voltage range: Operates between 4.8V to 6V for compatibility with various power sources.
Durable metal gears: Ensures long-lasting performance and reliability.
Low dead band: 5us for precise and accurate movements.
Lightweight and compact: Weighs only 12.2g, with a small form factor of 22.8mm × 12.2mm × 28.5mm.
Perfect for small projects: Optimized for tight spaces and compact builds.

Specifications:

Product: MG90S Servo
Torque: 2.0kg/cm (4.8V), 2.8kg/cm (6V)
Speed: 0.11s/60° (4.8V), 0.09s/60° (6V)
Rotation Angle: 180°
Operating Voltage: 4.8V ~ 6V
Gear: Metal
Dead Band: 5us
Weight: 12.2g (0.016kg)
Dimensions: 22.8mm × 12.2mm × 28.5mm
